Driver Side Seat Memory Switch Circuit: Wiring Diagram

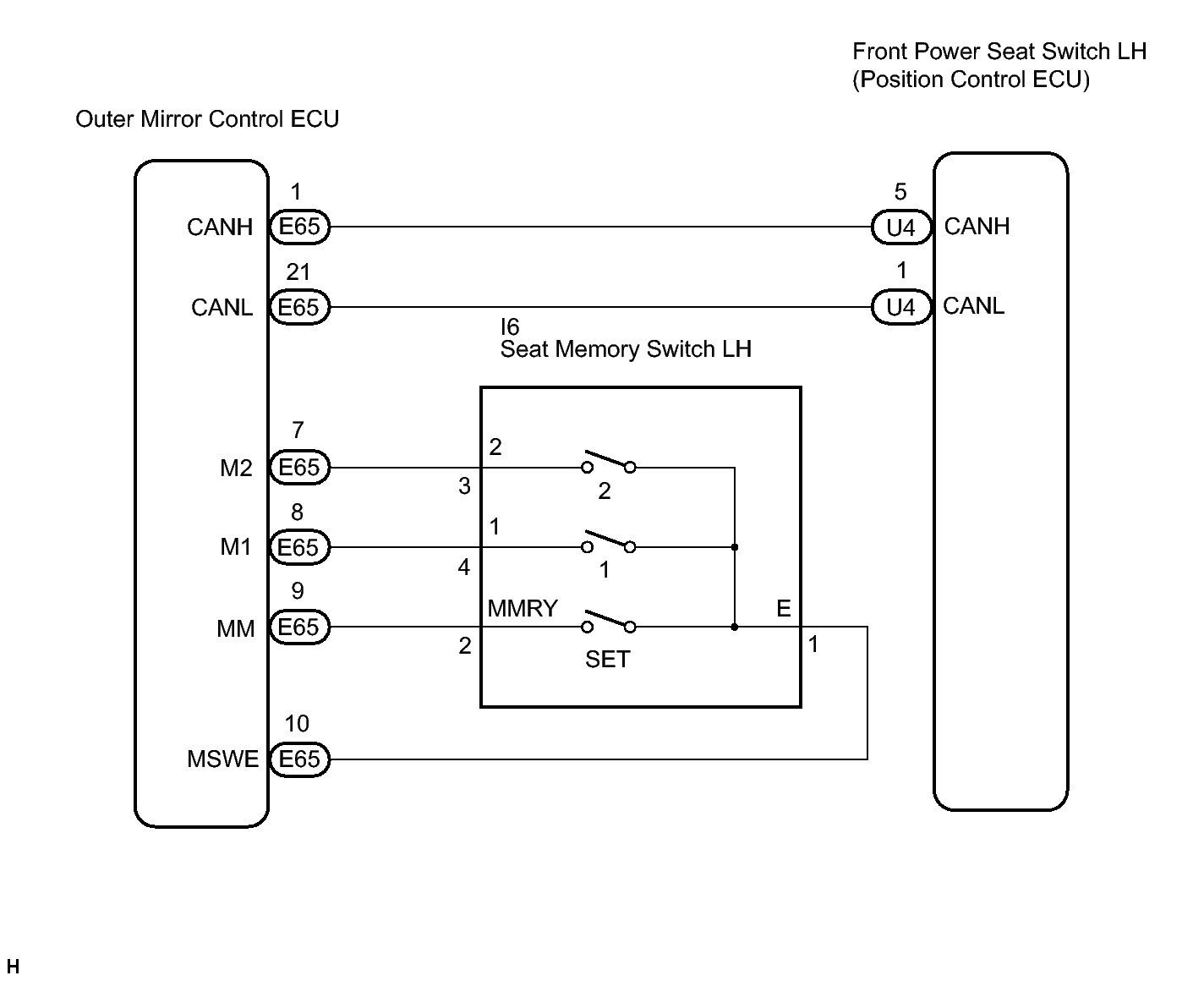

Fig 1: Driver Side Seat Memory Switch Circuit - Wiring Diagram

GTY118829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
