Driver Side ECU Power Source Circuit: Wiring Diagram

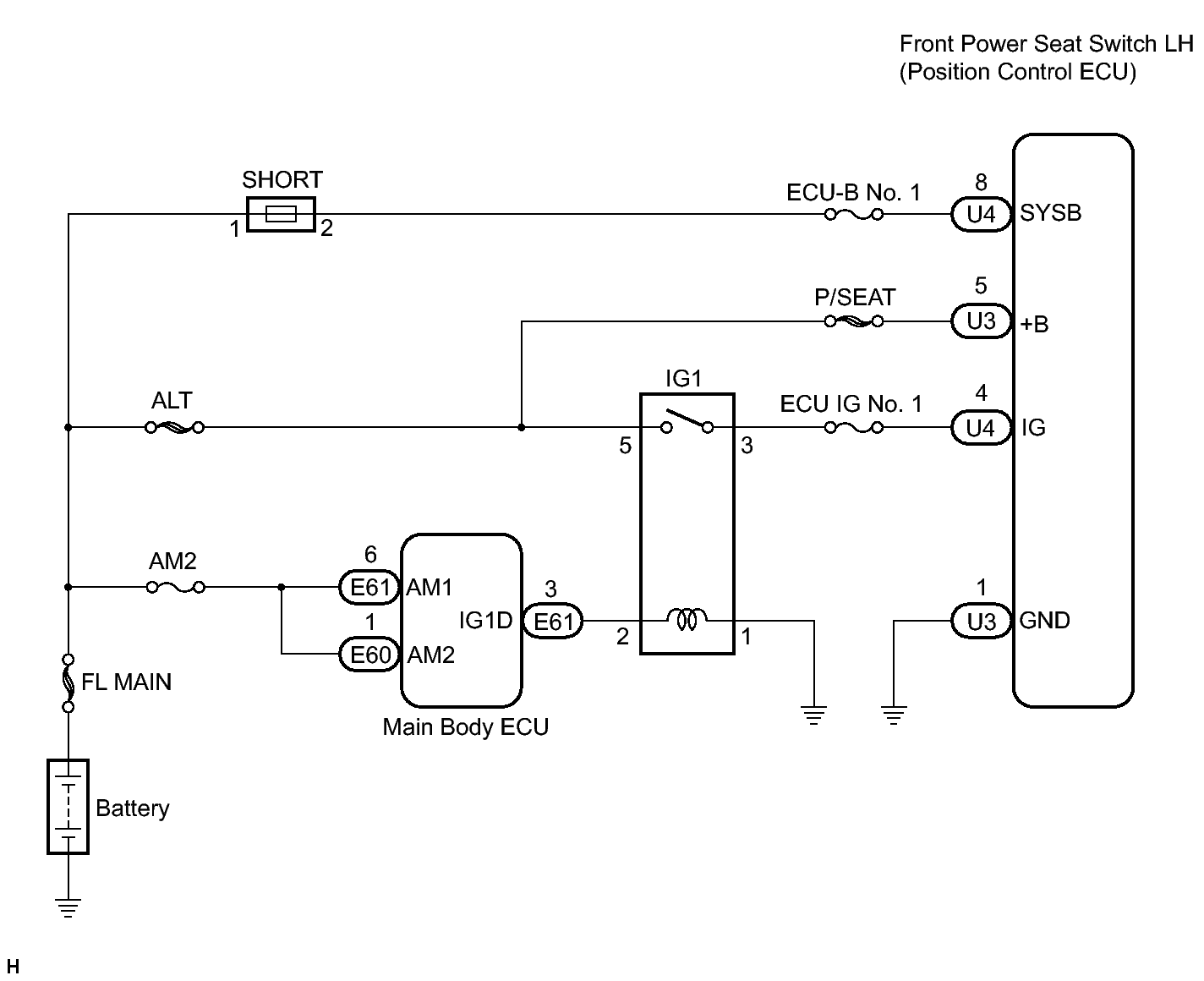

Fig 1: Driver Side ECU Power Source Circuit - Wiring Diagram

GTY133510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
