Navigation ECU Communication Stop Mode: Wiring Diagram

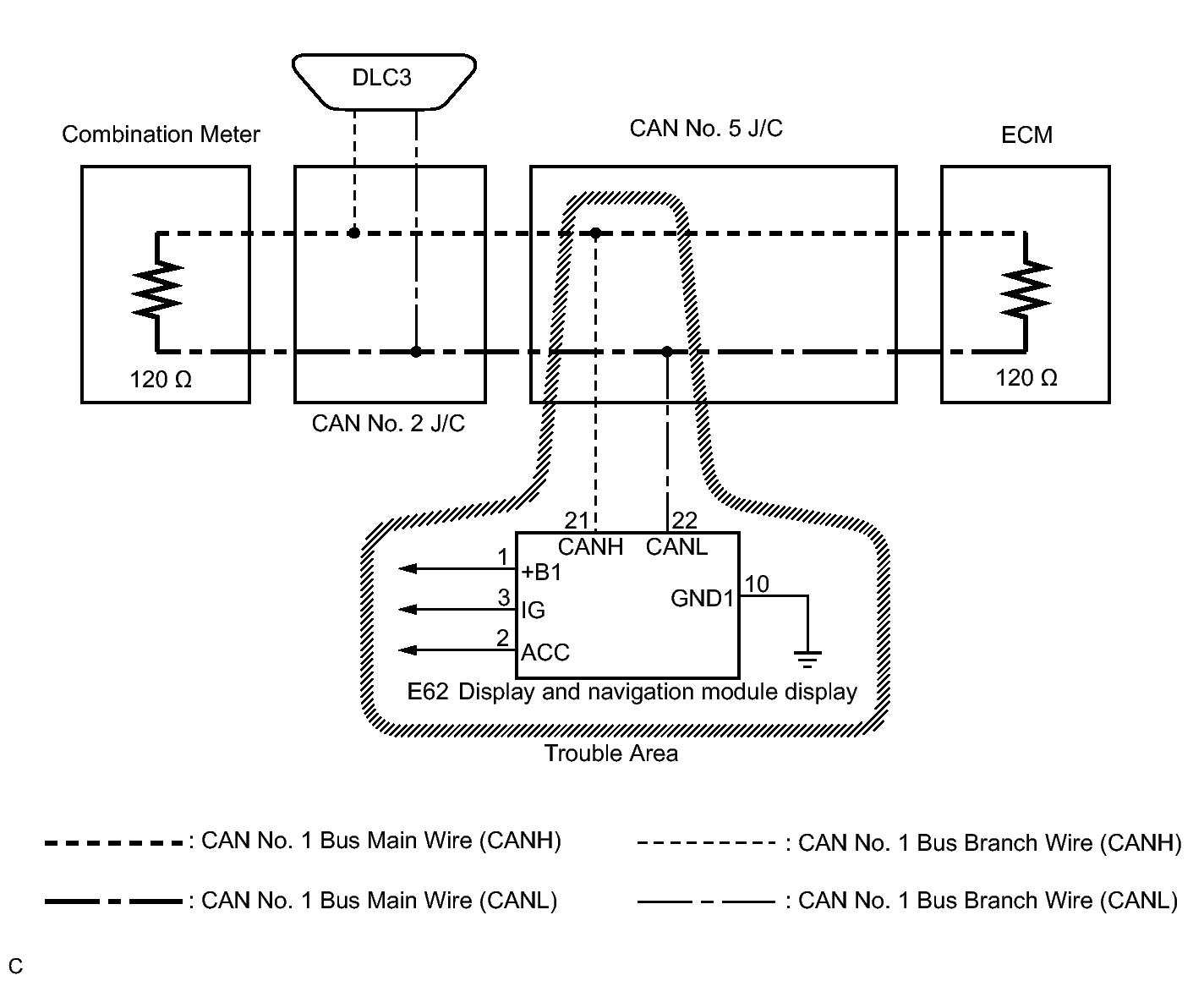

Fig 1: Identifying Navigation ECU Communication Stop Mode Wiring Diagram

GTY350147

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
