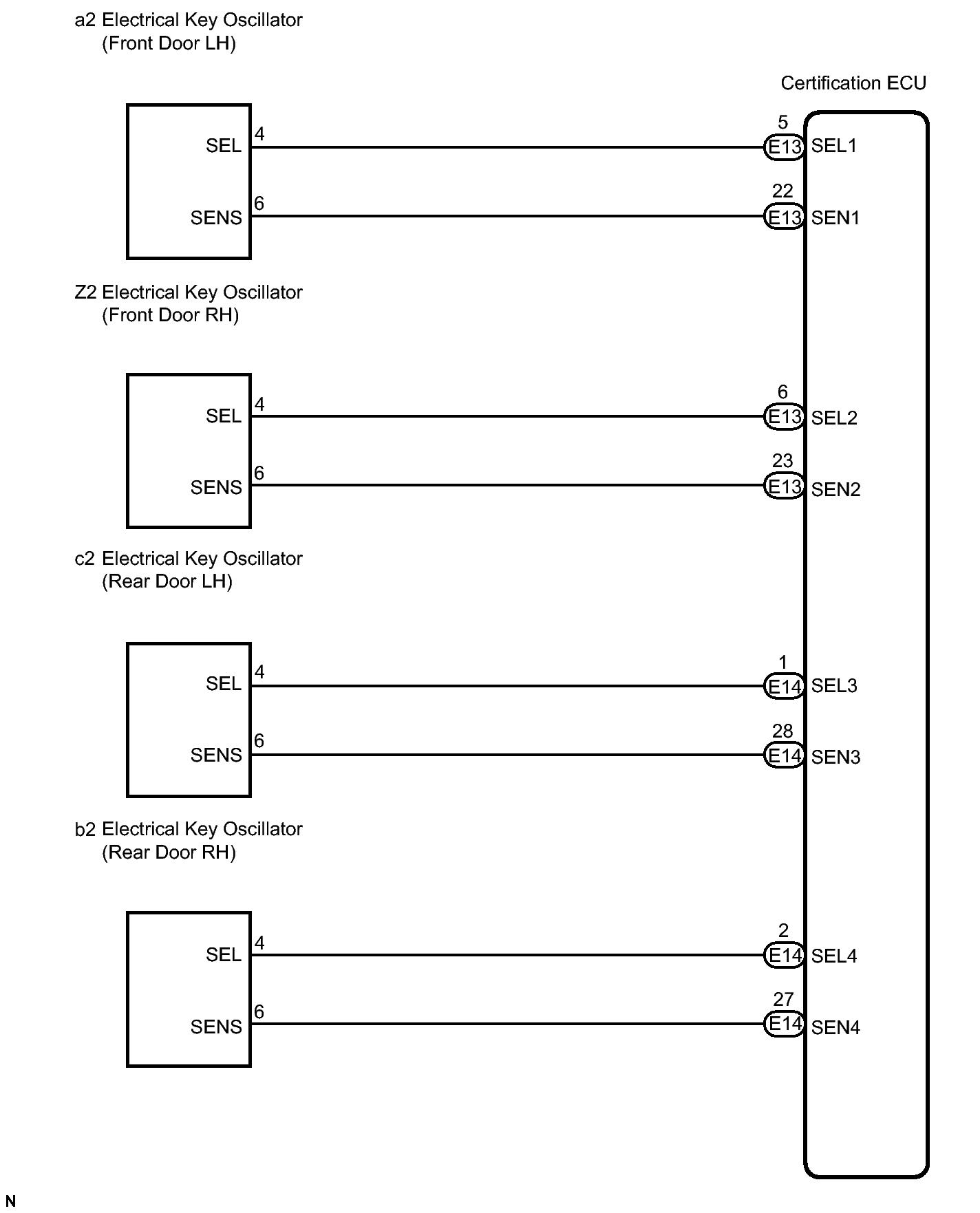

Home >> Lexus >> 2011 >> ES 350 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Smart Access System (Keyless Entry) (Diagnostic Codes & Circuit Tests) >> Smart Access System With Push-Button Start >> Circuit Tests >> Touch Sensor Circuit >> Wiring Diagram
