Door Oscillator Circuit: Procedure

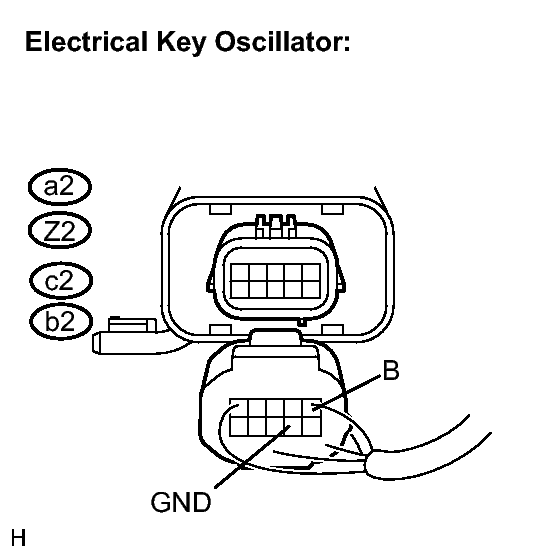

- INSPECT ELECTRICAL KEY OSCILLATOR
- Disconnect the oscillator connectors.
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Front LH side
Front RH side
Rear LH side
Rear RH side
Tester Connection (Symbols) Condition Specified Condition a2-1 (B) - a2-7 (GND) Always 10 to 14 V Tester Connection (Symbols) Condition Specified Condition Z2-1 (B) - Z2-7 (GND) Always 10 to 14 V Tester Connection (Symbols) Condition Specified Condition c2-1 (B) - c2-7 (GND) Always 10 to 14 V Tester Connection (Symbols) Condition Specified Condition b2-1 (B) - b2-7 (GND) Always 10 to 14 V
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step

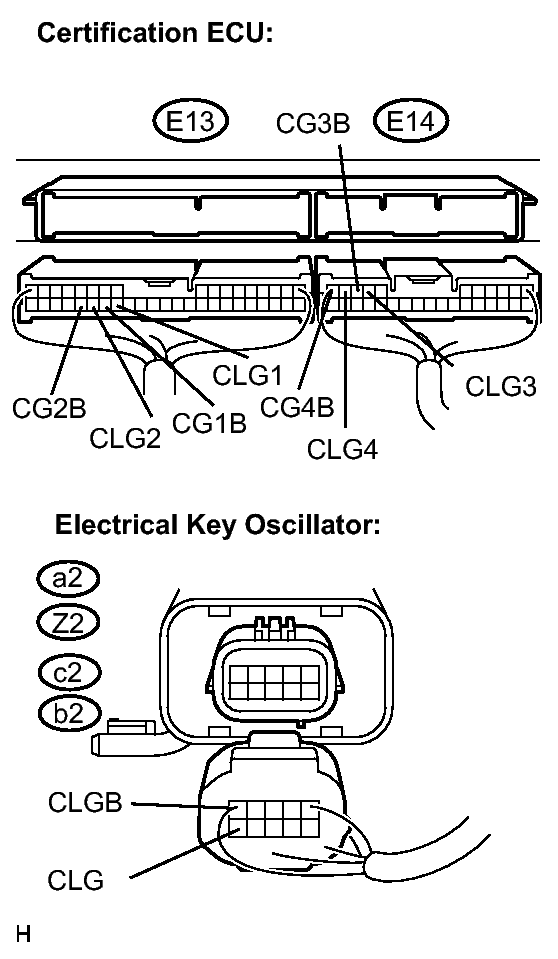

- CHECK HARNESS AND CONNECTOR (ELECTRICAL KEY OSCILLATOR - CERTIFICATION ECU)
- Disconnect the E13 and E14 ECU connectors.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Front LH side
Front RH side
Rear LH side
Rear RH side
Tester Connection (Symbols) Condition Specified Condition E13-33 (CLG1) - a2-10 (CLG) Always Below 1 Ω E13-34 (CG1B) - a2-5 (CLGB) Always Below 1 Ω E13-33 (CLG1) - Body ground Always 10 kΩ or higher E13-34 (CG1B) - Body ground Always 10 kΩ or higher Tester Connection (Symbols) Condition Specified Condition E13-35 (CLG2) - Z2-10 (CLG) Always Below 1 Ω E13-36 (CG2B) - Z2-5 (CLGB) Always Below 1 Ω E13-35 (CLG2) - Body ground Always 10 kΩ or higher E13-36 (CG2B) - Body ground Always 10 kΩ or higher Tester Connection (Symbols) Condition Specified Condition E14-8 (CLG3) - c2-10 (CLG) Always Below 1 Ω E14-9 (CG3B) - c2-5 (CLGB) Always Below 1 Ω E14-8 (CLG3) - Body ground Always 10 kΩ or higher E14-9 (CG3B) - Body ground Always 10 kΩ or higher Tester Connection (Symbols) Condition Specified Condition E14-10 (CLG4) - b2-10 (CLG) Always Below 1 Ω E14-11 (CG4B) - b2-5 (CLGB) Always Below 1 Ω E14-10 (CLG4) - Body ground Always 10 kΩ or higher E14-11 (CG4B) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK AND REPLACE ELECTRICAL KEY OSCILLATOR (CHECK OPERATION OF OSCILLATOR)
- Replace the door oscillator.
- Check that the entry LOCK/UNLOCK function operates normally.
OK
Entry LOCK/UNLOCK function operates normally.
OK → END (ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)
NG: Go to next step
- PERFORM ACTIVE TEST USING TECHSTREAM (CERTIFICATION ECU OUTPUT SIGNAL)
- Reconnect the ECU and the oscillator connectors.
- Connect Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the tester on.
- Enter the following menus: Body Electrical/Smart Access/Active Test.
- Perform the Active Test according to the display on the tester.SMART ACCESS:

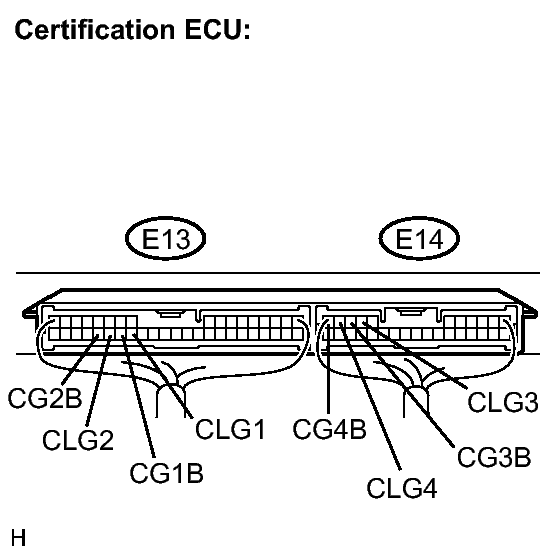

Tester Display Test Part Control Range Diagnostic Note D Transmitter Driver door electrical key oscillator ON/OFF - P Transmitter Passenger door electrical key oscillator ON/OFF - DR Transmitter Rear door electrical key oscillator RH ON/OFF - PR Transmitter Rear door electrical key oscillator LH ON/OFF - - Measure the frequency according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard
Front LH side
Front RH side
Rear LH side
Rear RH side
Tester Connection (Symbols) Condition Specified Condition E13-33 (CLG1) - E13-34 (CG1B) During Active Test Frequency is generated (higher than 0 Hz) Tester Connection (Symbols) Condition Specified Condition E13-35 (CLG2) - E13-36 (CG2B) During Active Test Frequency is generated (higher than 0 Hz) Tester Connection (Symbols) Condition Specified Condition E14-8 (CLG3) - E14-9 (CG3B) During Active Test Frequency is generated (higher than 0 Hz) Tester Connection (Symbols) Condition Specified Condition E14-10 (CLG4) - E14-11 (CG4B) During Active Test Frequency is generated (higher than 0 Hz)
NG → REPLACE CERTIFICATION ECU
OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
