Certification ECU Power Source Circuit: Wiring Diagram

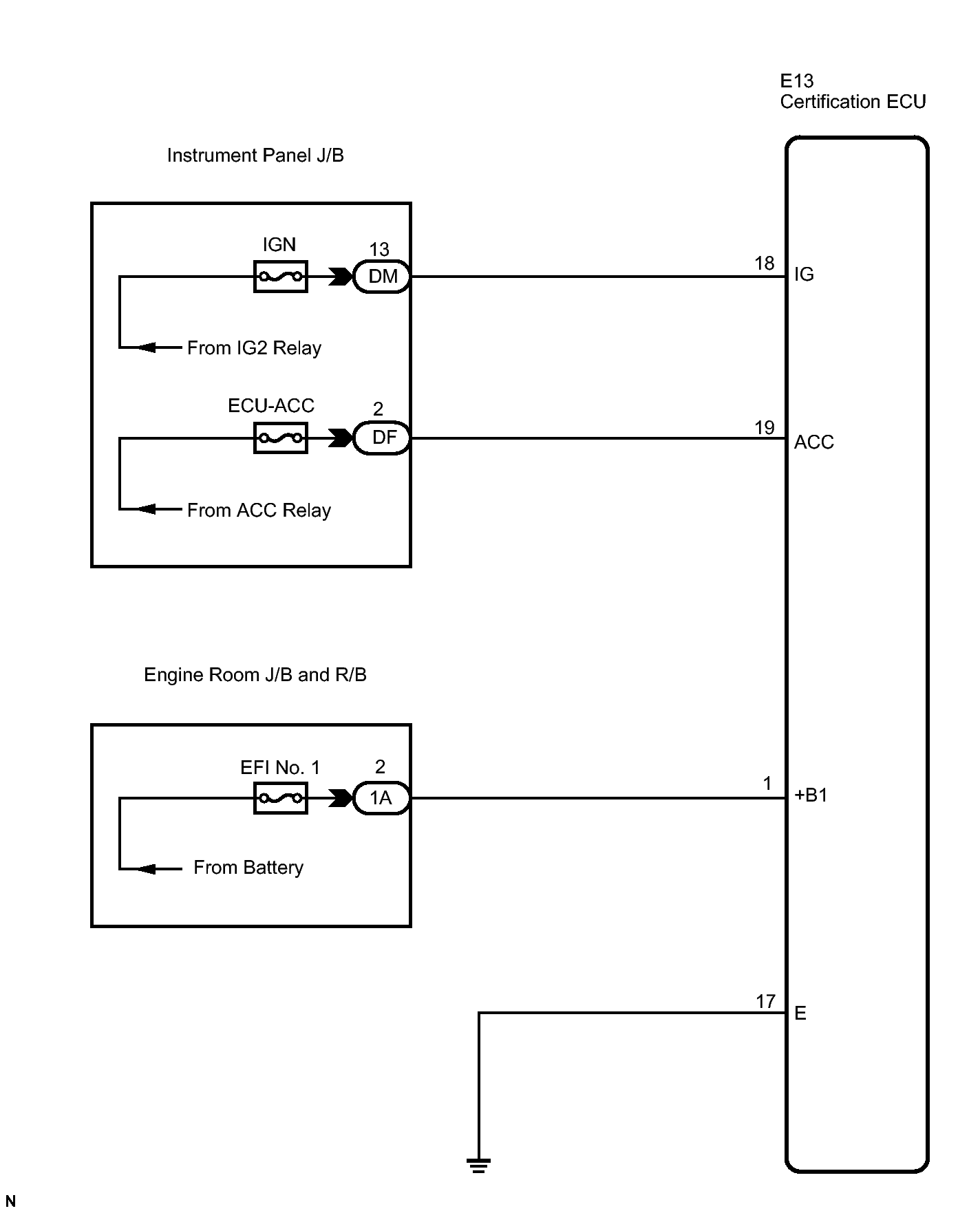

Fig 1: Certification ECU Power Source - Wiring Diagram

GTY135199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
