Brake Pedal Stroke Sensor: Components: Illustration

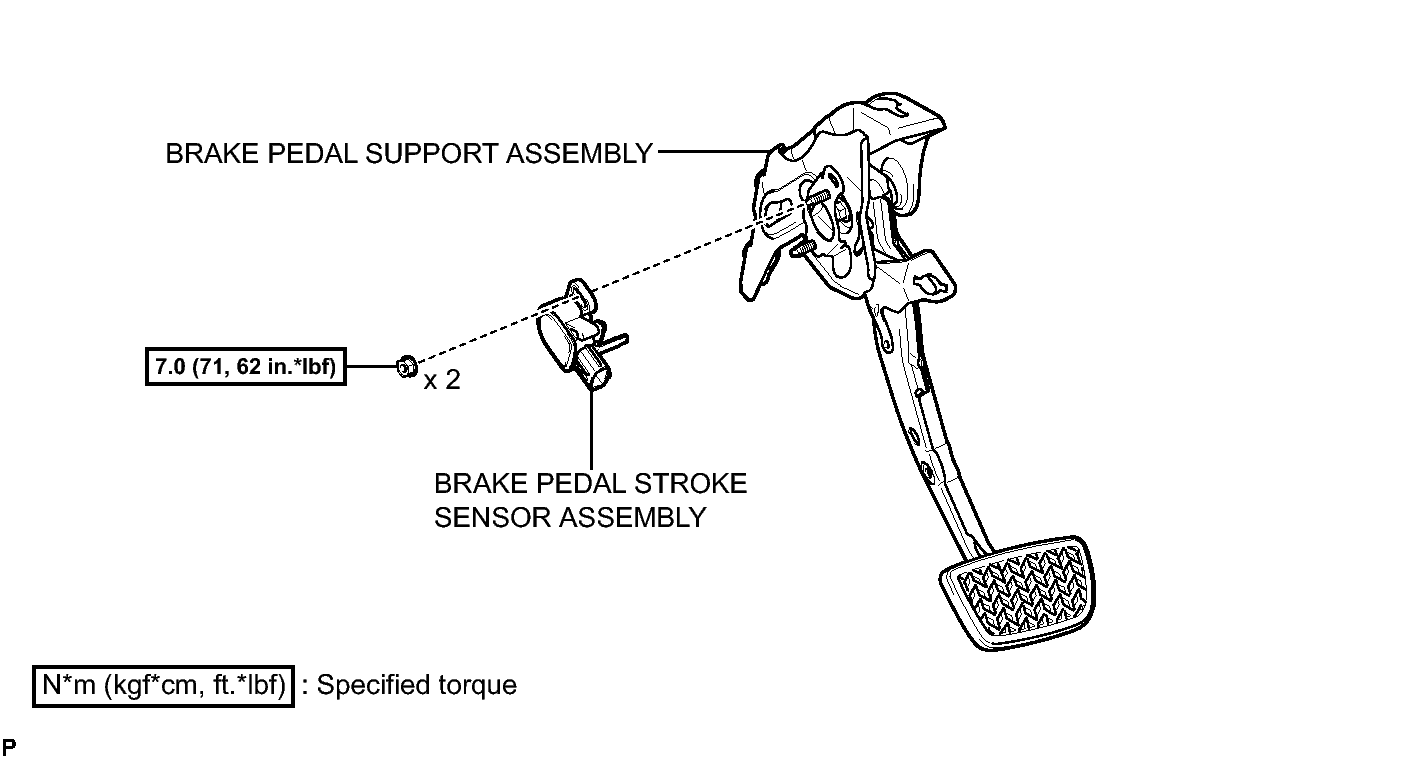

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components With Torque Specifications

GTY360118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
