Lexus
>>
2011
>>
CT 200h
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Door Lock System (Service Information)
>>
Door Control Transmitter
>>
Components
>>
Illustration
Door Control Transmitter: Components: Illustration

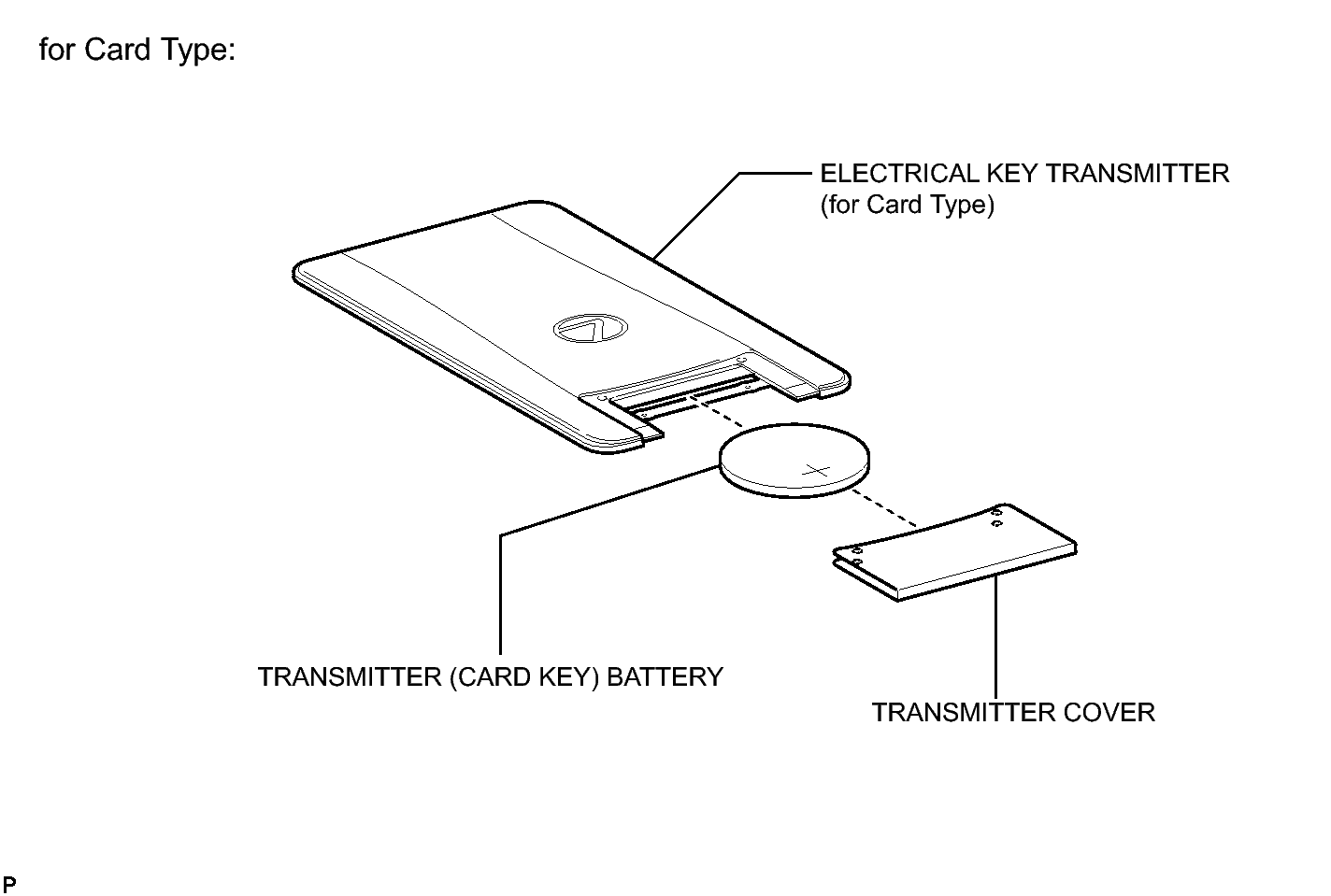

Fig 1: Identifying Door Control Transmitter Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

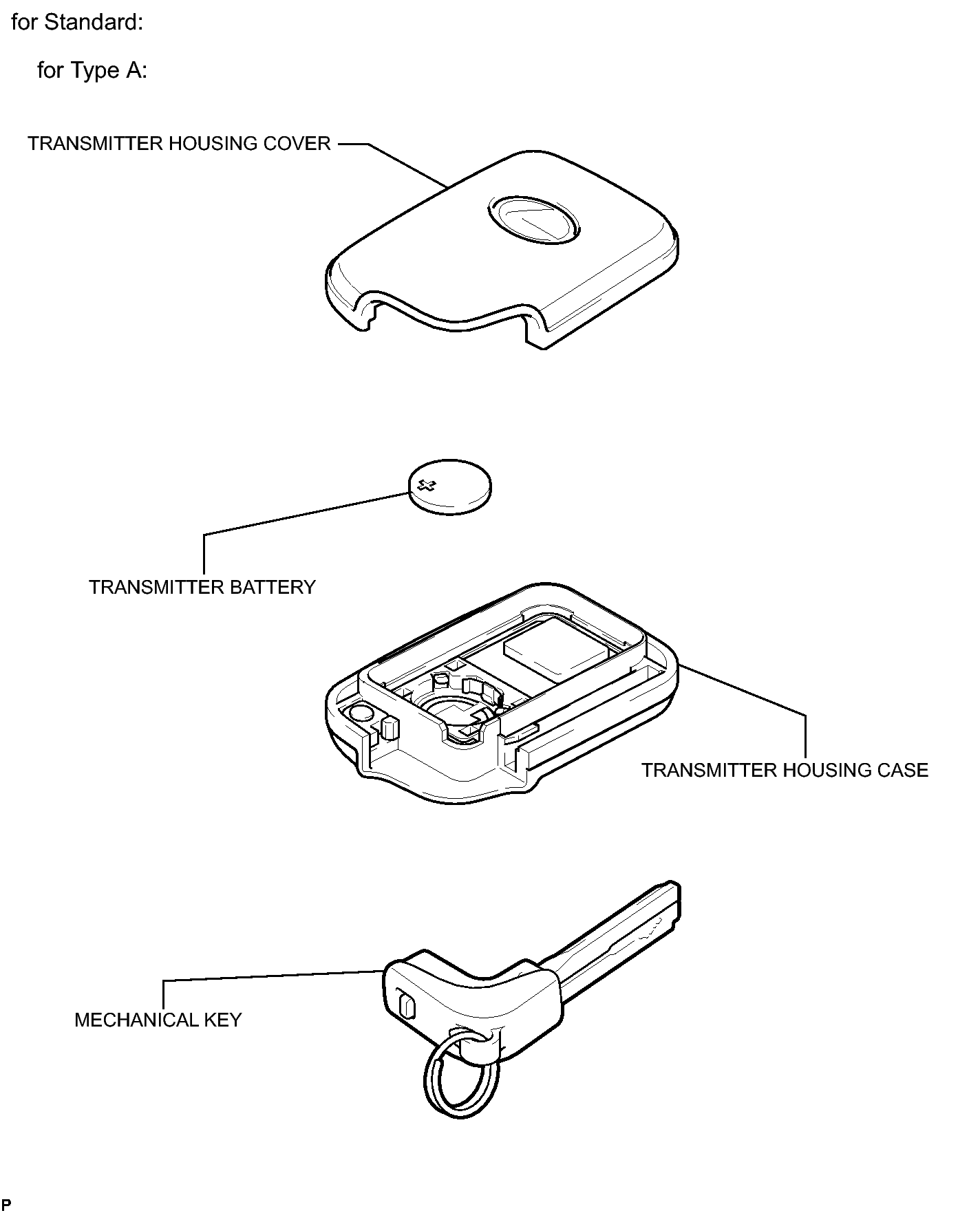

Fig 1: Identifying Door Control Transmitter Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

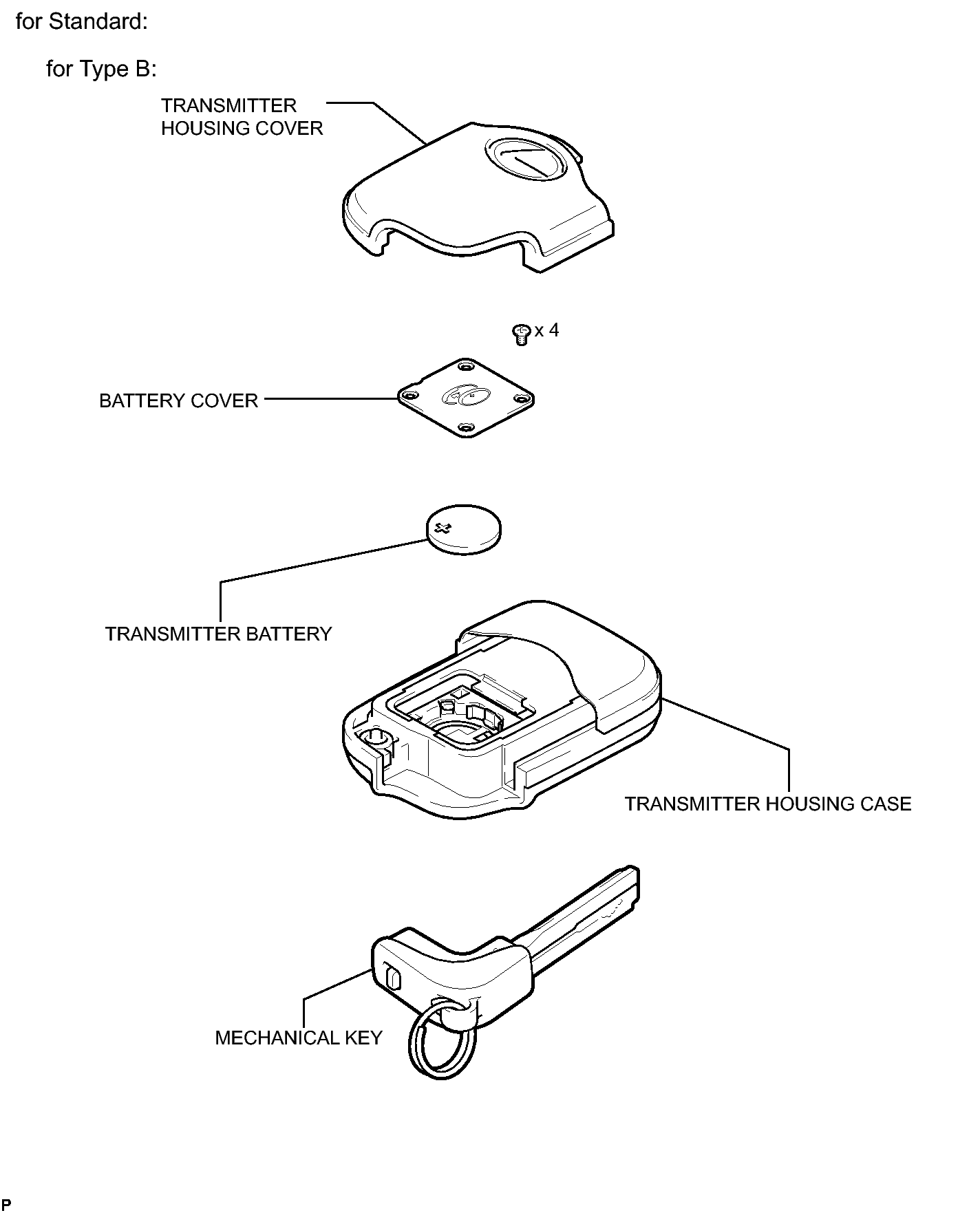

Fig 1: Identifying Door Control Transmitter Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
