Automatic Glare-Resistant EC Mirror with Compass and Parking Assist (Rear View Monitor w/o LEXUS Navigation System): Notes

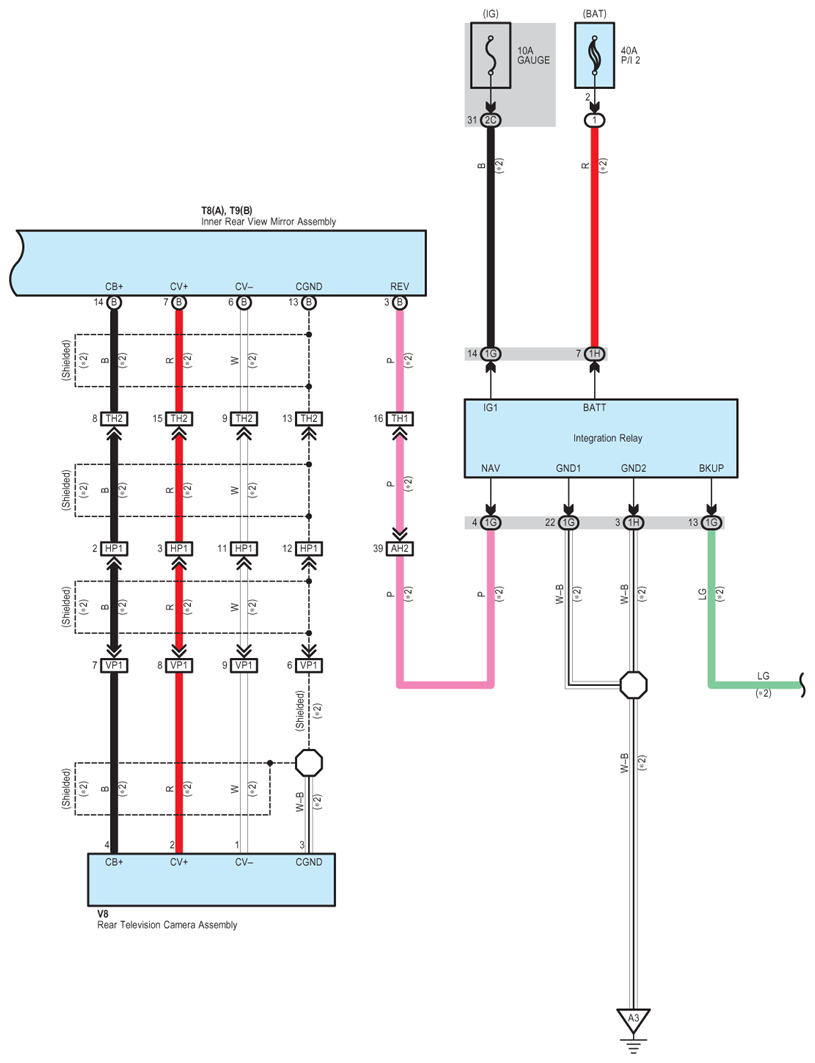

Fig 1: Automatic Glare-Resistant EC Mirror With Compass And Parking Assist - Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

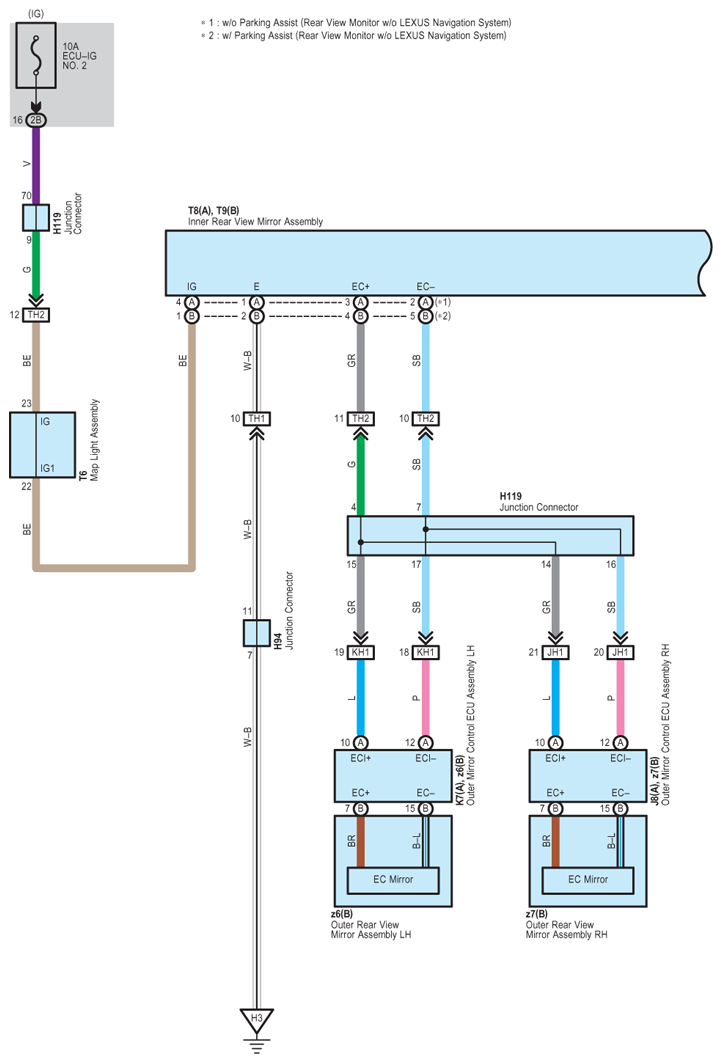

Fig 2: Automatic Glare-Resistant EC Mirror With Compass And Parking Assist - Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

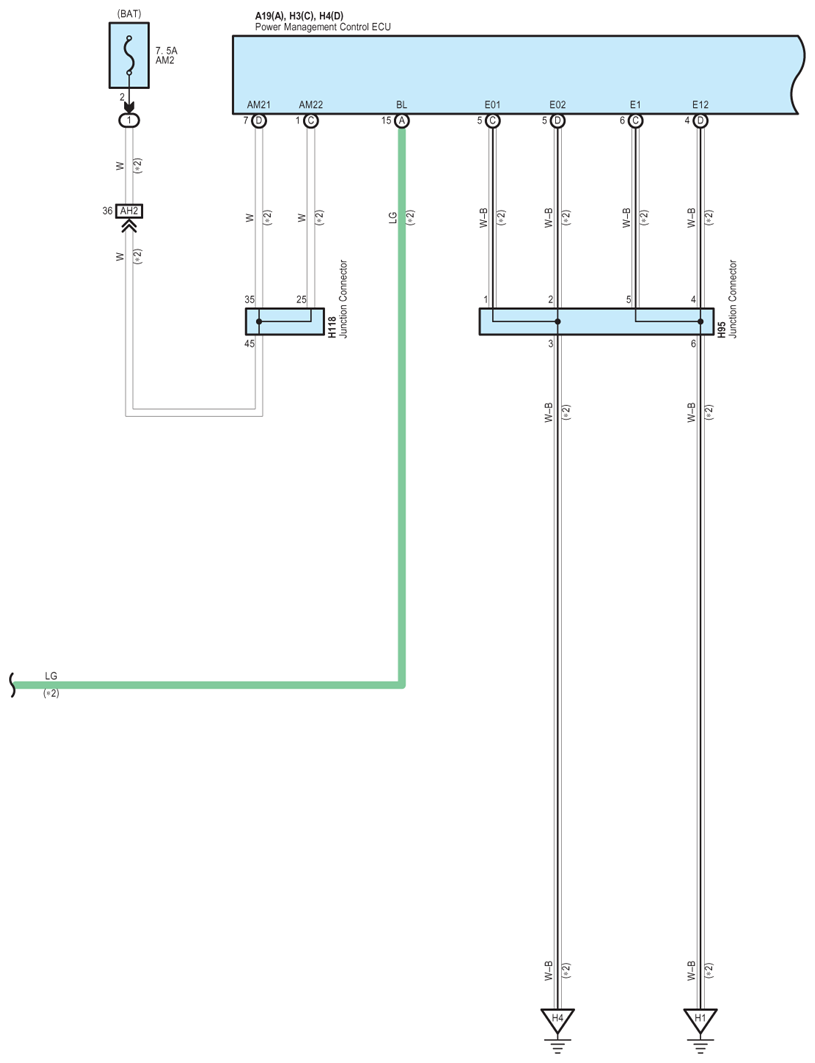

Fig 3: Automatic Glare-Resistant EC Mirror With Compass And Parking Assist - Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

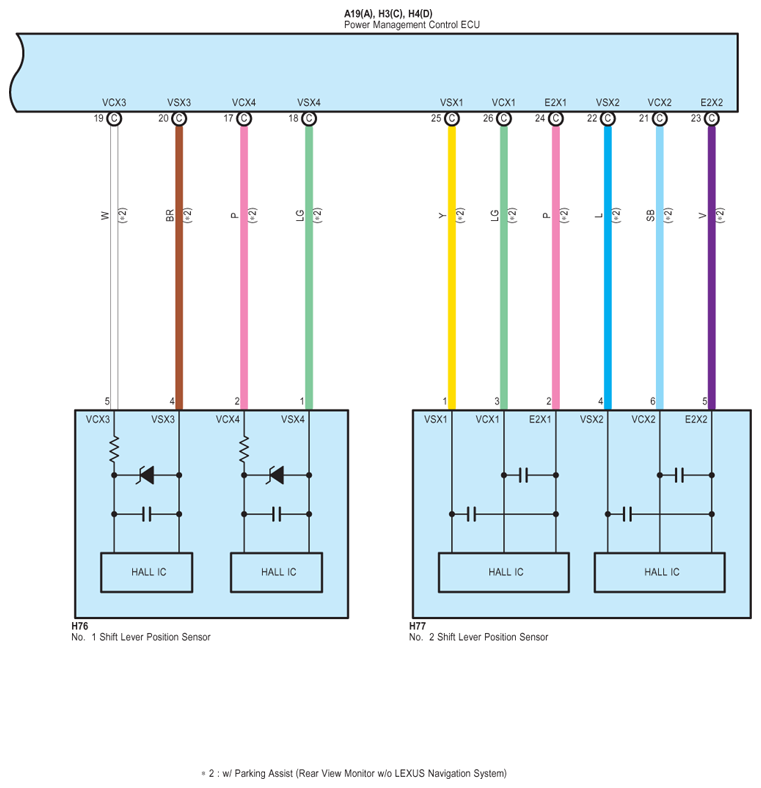

Fig 4: Automatic Glare-Resistant EC Mirror With Compass And Parking Assist - Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
