System Diagram

  1. for 6 Speakers

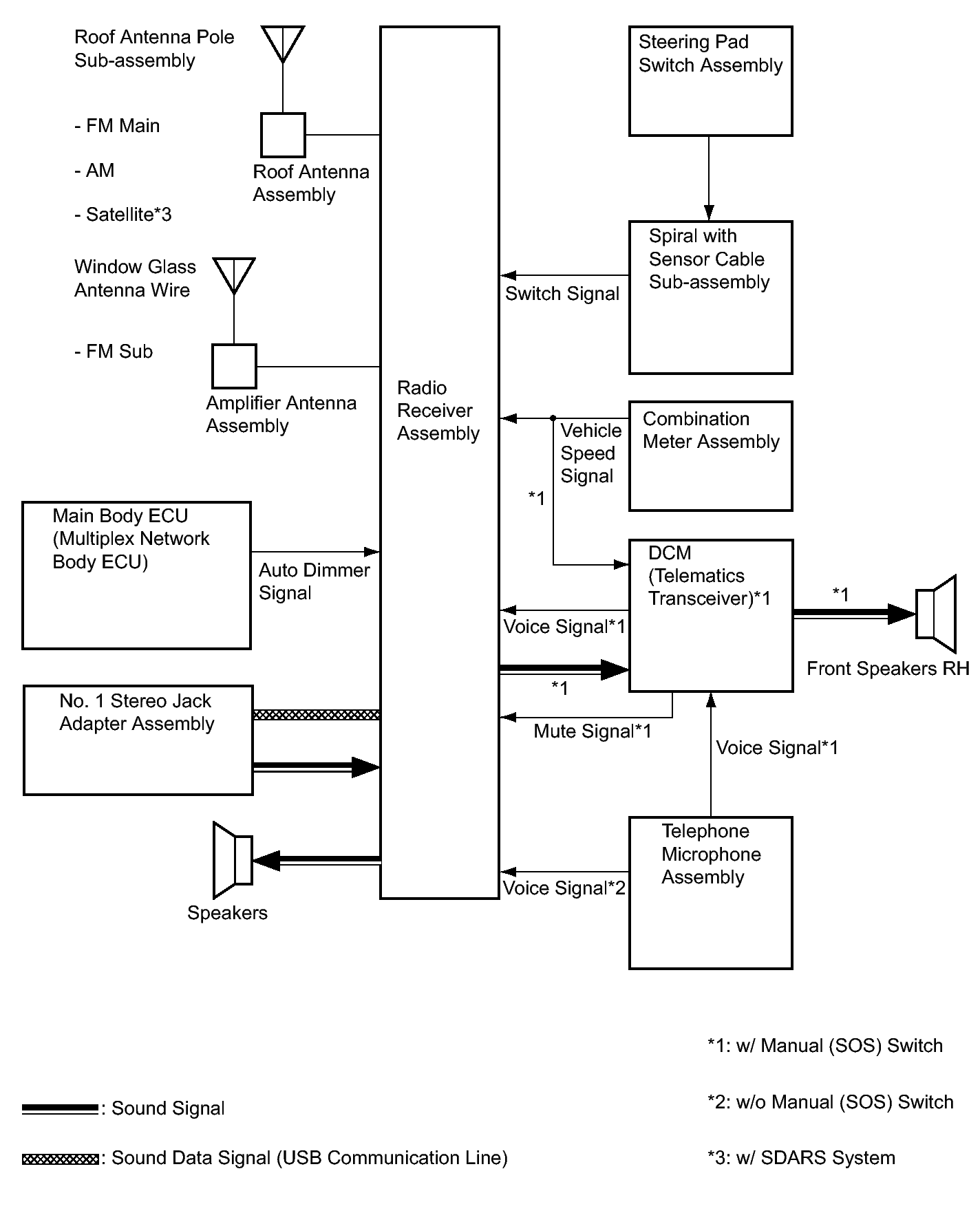

    Fig 1: Identifying Audio And Visual System Diagram (W/O Navigation System) (For 6 Speakers)
    GTY358402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 10 Speakers

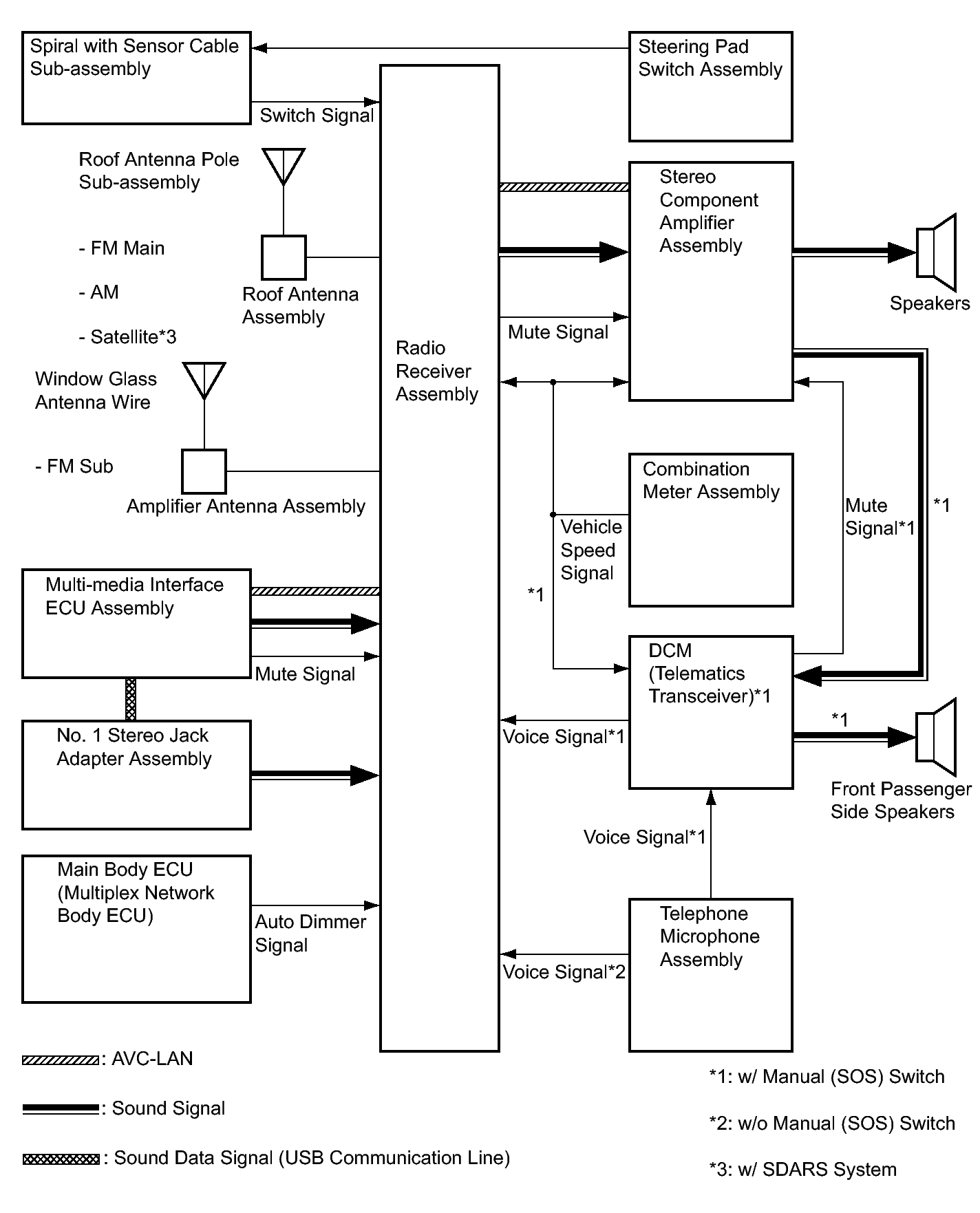

    Fig 2: Identifying Audio And Visual System Diagram (W/O Navigation System) (For 10 Speakers)
    GTY348036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
