Front Strut Bar: Components: Illustration

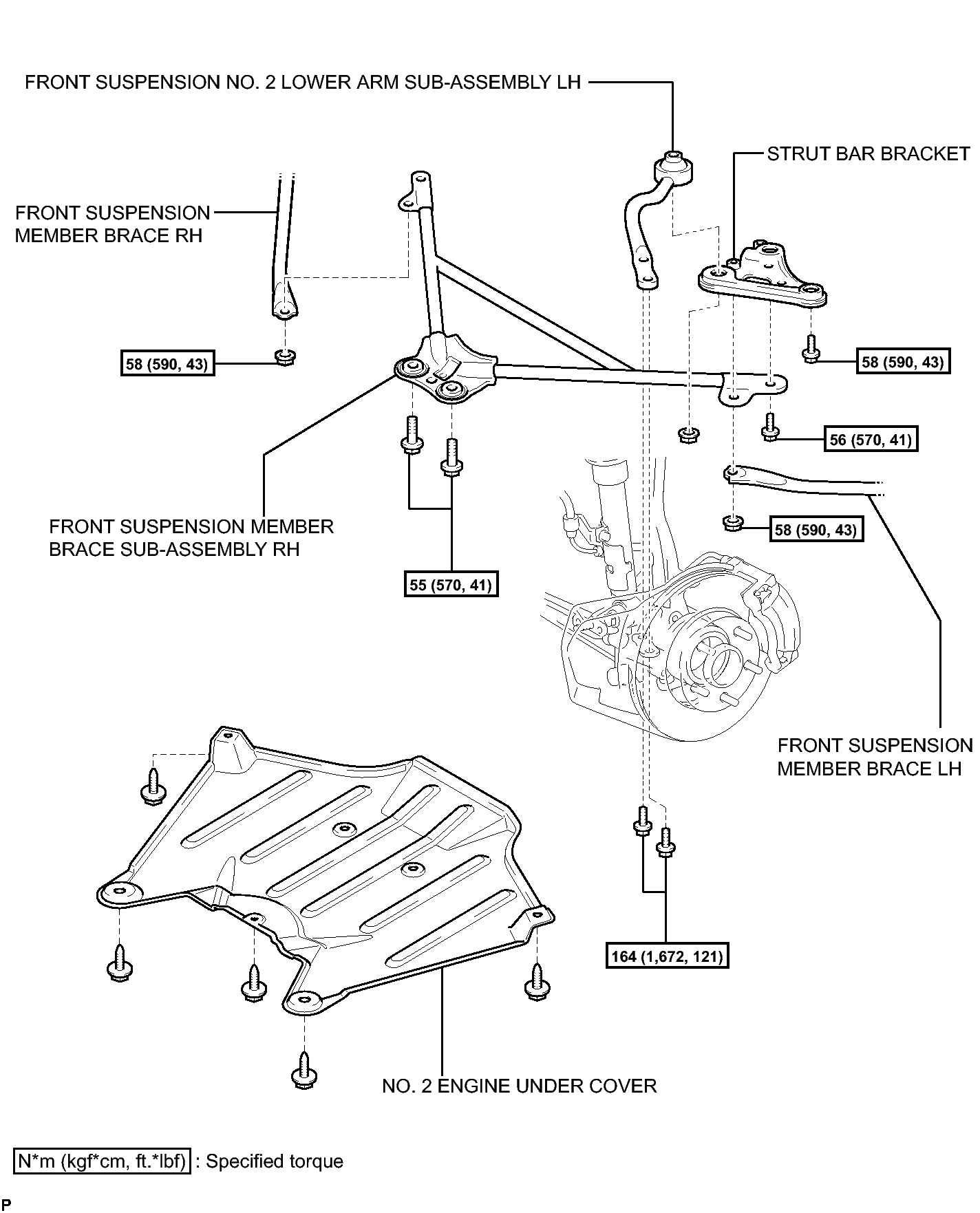

Fig 1: Identifying Front Suspension No. 2 Lower Arm Replacement Components With Torque Specifications

GTY111544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
