DTC P0171: System Too Lean (Bank 1); DTC P0172: System Too Rich (Bank 1); DTC P0174: System Too Lean (Bank 2); DTC P0175: System Too Rich (Bank 2): Wiring Diagram

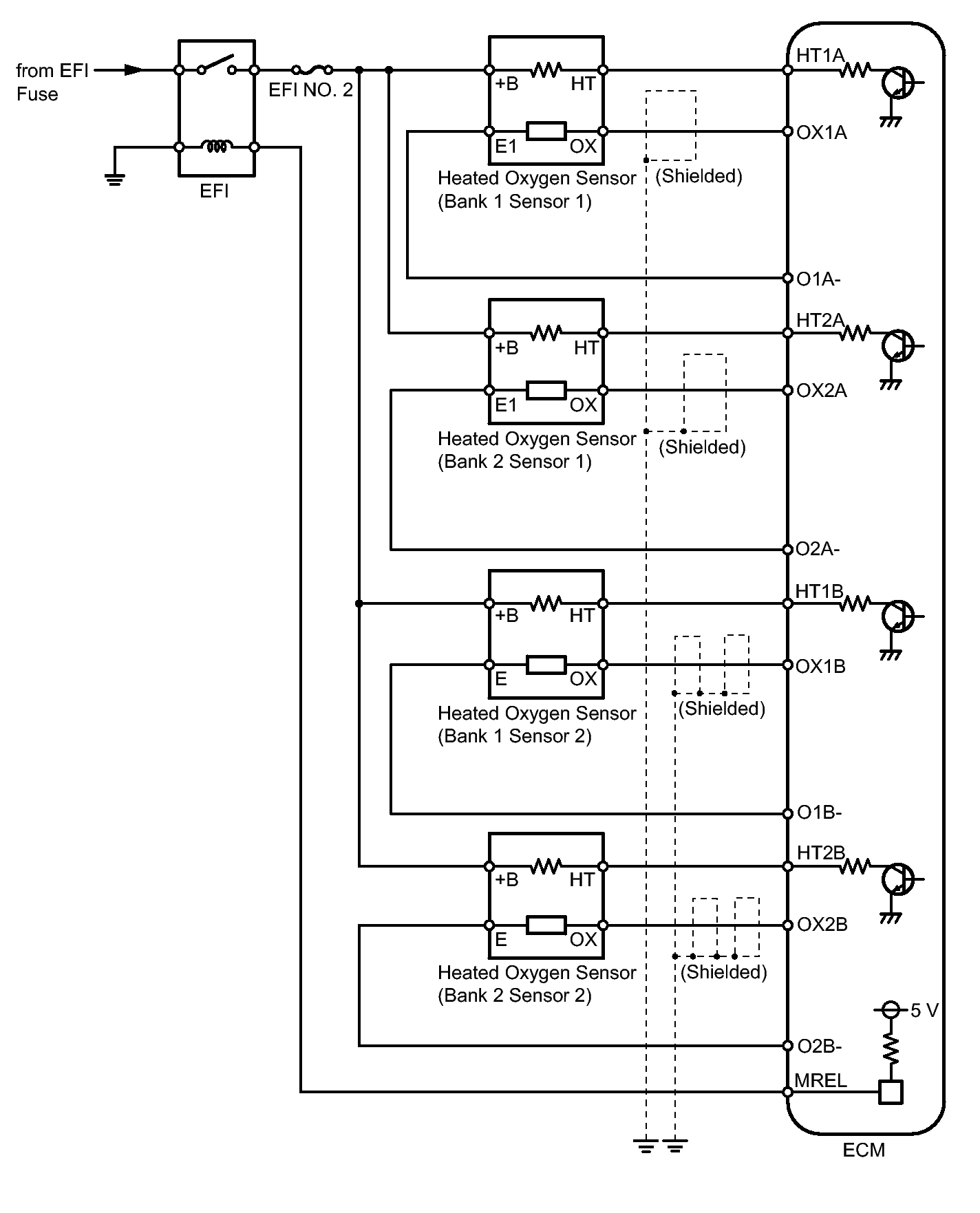

Fig 1: Heated Oxygen Sensor Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
