Sound Signal Circuit between Navigation ECU and Multi-media Interface ECU: Wiring Diagram

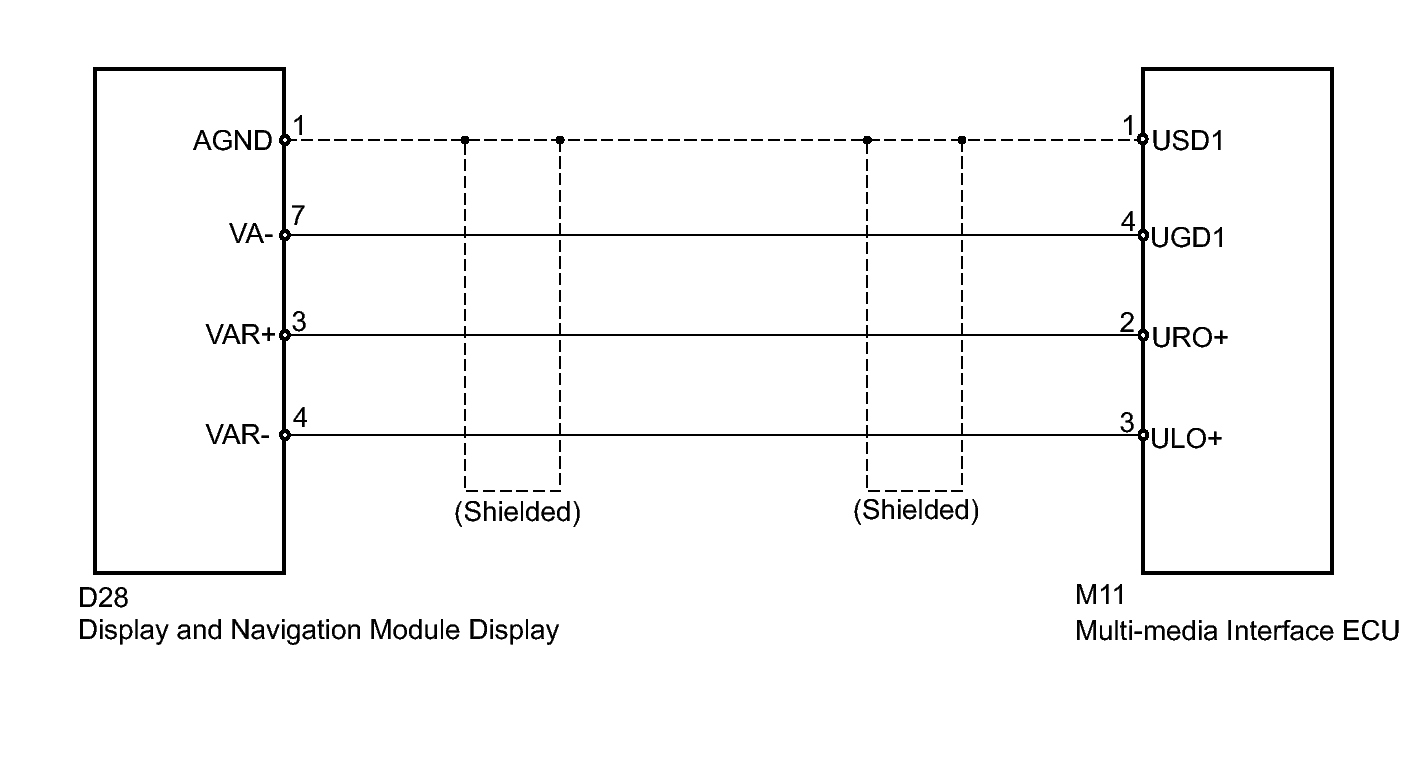

Fig 1: Display And Navigation Module Display Circuit Wiring Diagram
GTY266587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
