Stereo Component Amplifier Power Source Circuit: Wiring Diagram

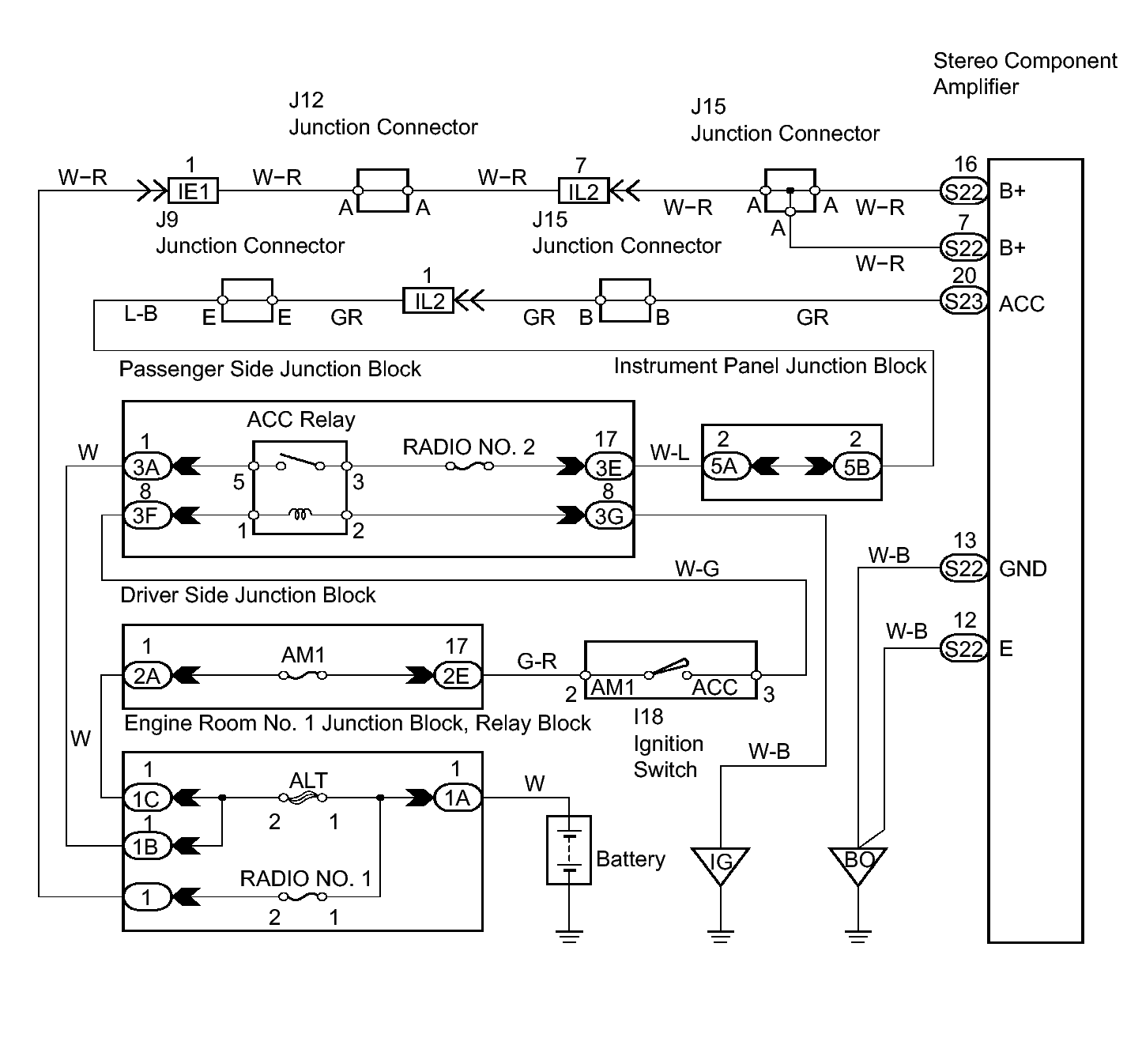

Fig 1: Identifying Stereo Component Amplifier Power Source Circuit Wiring Diagram

GTY289883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
