Radio Receiver Power Source Circuit: Wiring Diagram

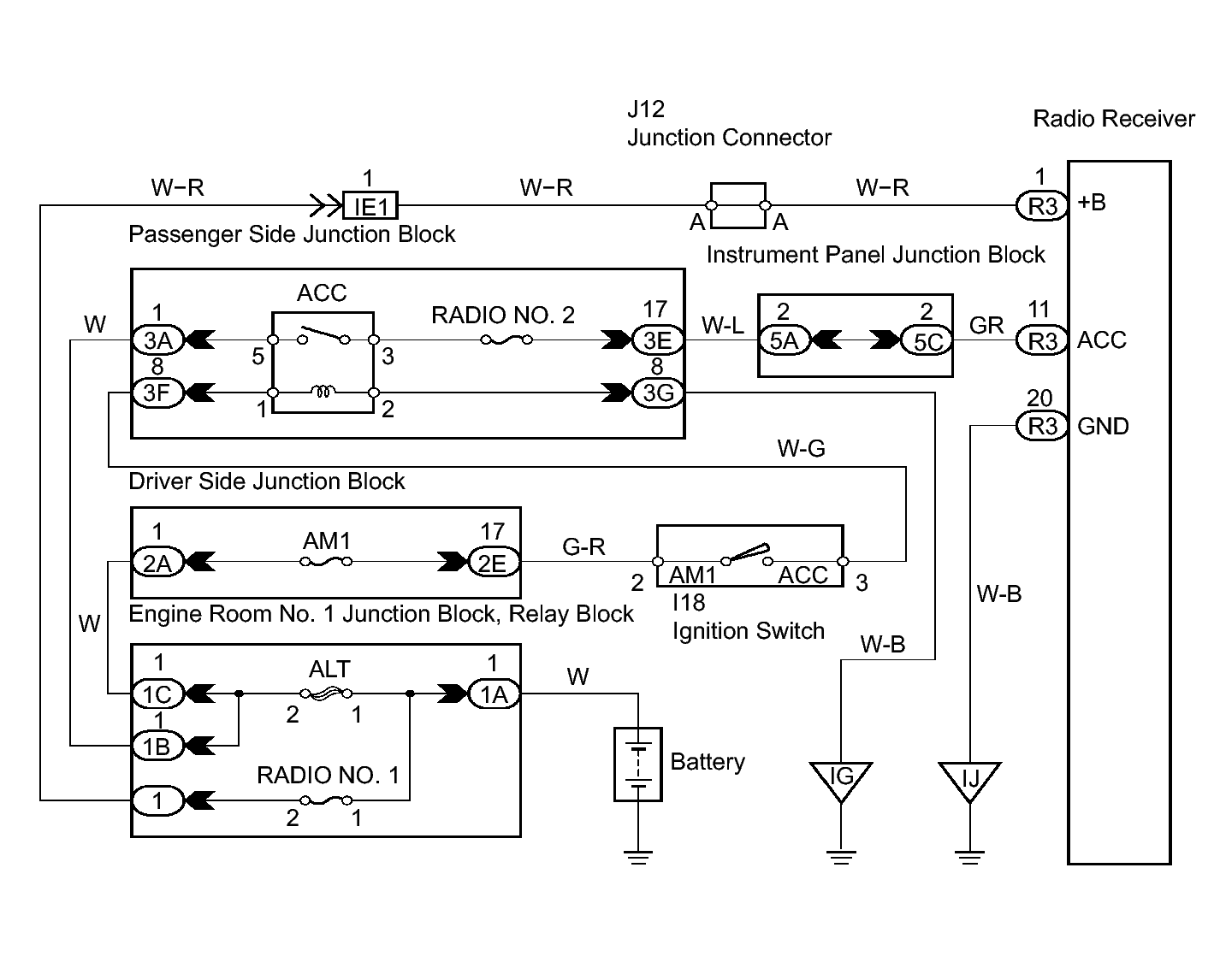

Fig 1: Radio Receiver Power Source Circuit Wiring Diagram

GTY289884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
