AMP Sound Signal Circuit between Radio Receiver Assembly and Stereo Component Tuner: Wiring Diagram

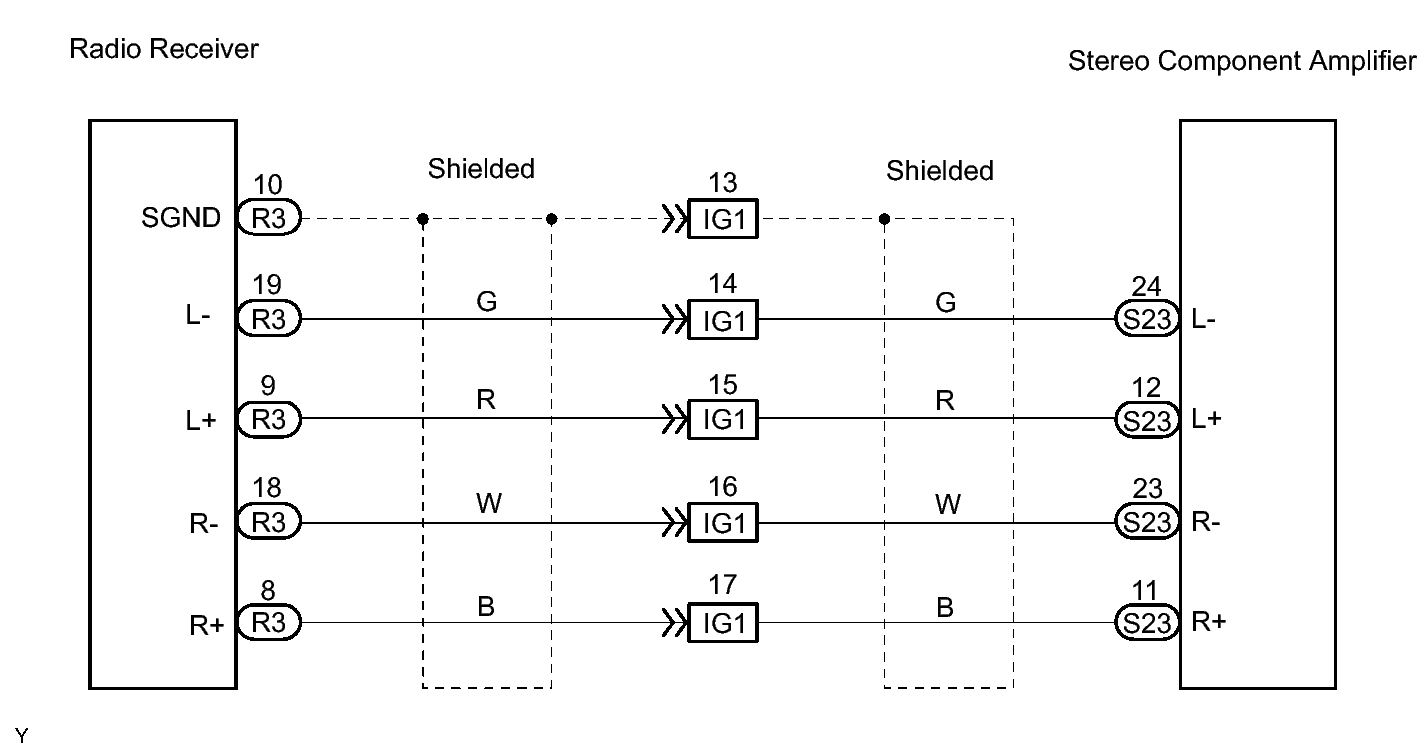

Fig 1: Identifying Radio Receiver To Stereo Component Amplifier Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
