Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00477363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash & Center Console

G00477364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vehicle Overview

G00477365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Seats

G00477366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

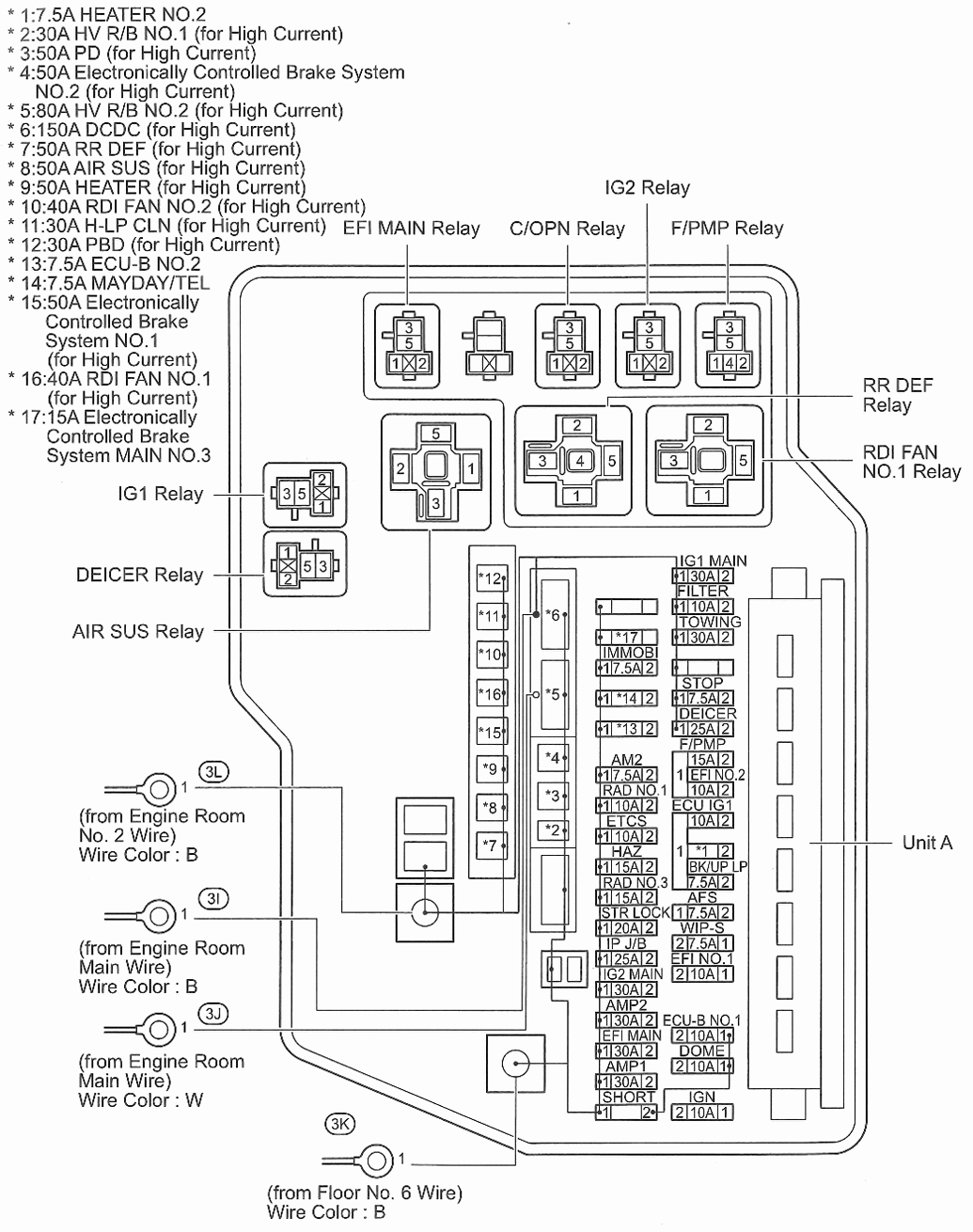

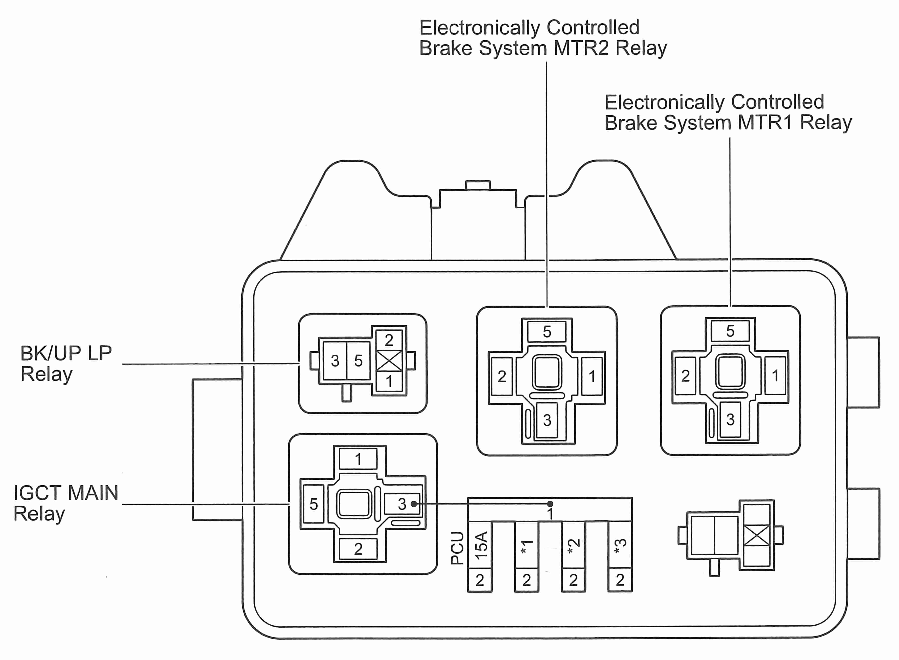

Fig 5: Engine Room R/B

G00477367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Room R/B No. 2

G00477368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

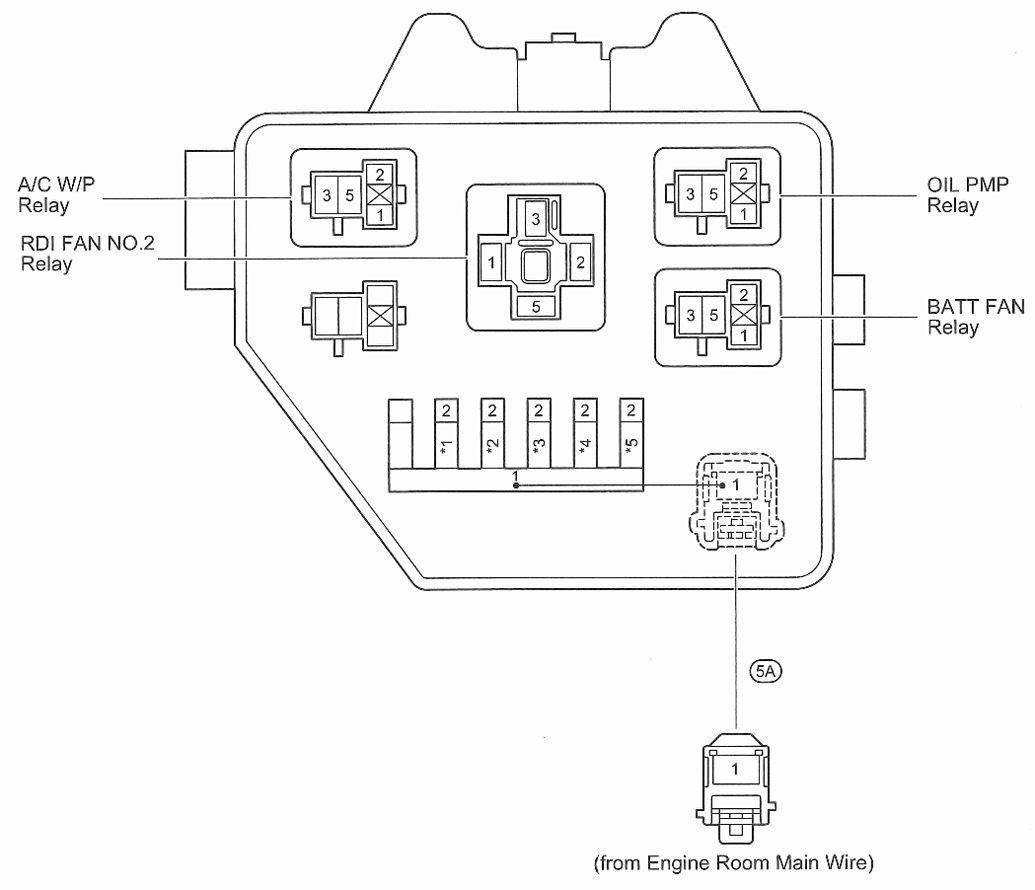

Fig 7: Engine Room R/B No. 3

G00477369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

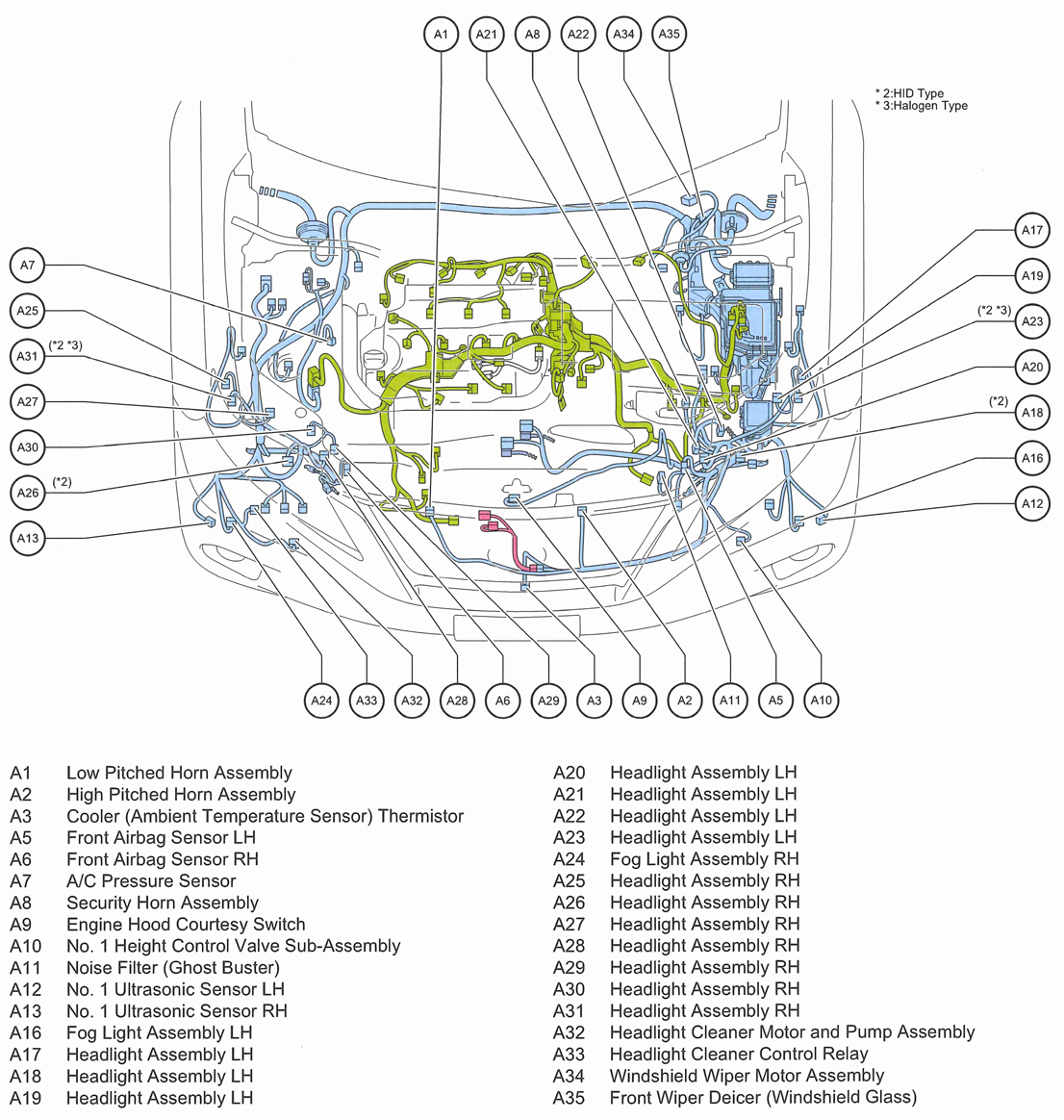

Fig 8: Engine Compartment

G00477370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

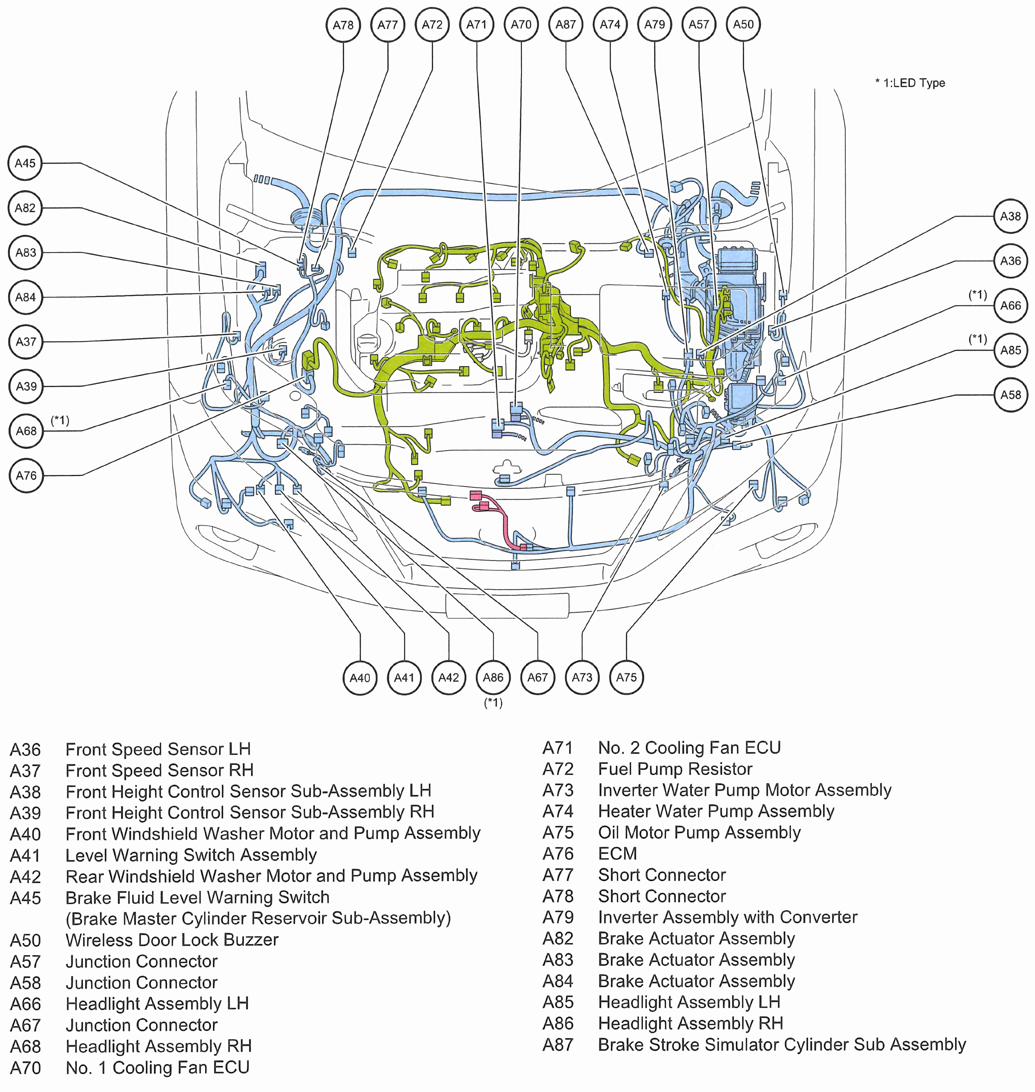

Fig 9: Engine Compartment

G00477371

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

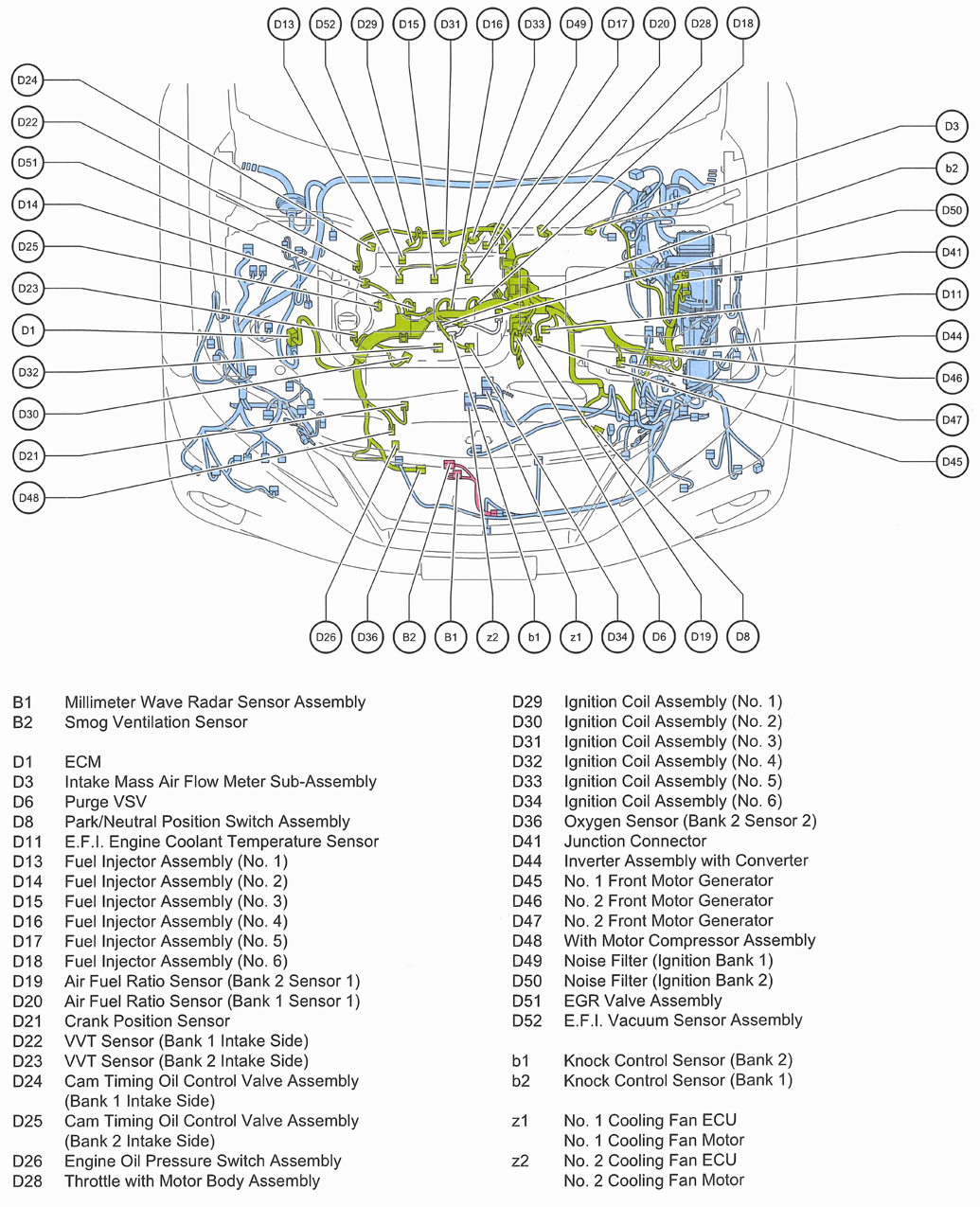

Fig 10: Engine Compartment

G00477372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

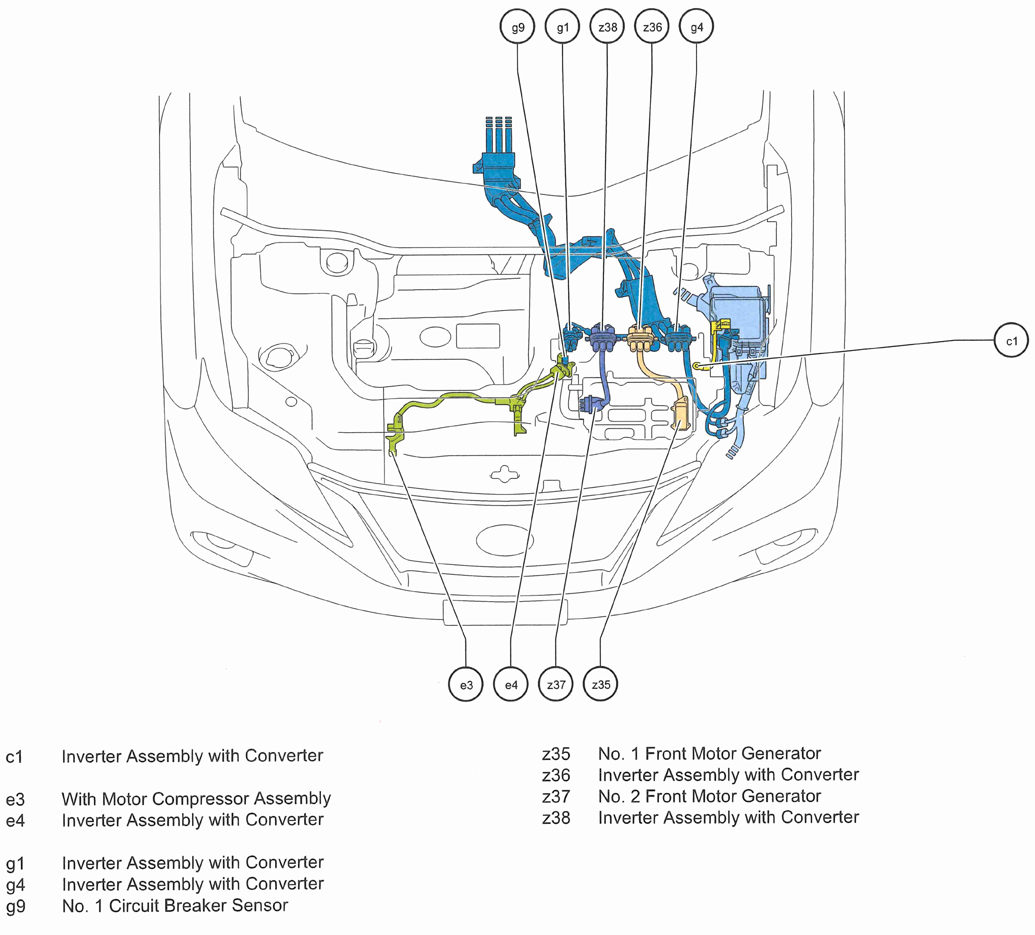

Fig 11: Engine Compartment

G00477373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

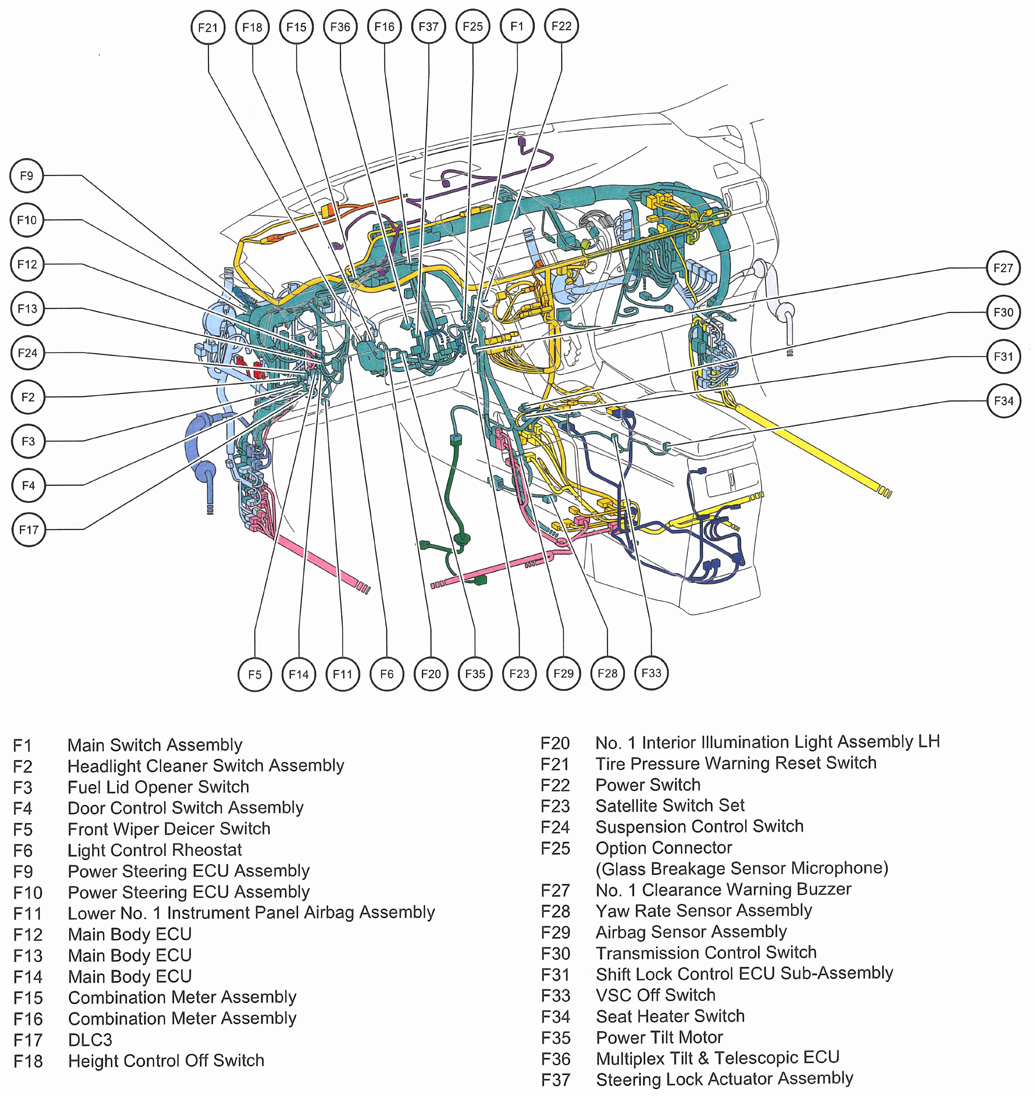

Fig 12: Dash & Center Floor Console

G00477374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dash & Center Floor Console

G00477375

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

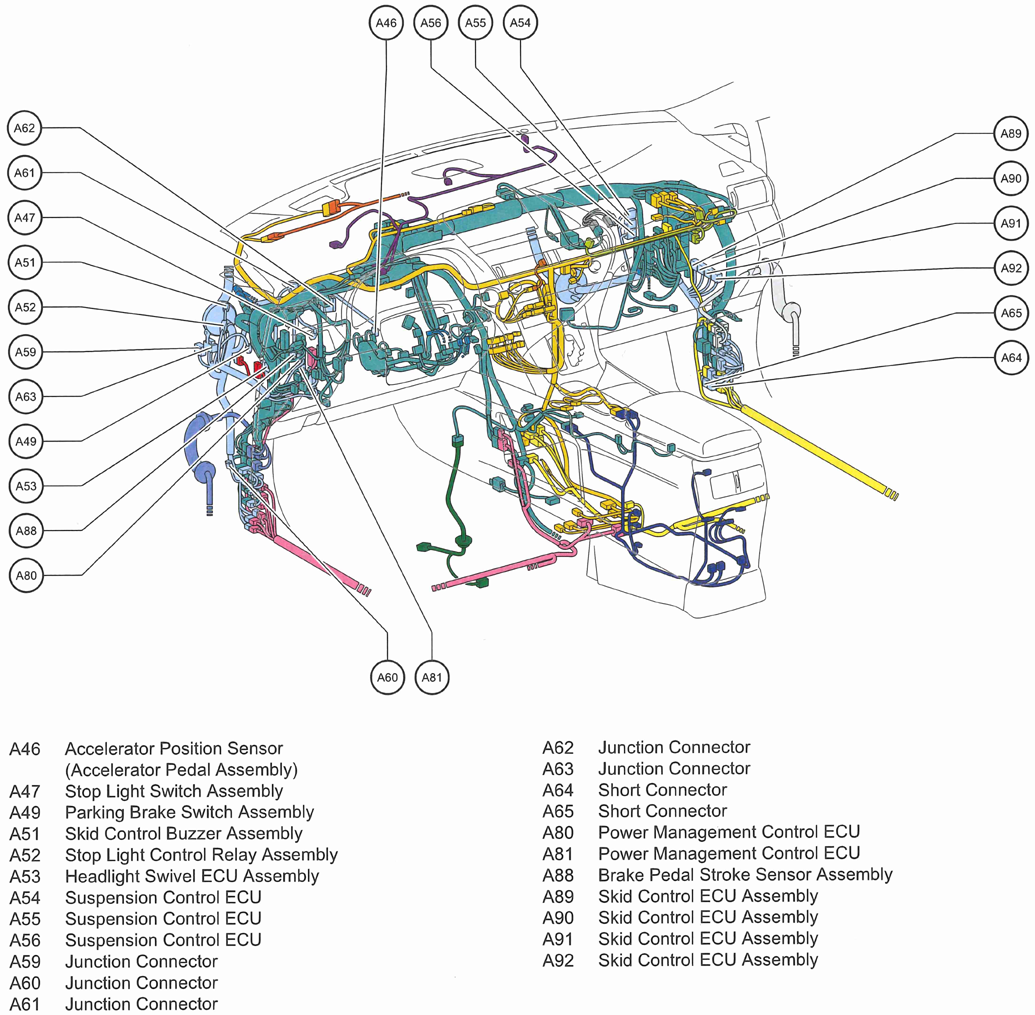

Fig 14: Dash & Center Floor Console

G00477376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

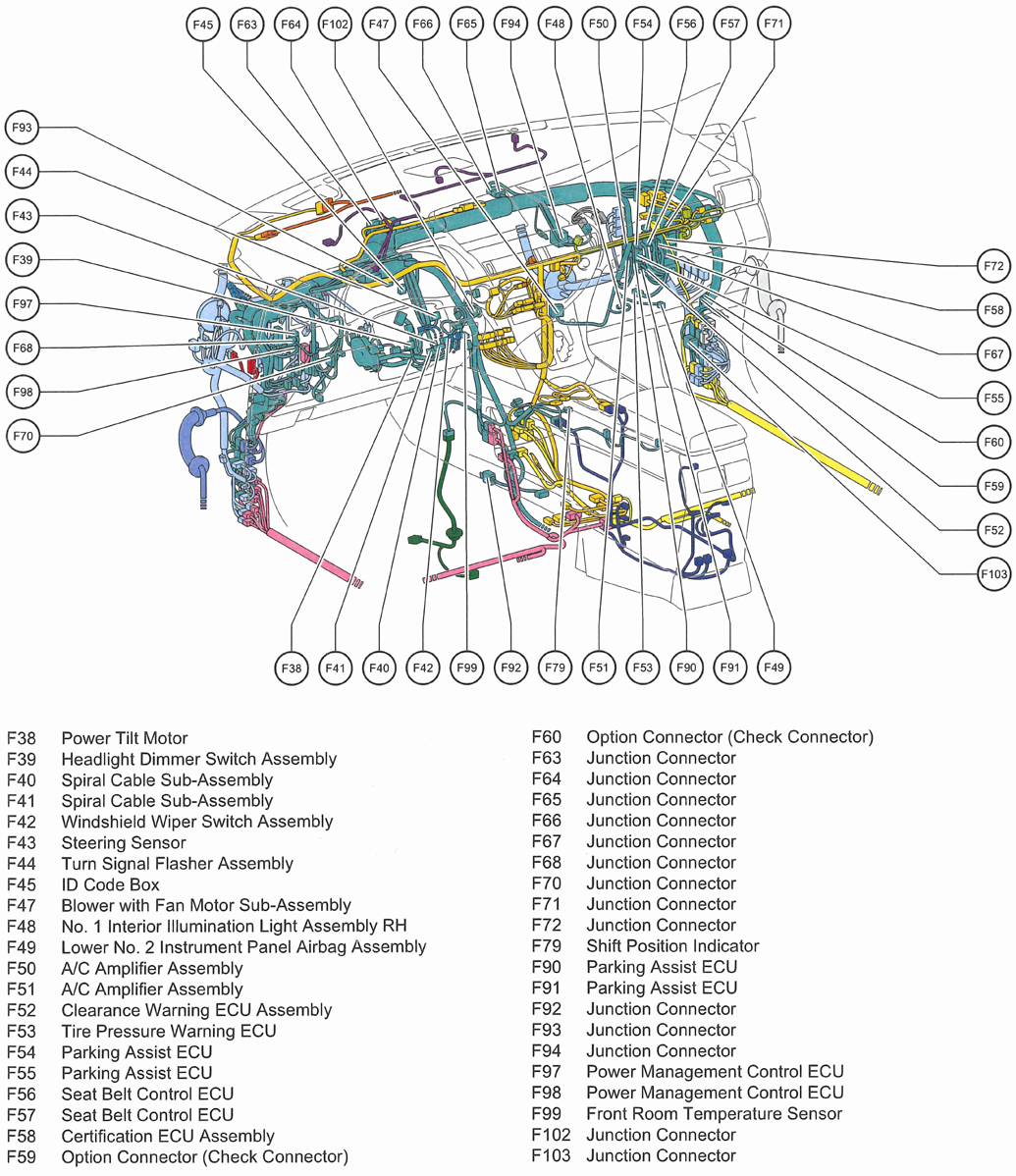

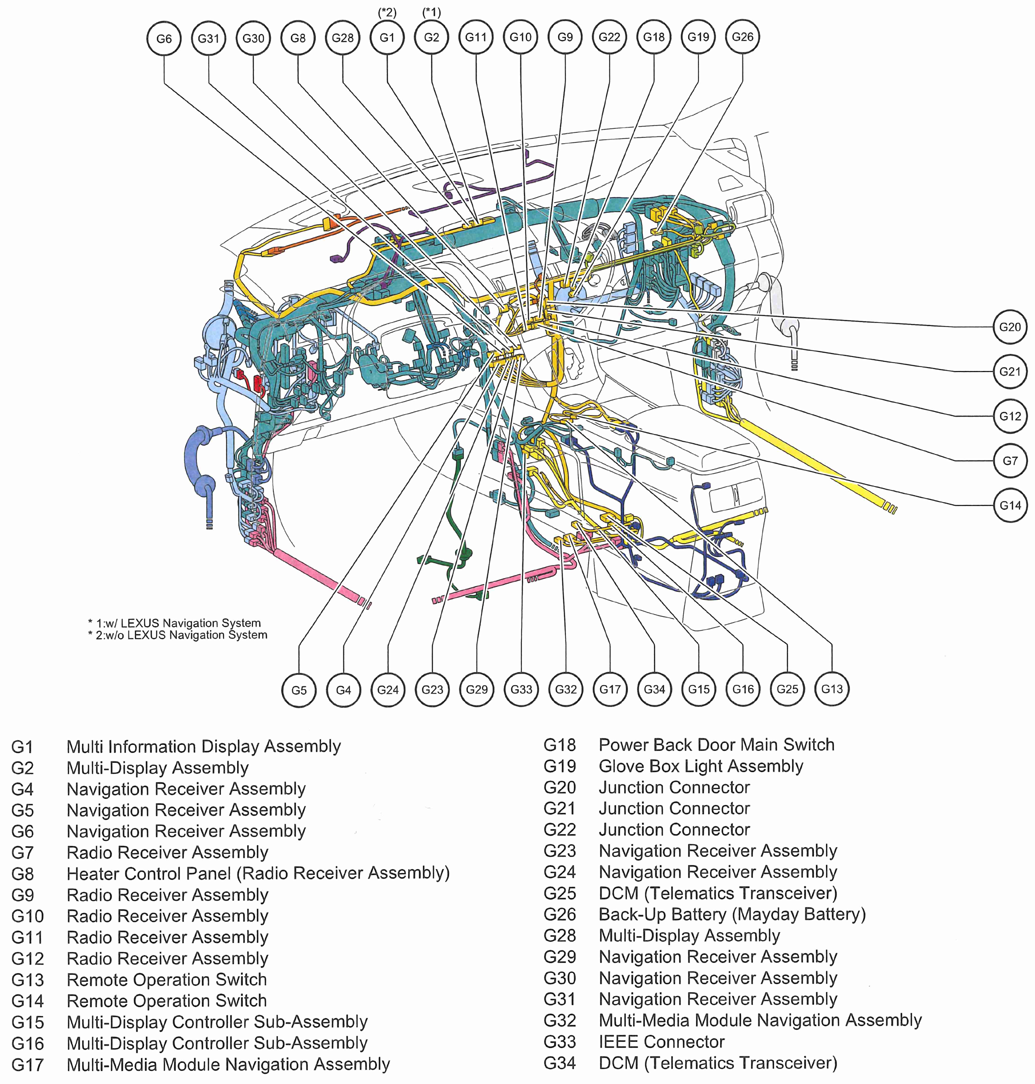

Fig 15: Dash & Center Floor Console

G00477377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

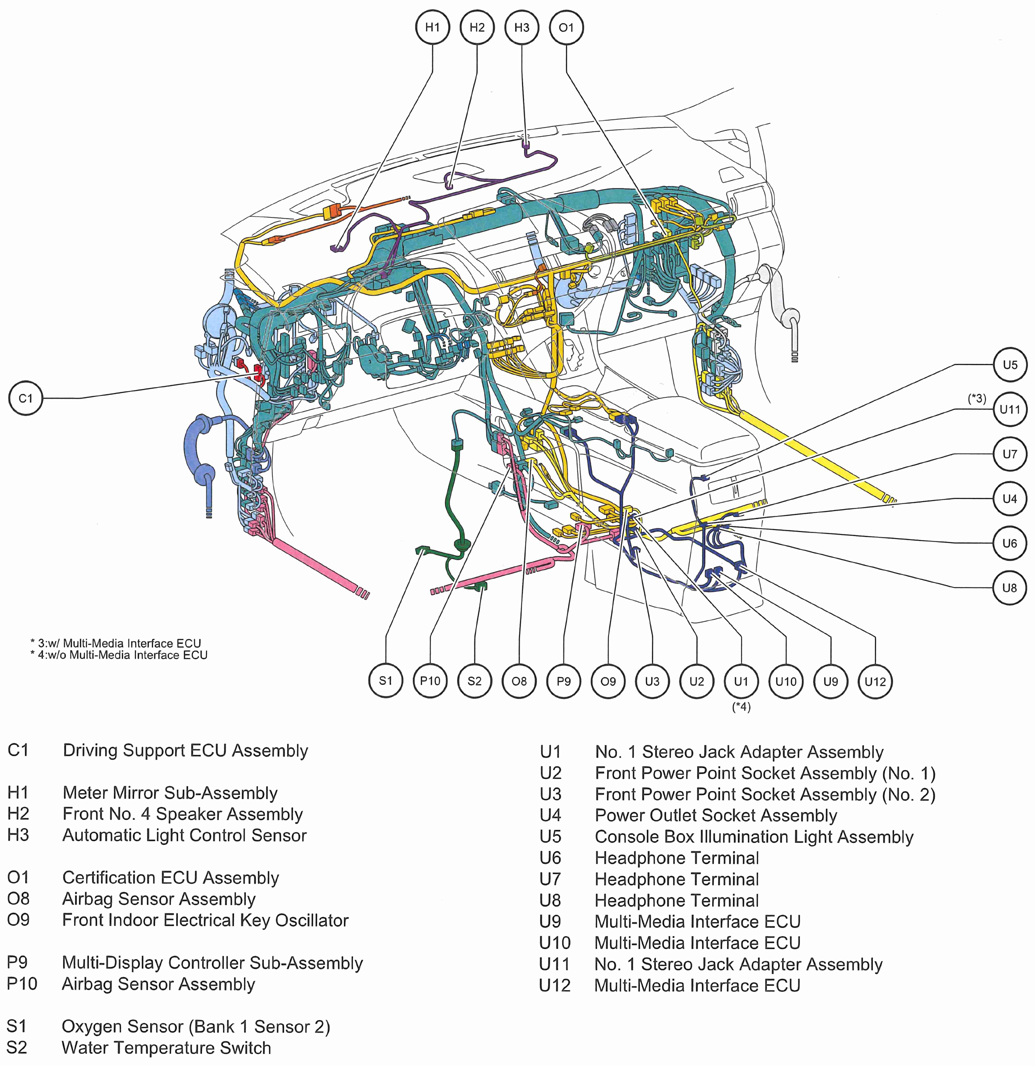

Fig 16: Dash & Center Floor Console

G00477378

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

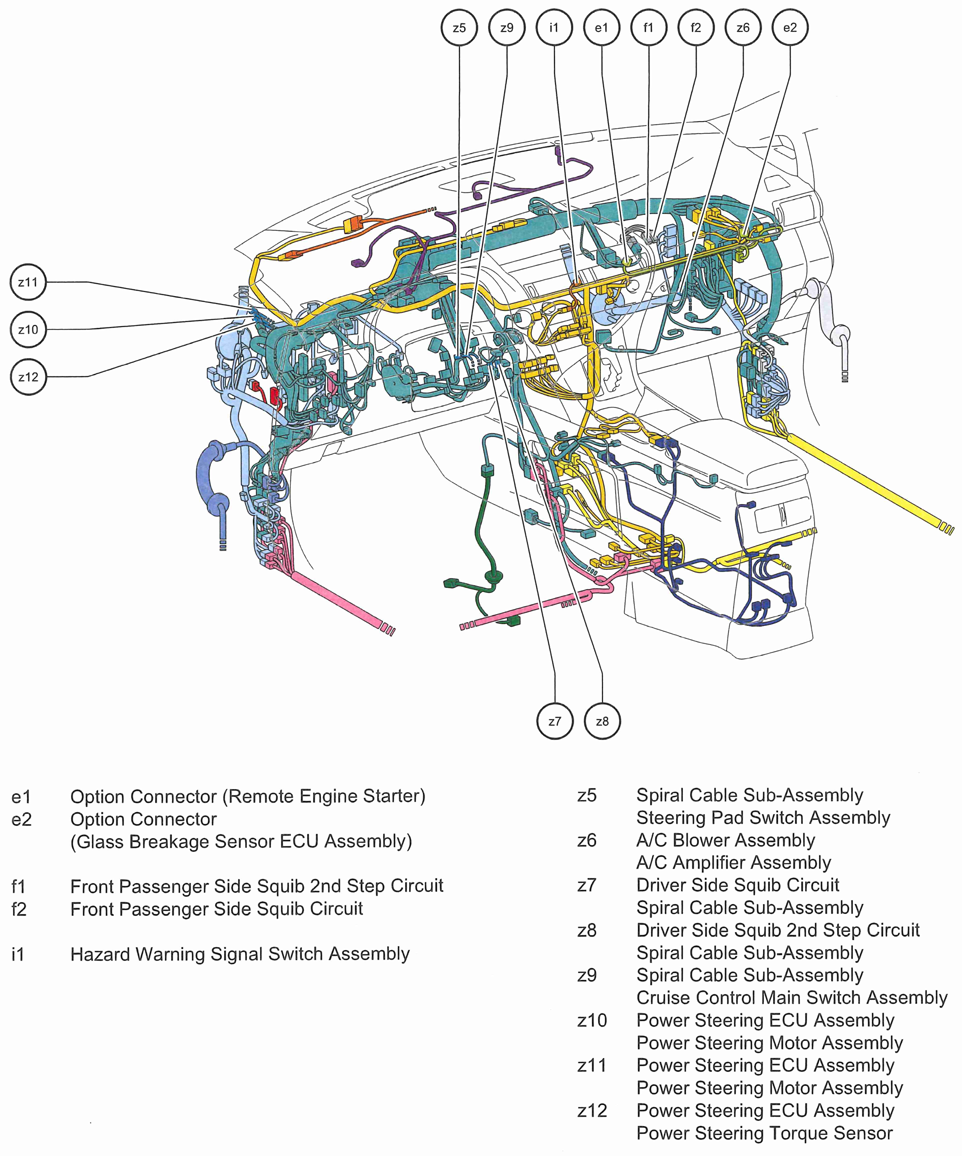

Fig 17: Dash

G00477379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

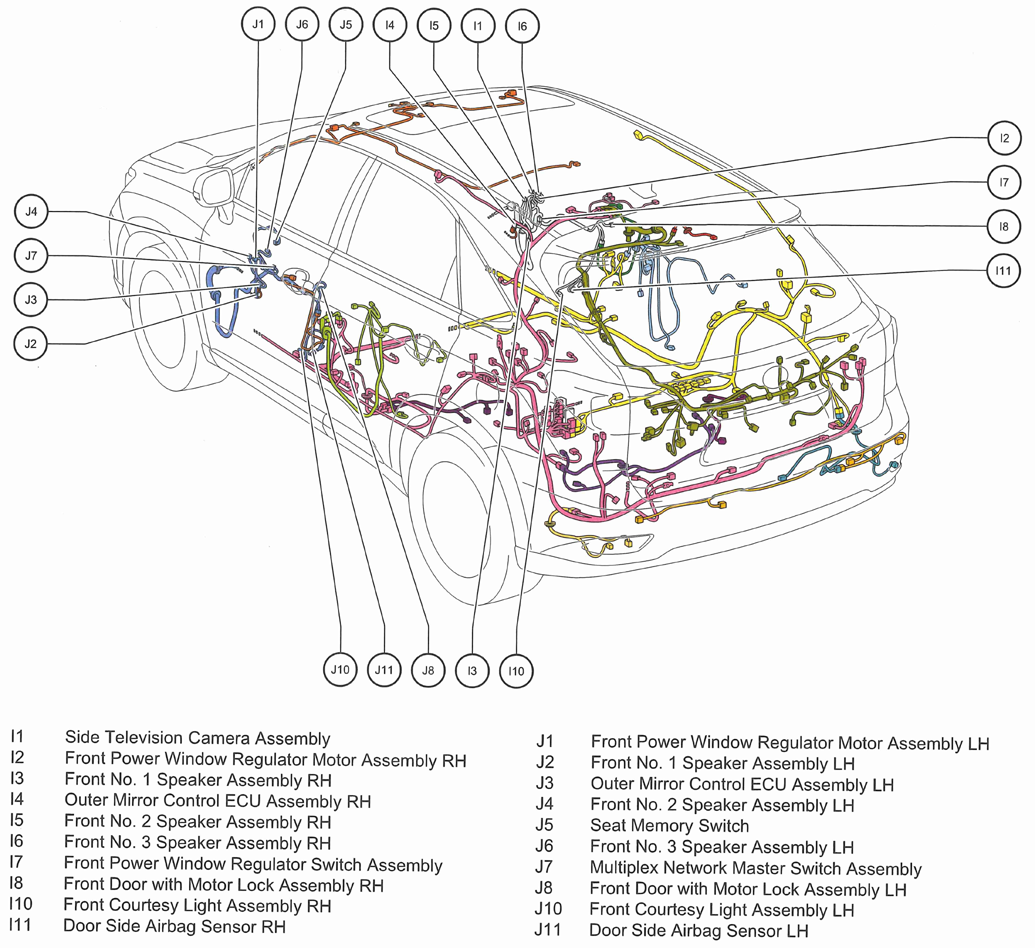

Fig 18: Vehicle Overview

G00477380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

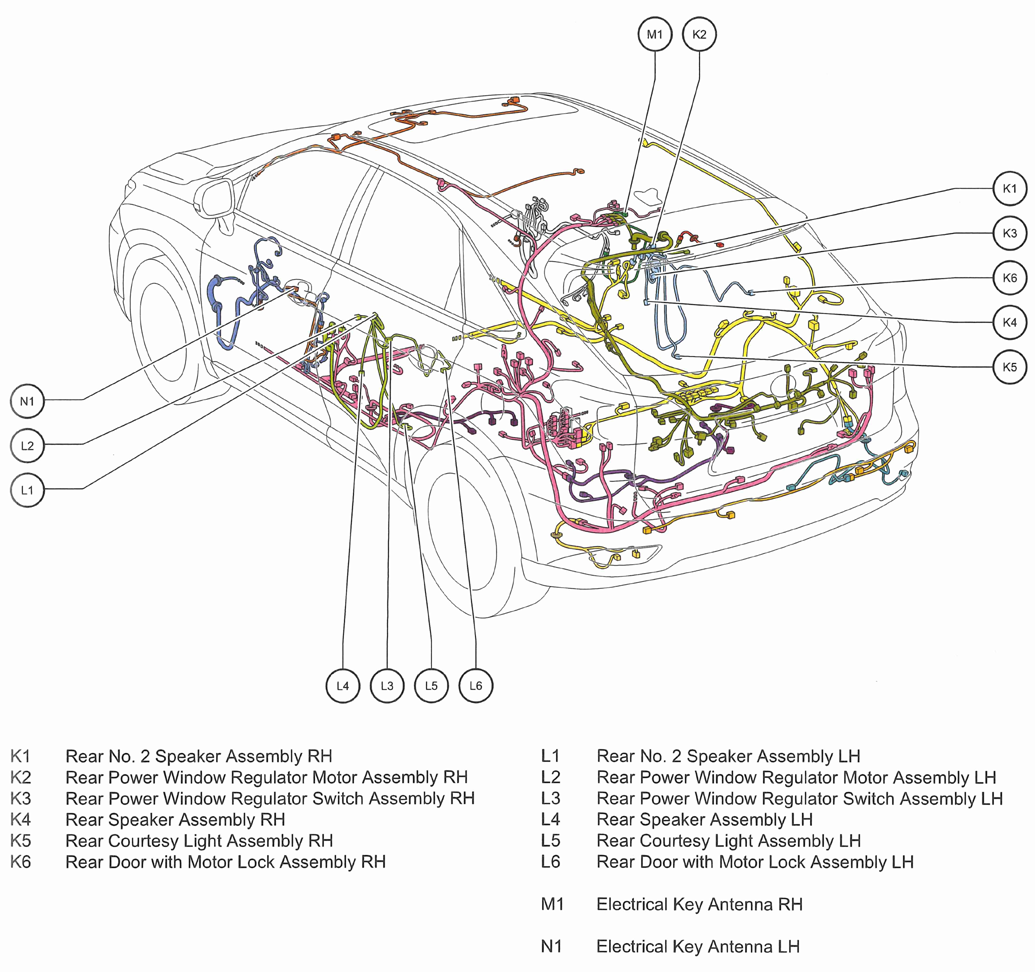

Fig 19: Vehicle Overview

G00477381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

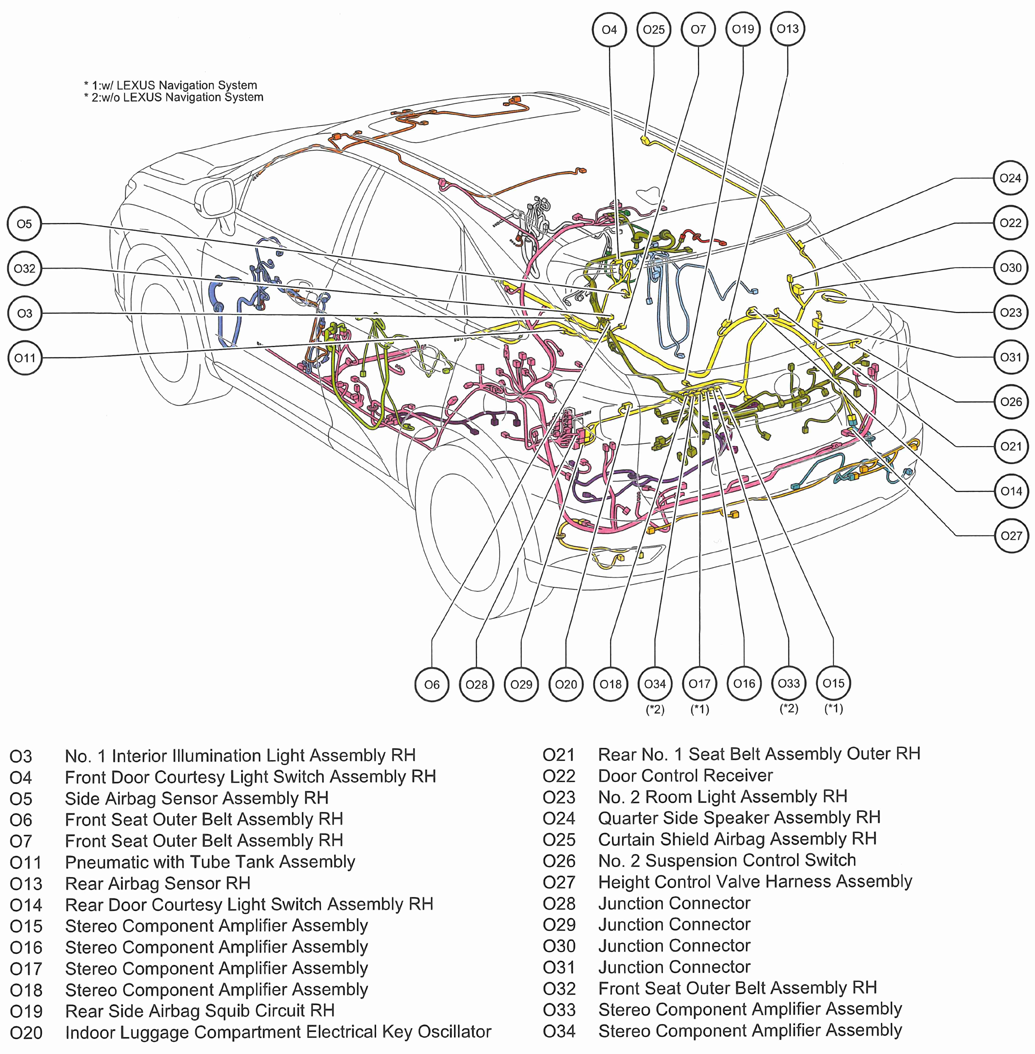

Fig 20: Vehicle Overview

G00477382

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

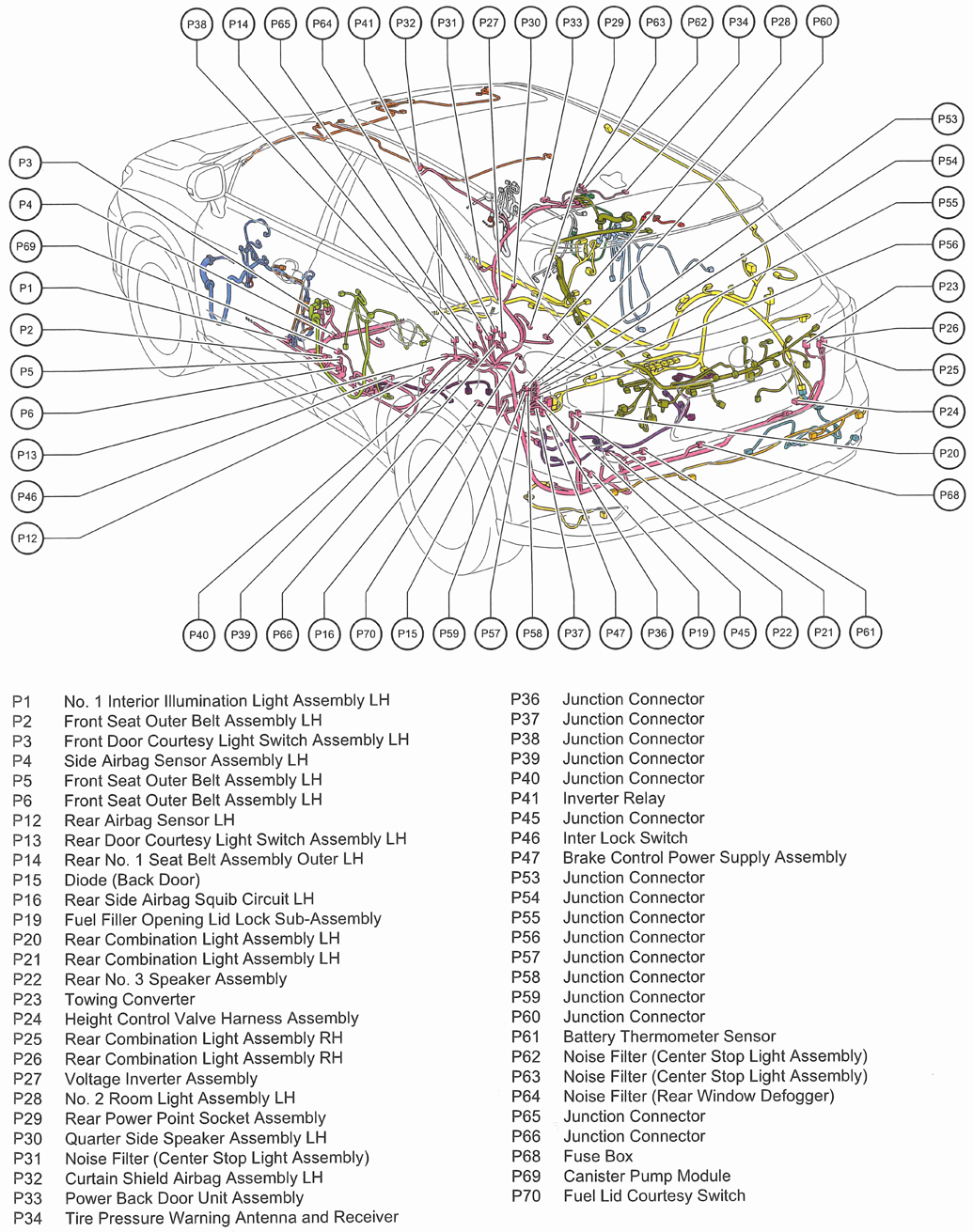

Fig 21: Vehicle Overview

G00477383

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

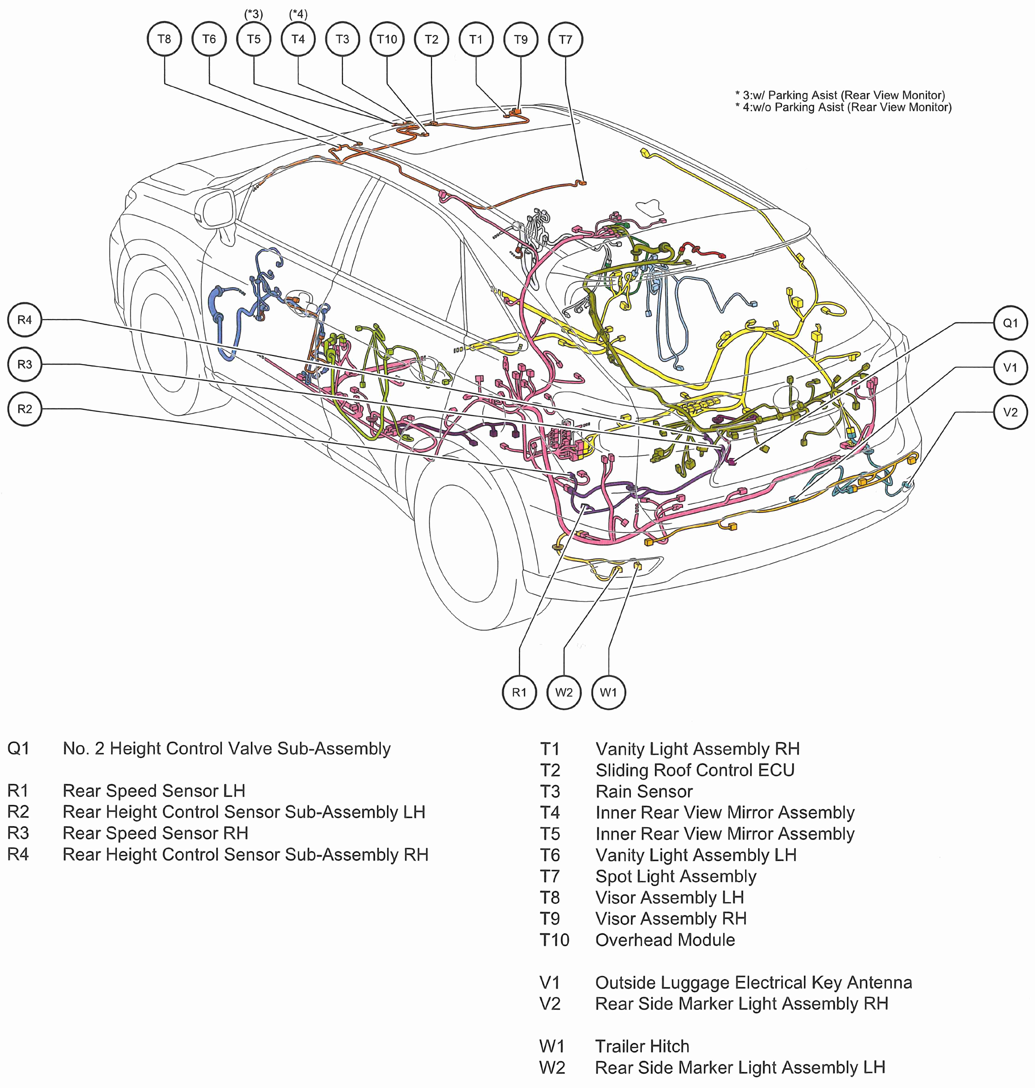

Fig 22: Vehicle Overview

G00477384

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

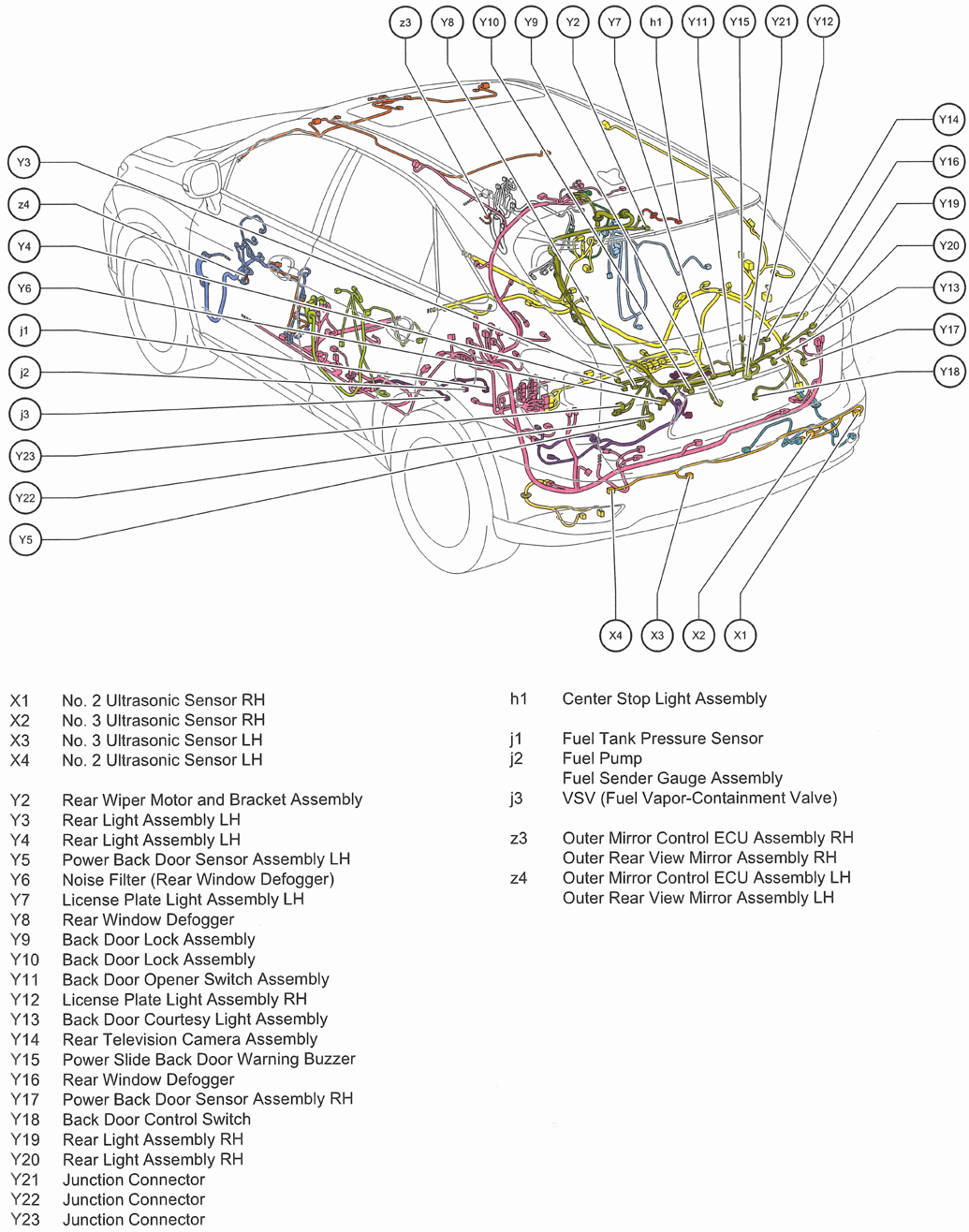

Fig 23: Vehicle Overview

G00477385

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

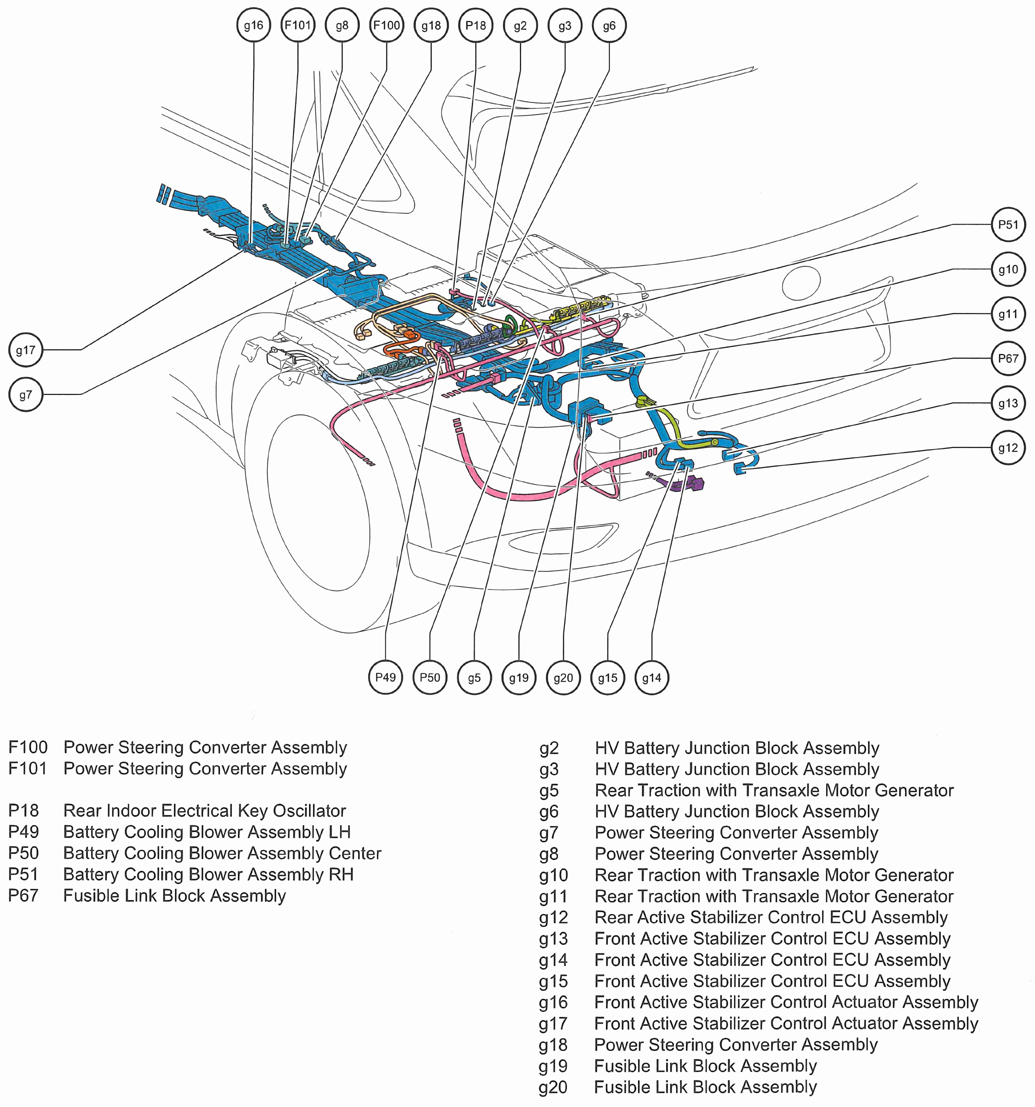

Fig 24: Rear Of Vehicle

G00477386

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

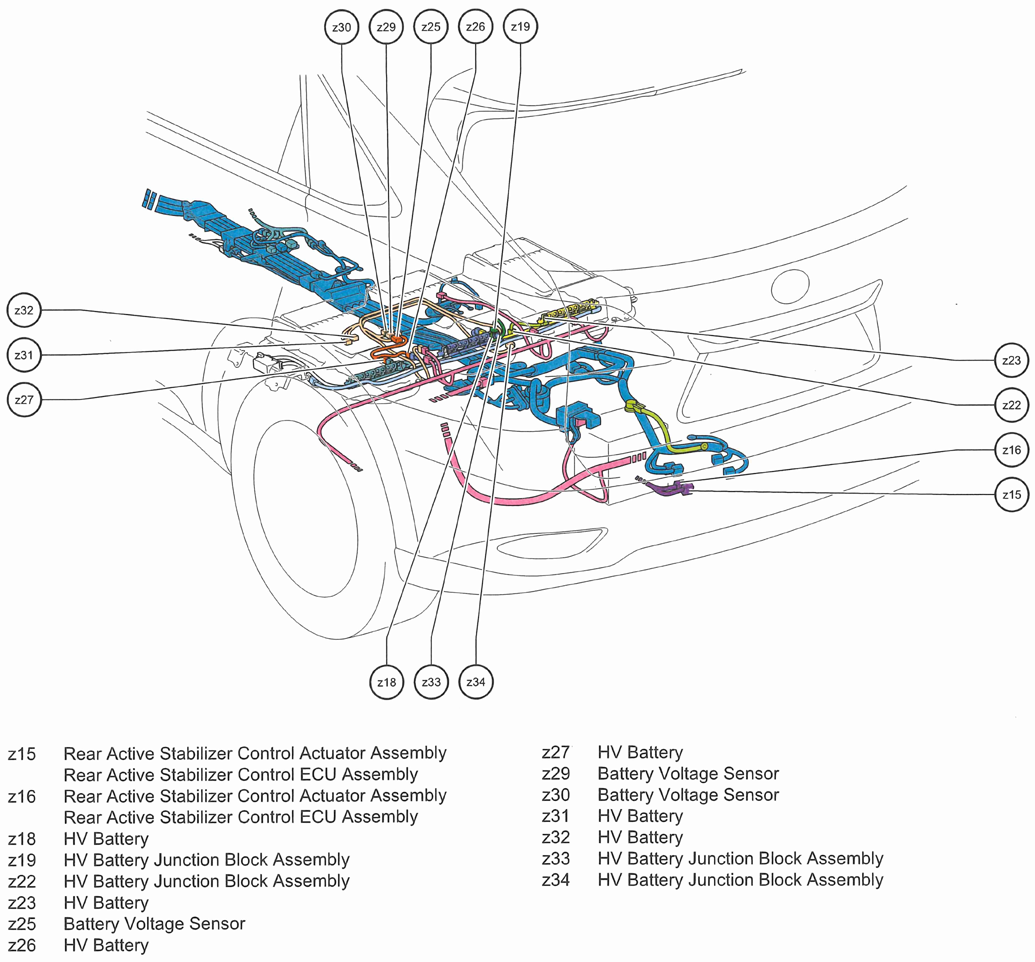

Fig 25: Rear Of Vehicle

G00477387

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

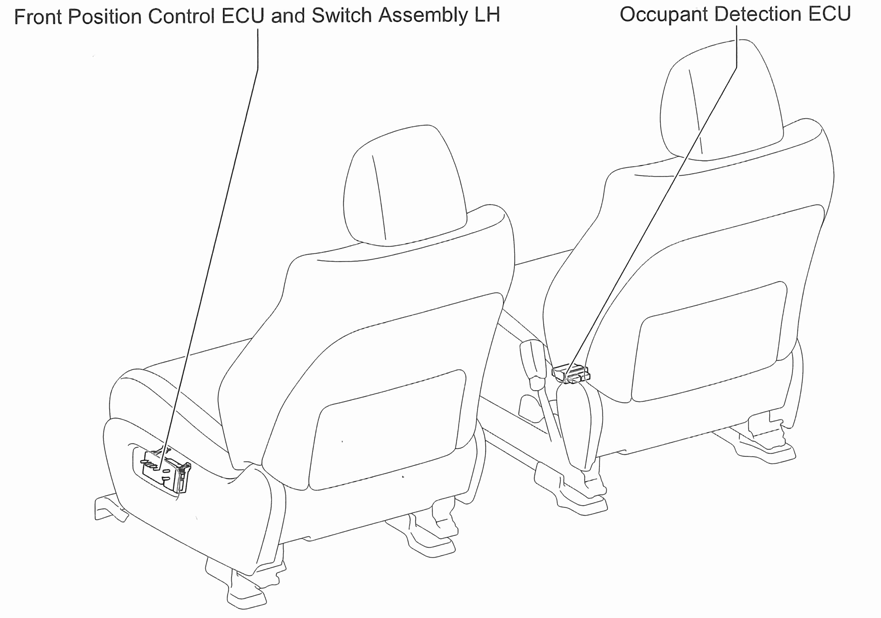

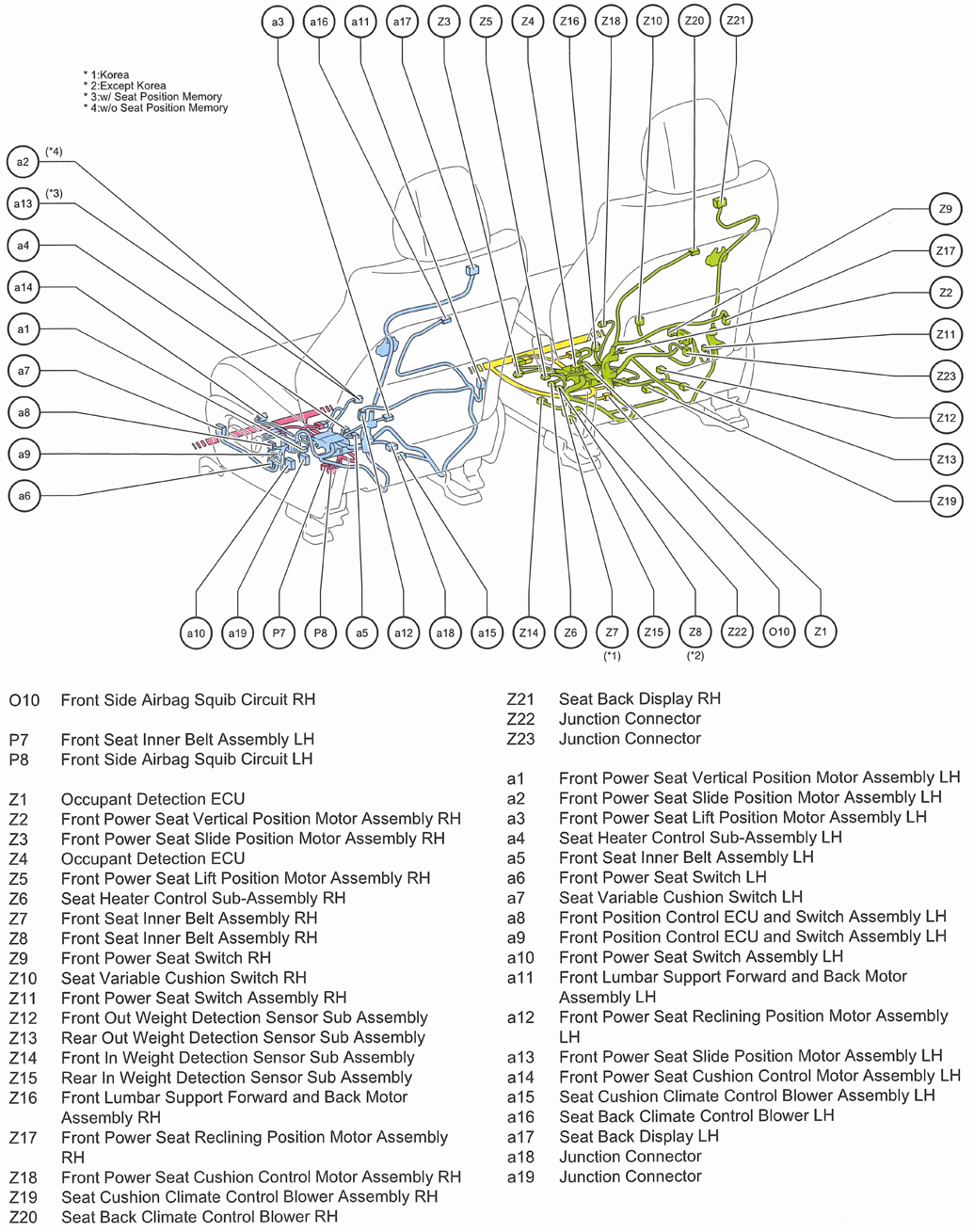

Fig 26: Front Seats

G00477388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

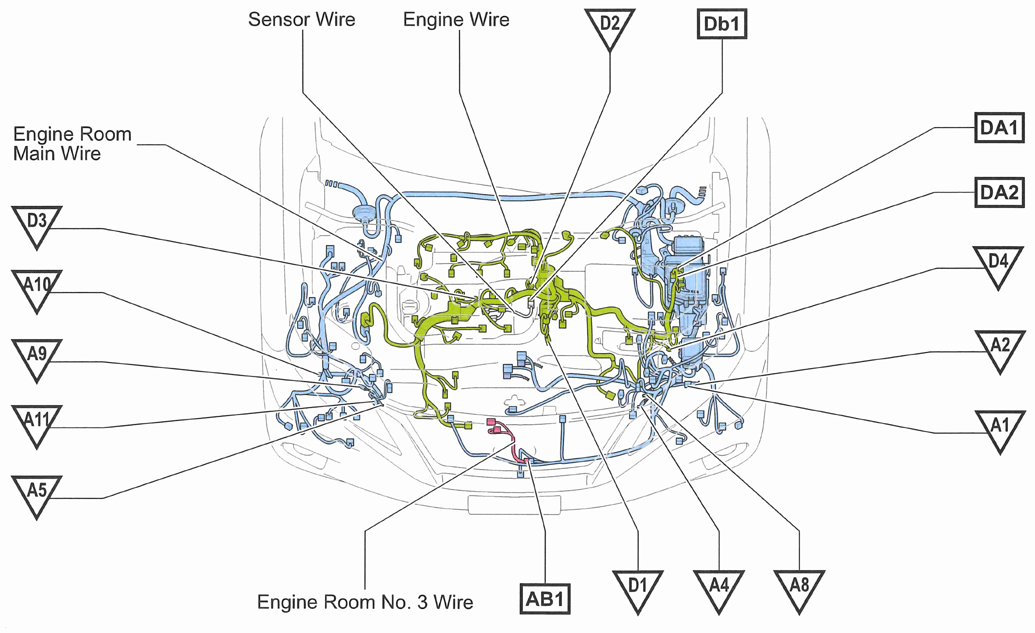

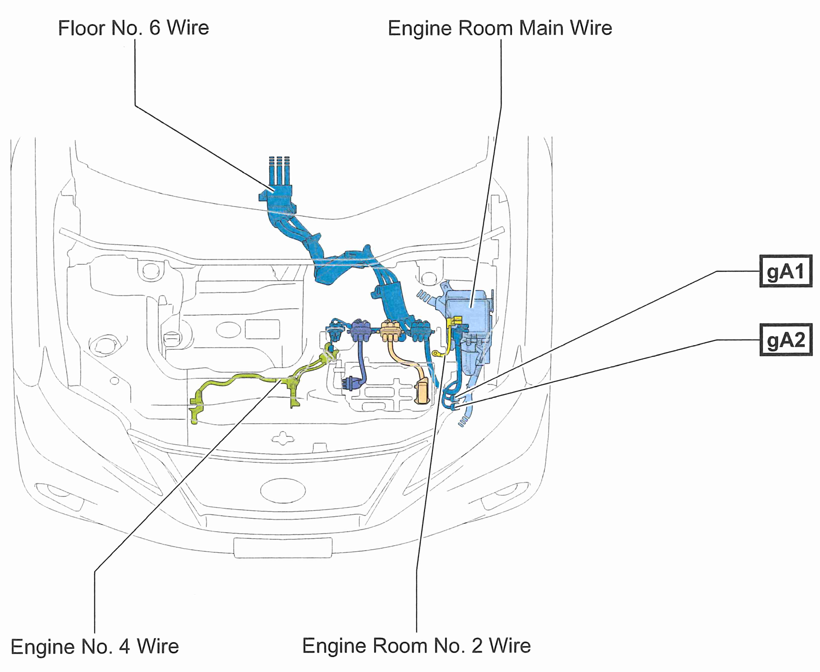

Fig 27: Engine Compartment

G00477389

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Engine Compartment

G00477390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Left/Right Kick Panels

G00477391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

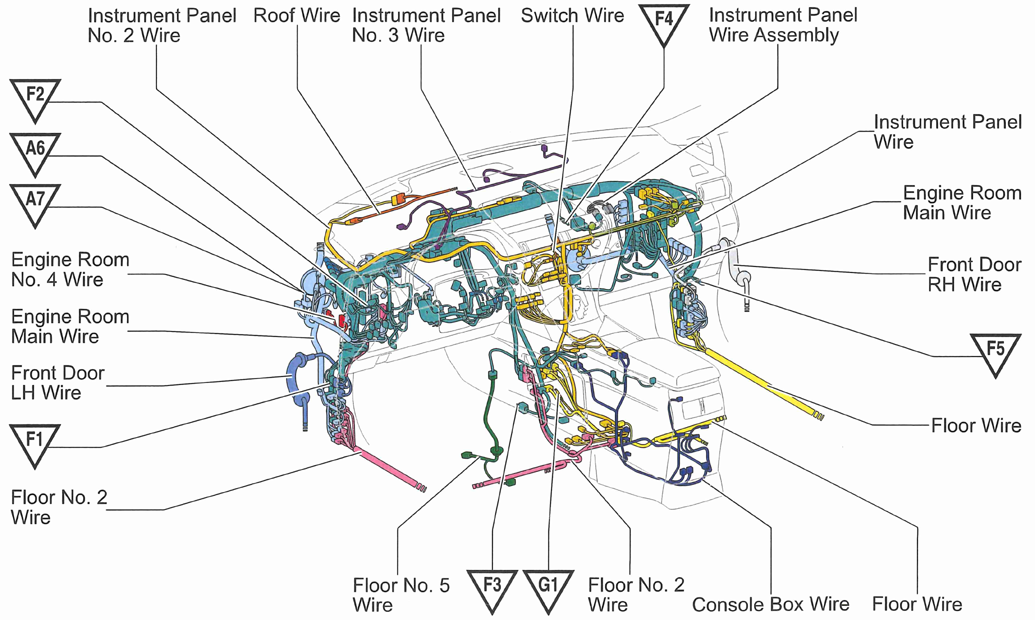

Fig 30: Dash & Center Floor Console

G00477392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

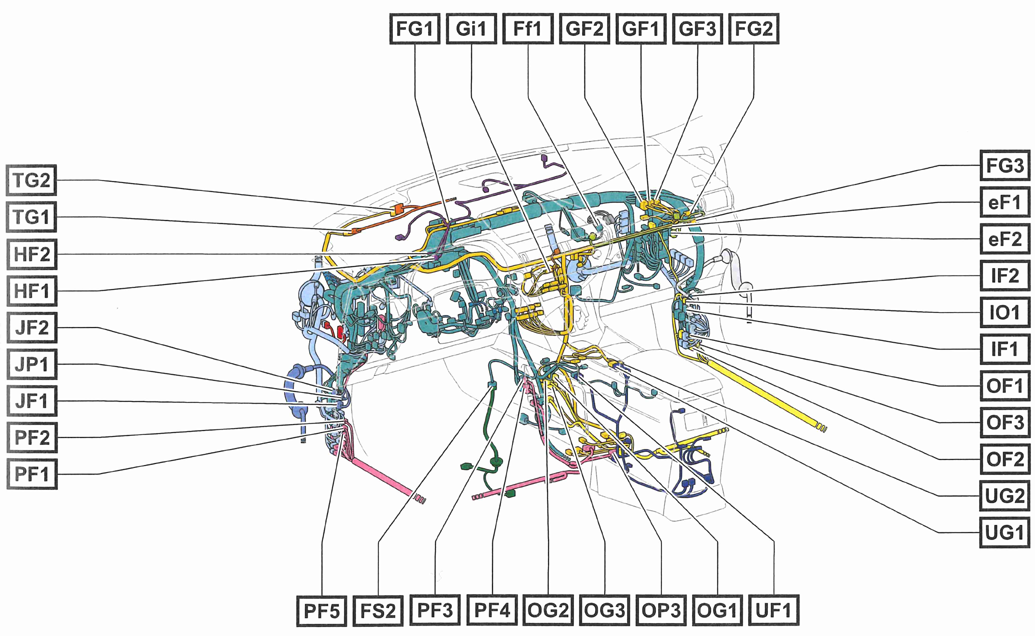

Fig 31: Dash & Center Floor Console

G00477393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

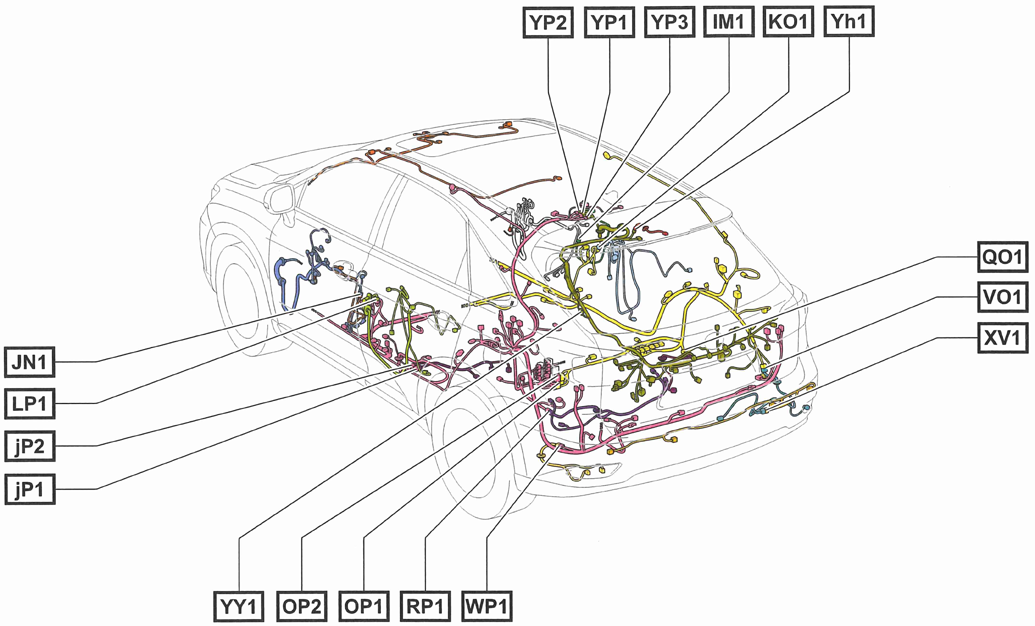

Fig 32: Vehicle Overview

G00477394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

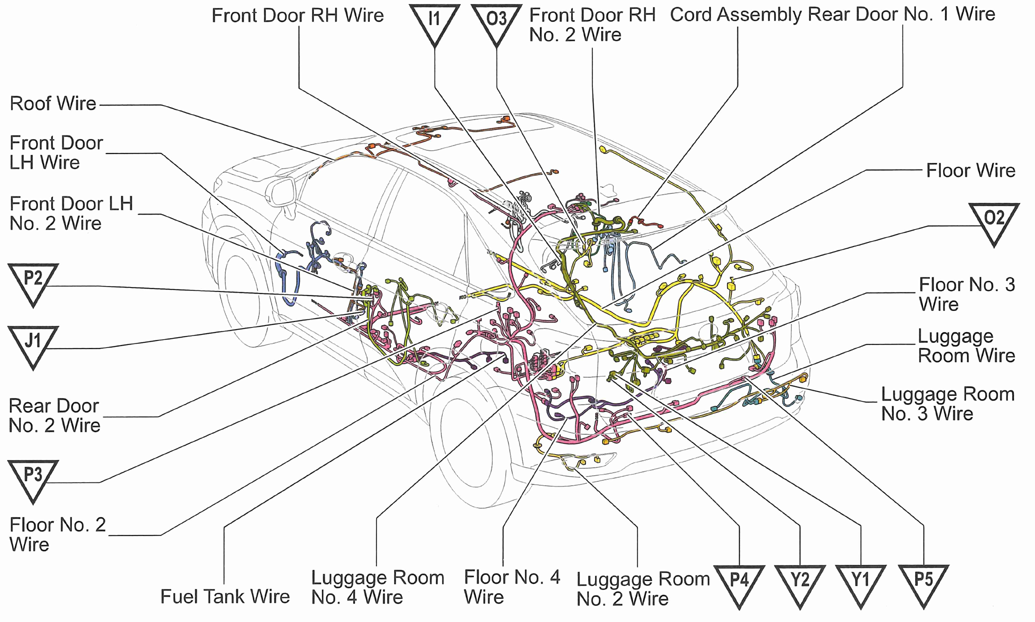

Fig 33: Vehicle Overview

G00477395

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

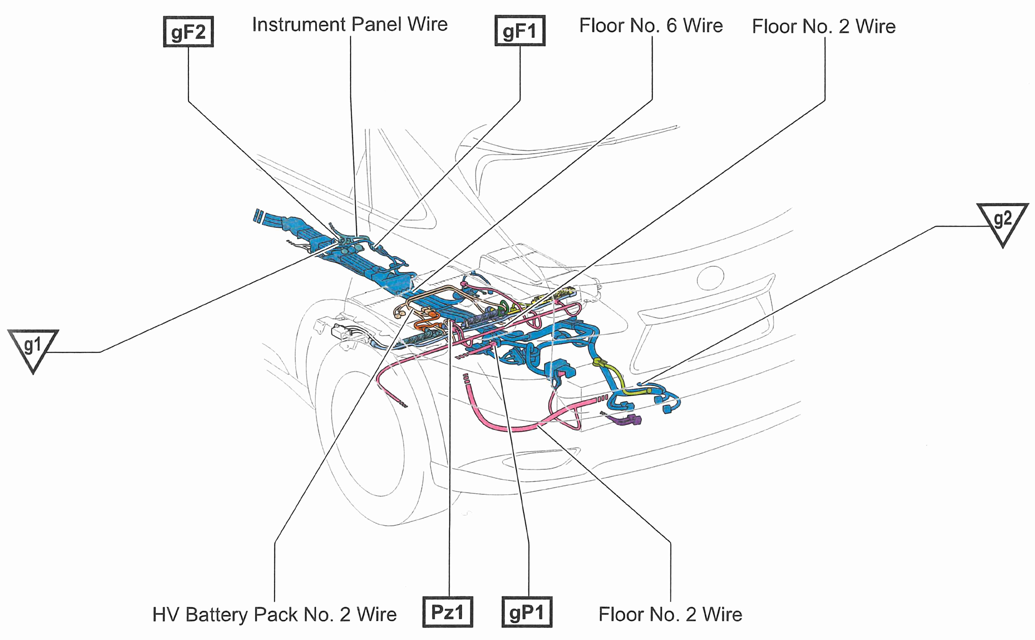

Fig 34: Rear Of Vehicle

G00477396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

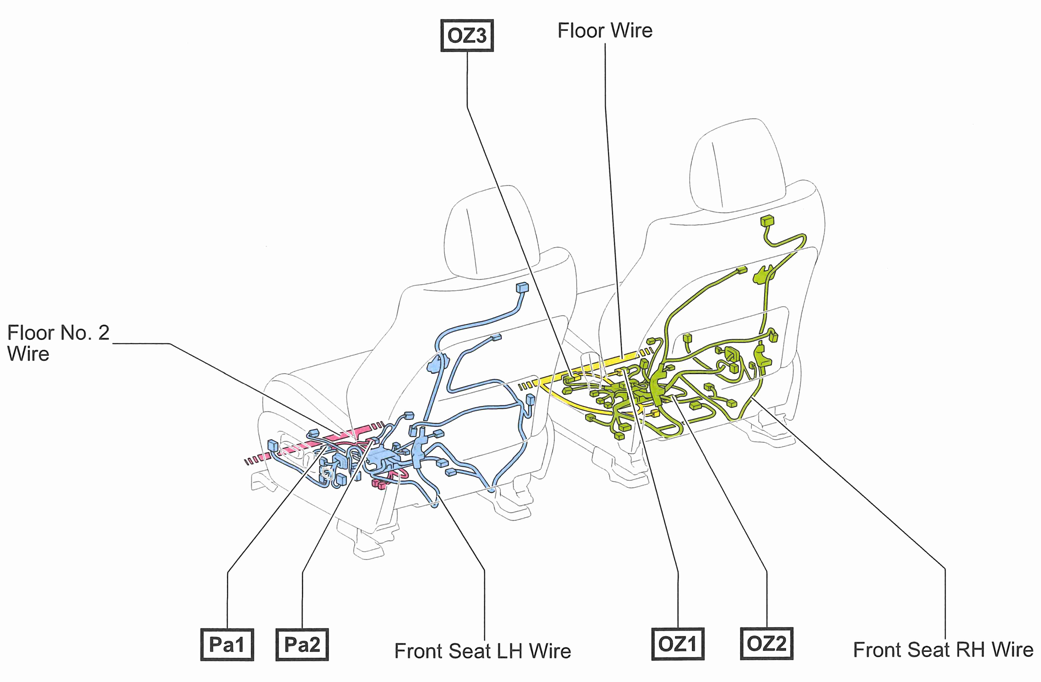

Fig 35: Front Seats

G00477397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

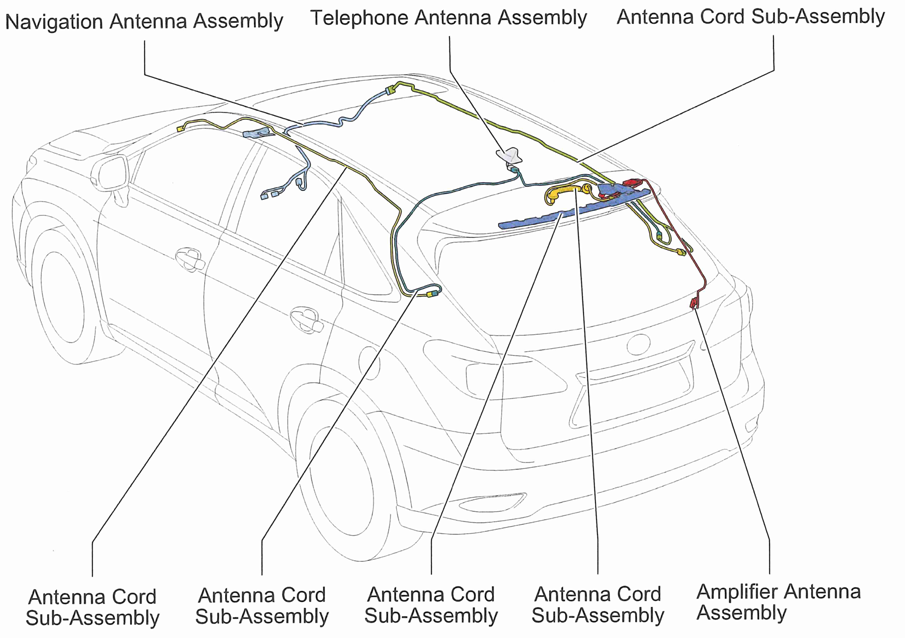

Fig 36: Vehicle Overview

G00477398

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
