Tire Pressure Warning System: Notes

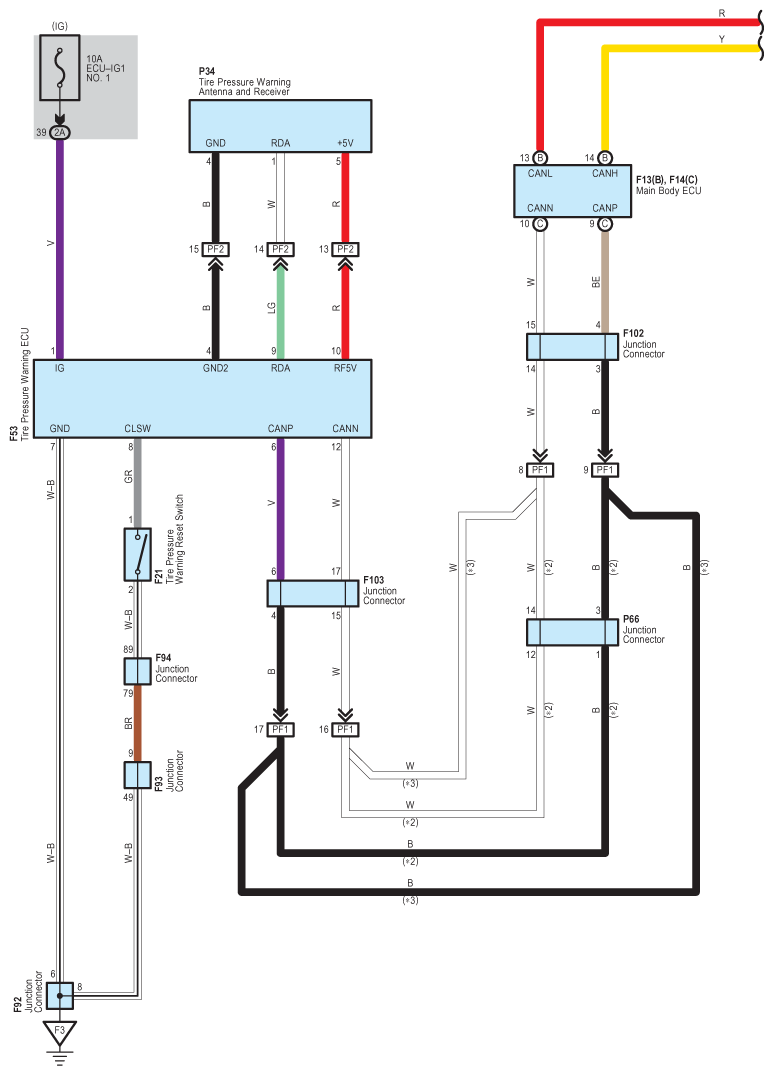

Fig 1: Tire Pressure Warning System - Circuit Diagram (1 Of 3)
G07574456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

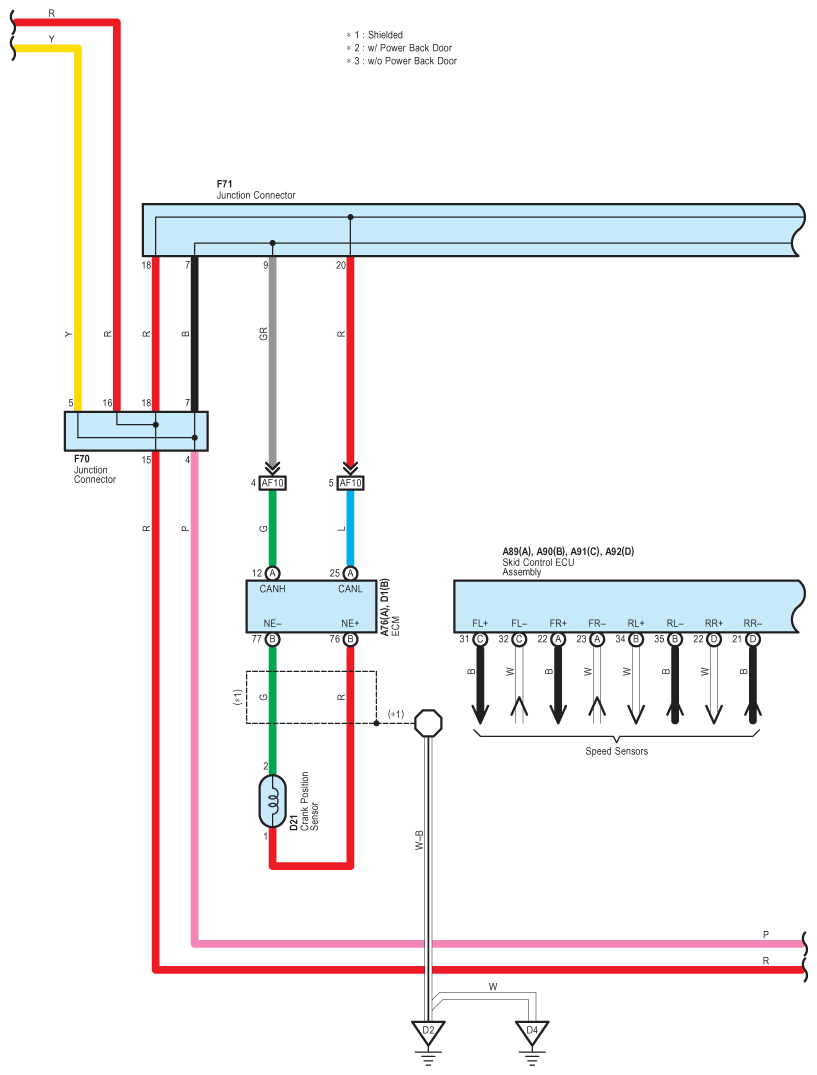

Fig 2: Tire Pressure Warning System - Circuit Diagram (2 Of 3)
G07574457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

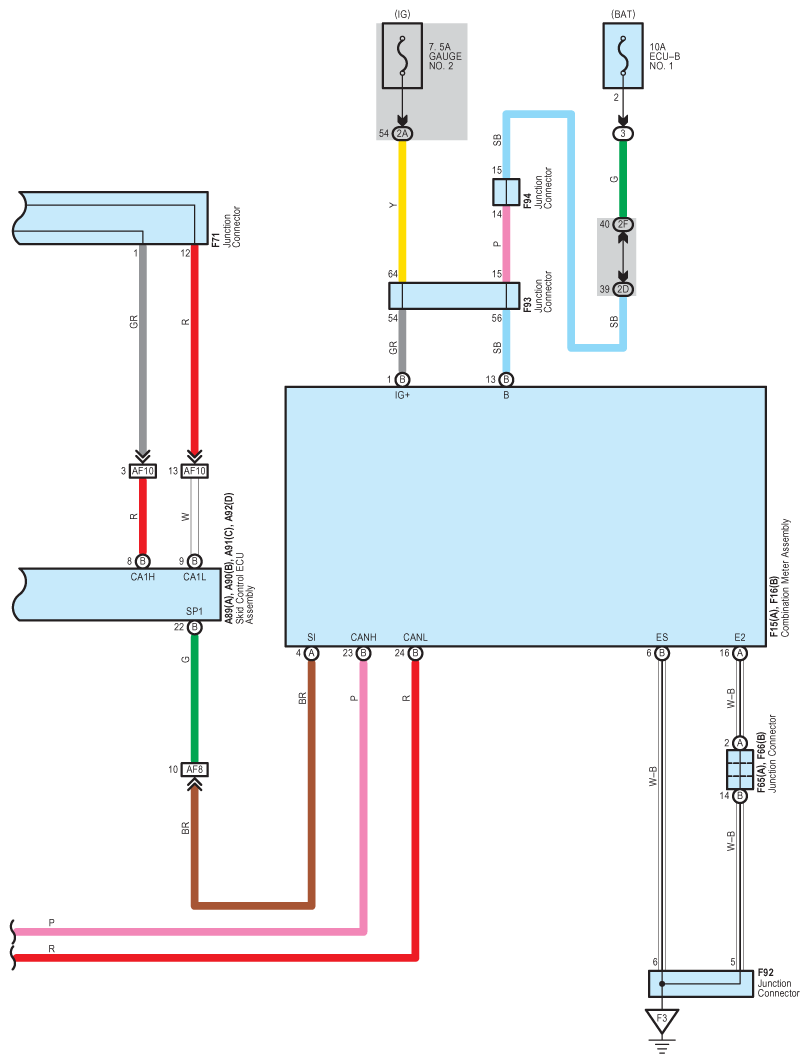

Fig 3: Tire Pressure Warning System - Circuit Diagram (3 Of 3)
G07574458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
