Theft Deterrent: Notes

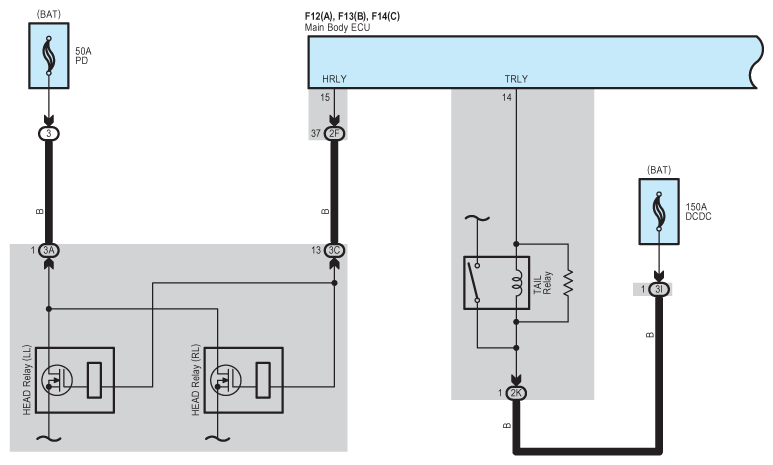

Fig 1: Theft Deterrent - Circuit Diagram (1 Of 9)

G07574416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

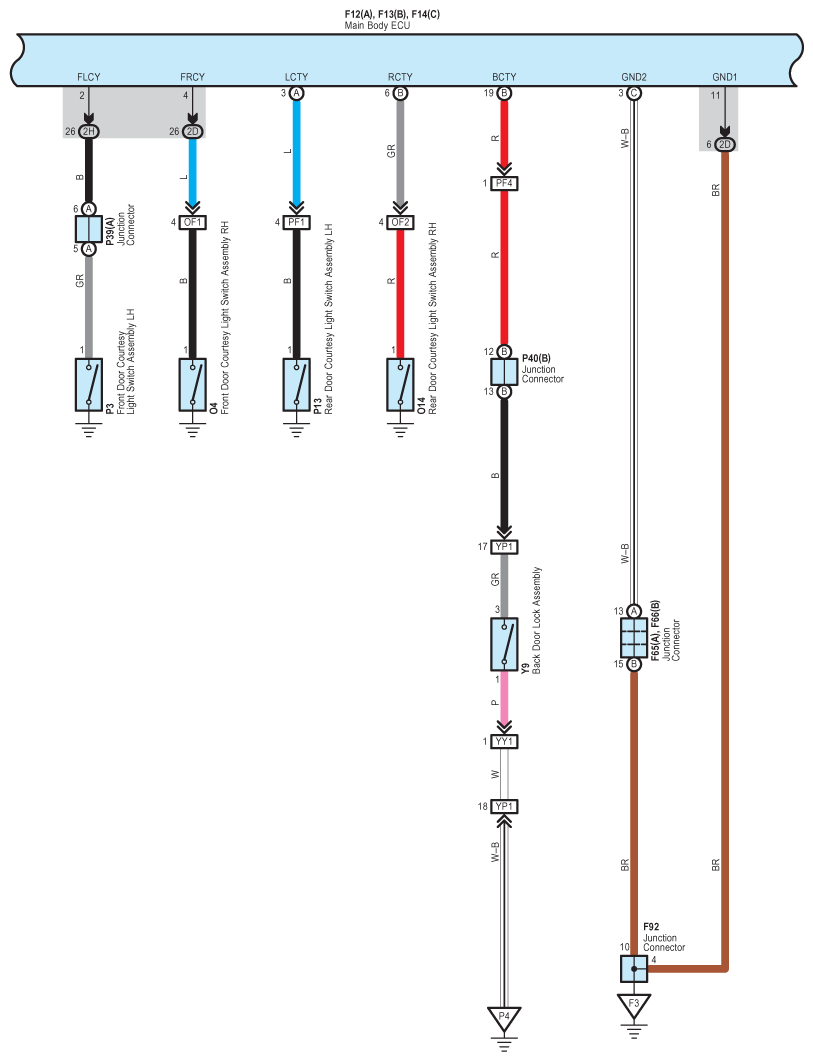

Fig 2: Theft Deterrent - Circuit Diagram (2 Of 9)

G07574417

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

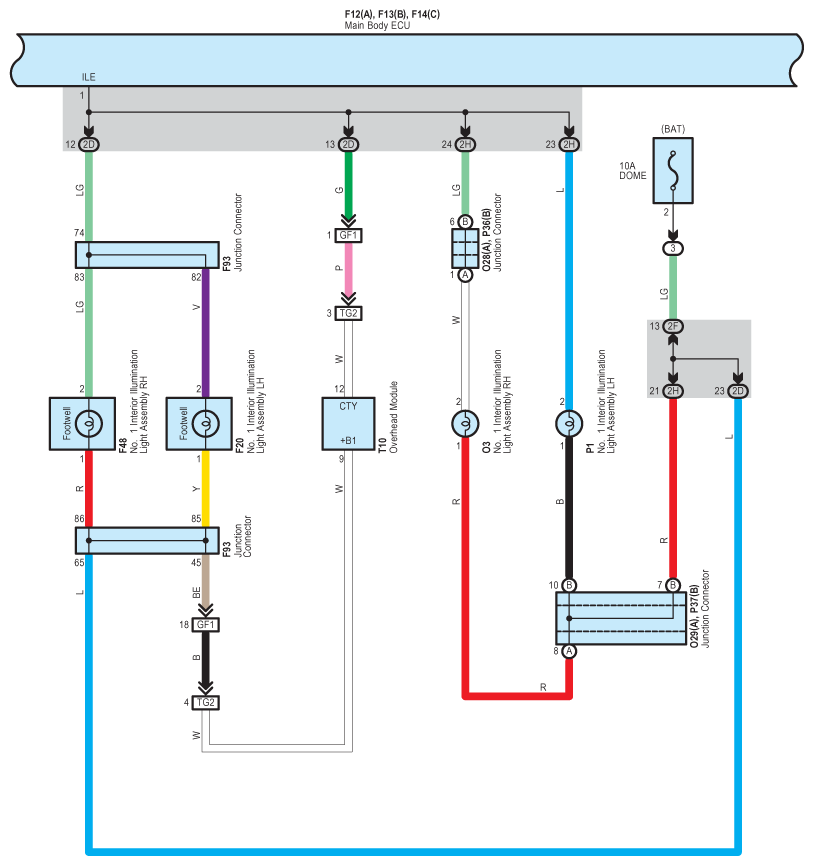

Fig 3: Theft Deterrent - Circuit Diagram (3 Of 9)

G07574418

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

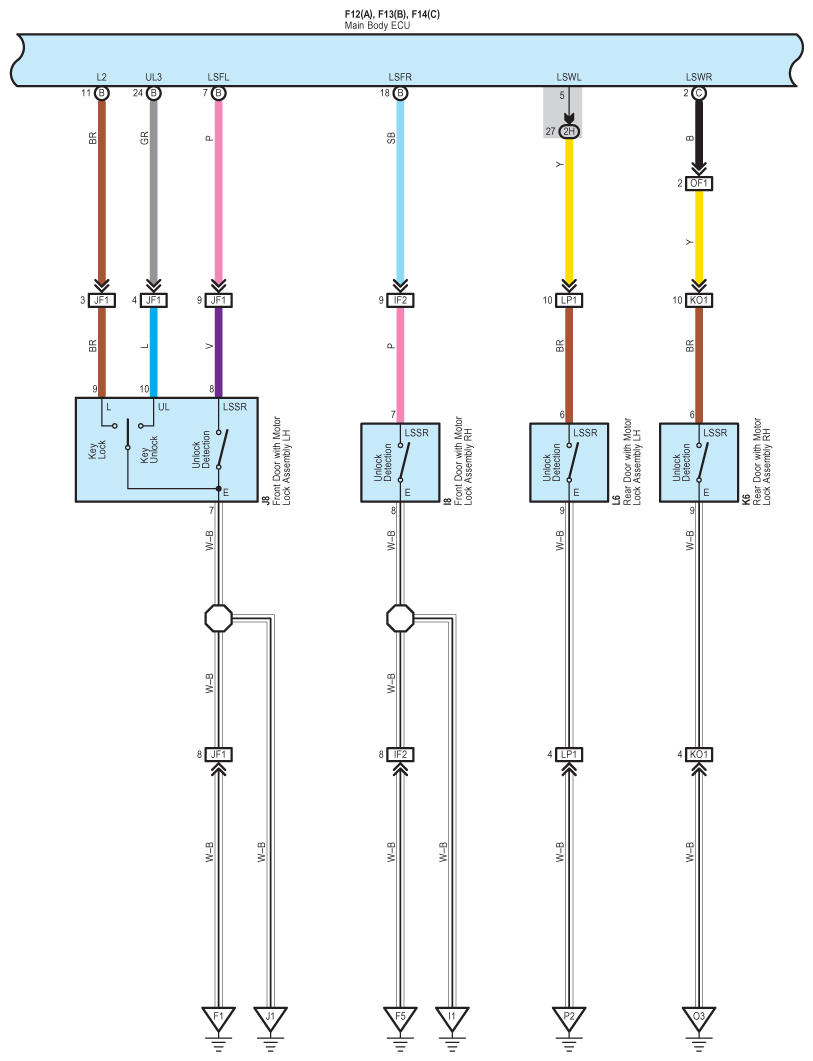

Fig 4: Theft Deterrent - Circuit Diagram (4 Of 9)

G07574419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

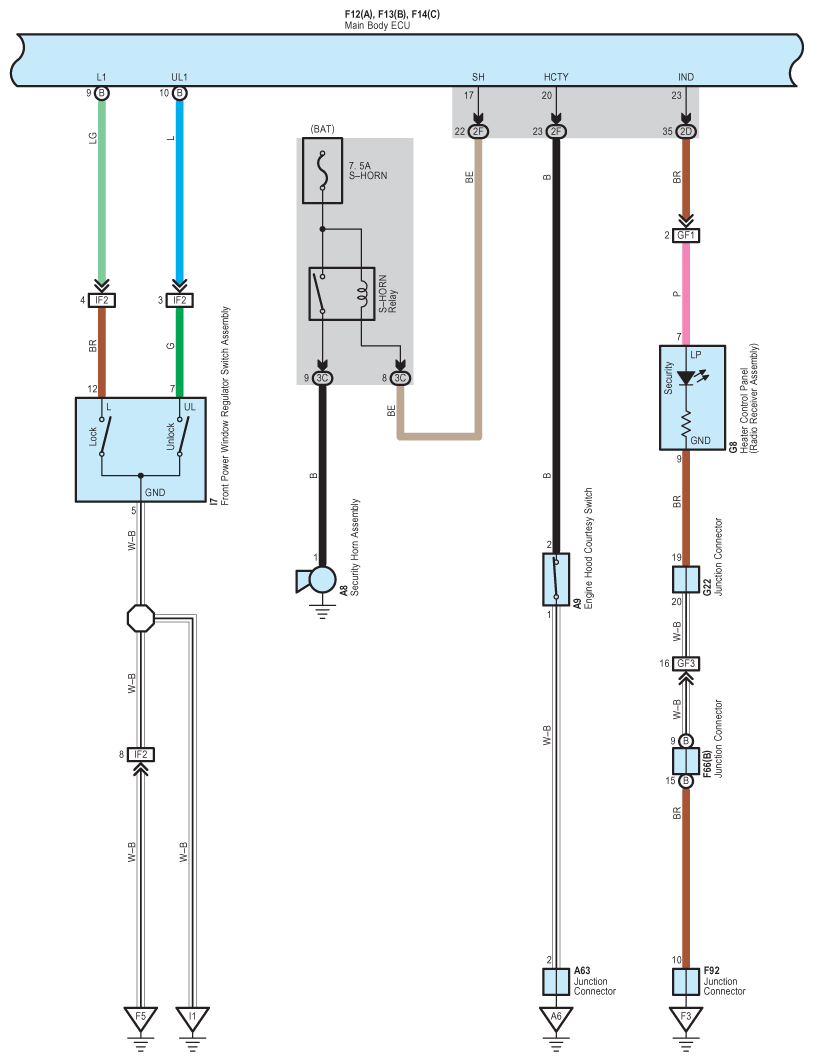

Fig 5: Theft Deterrent - Circuit Diagram (5 Of 9)

G07574420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

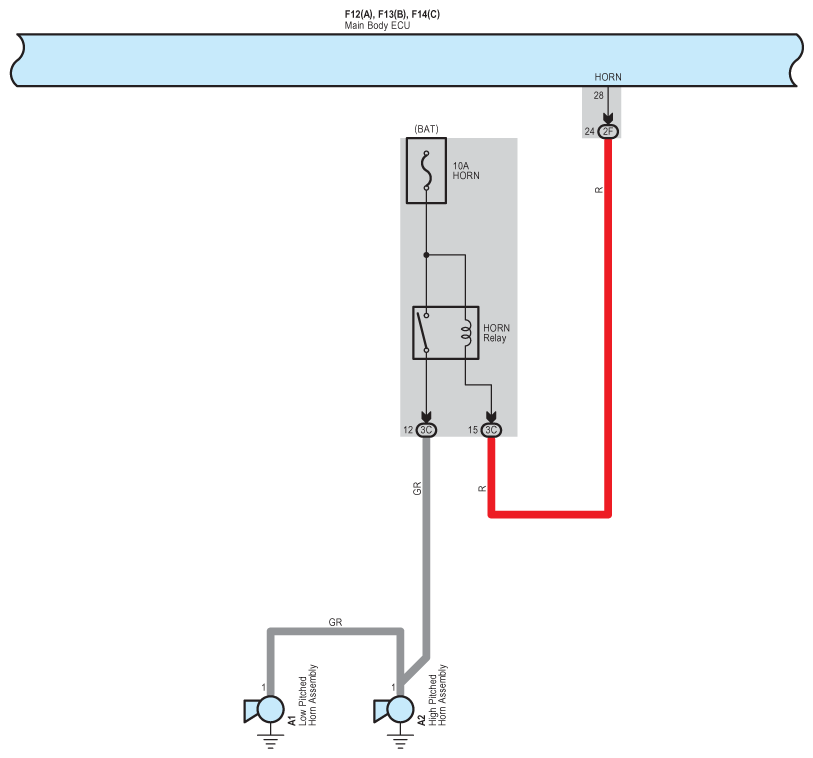

Fig 6: Theft Deterrent - Circuit Diagram (6 Of 9)

G07574421

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Theft Deterrent - Circuit Diagram (7 Of 9)

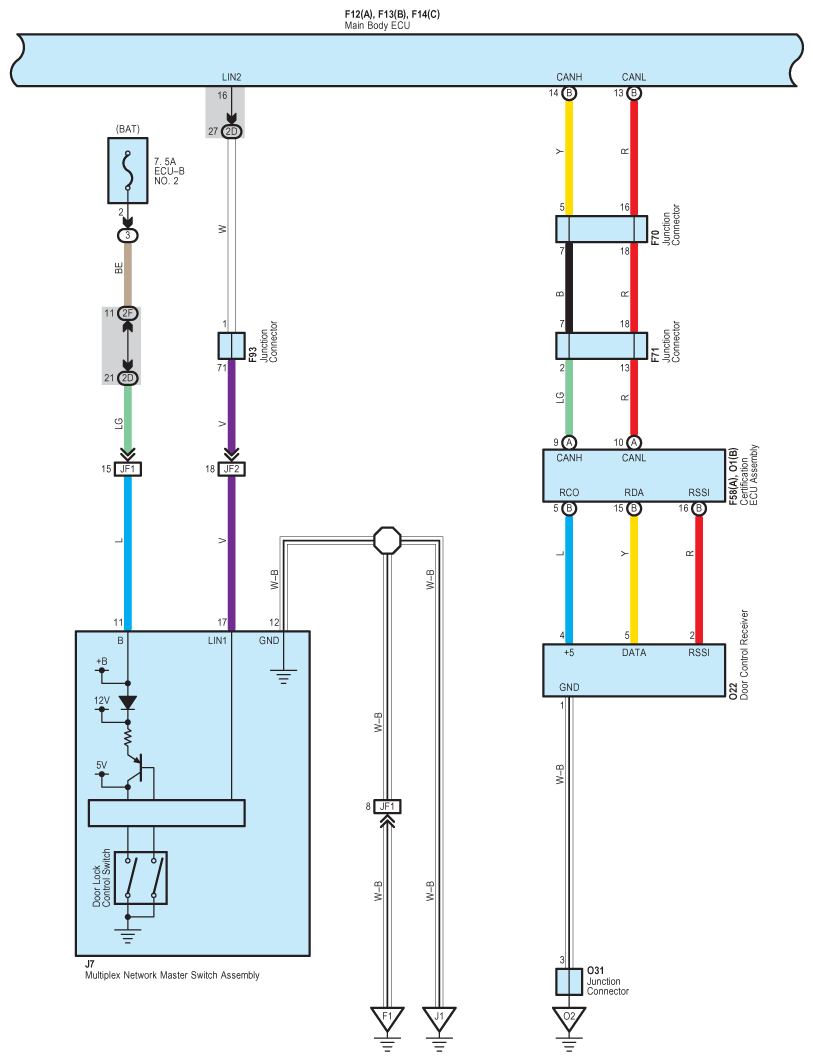

G07574422

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

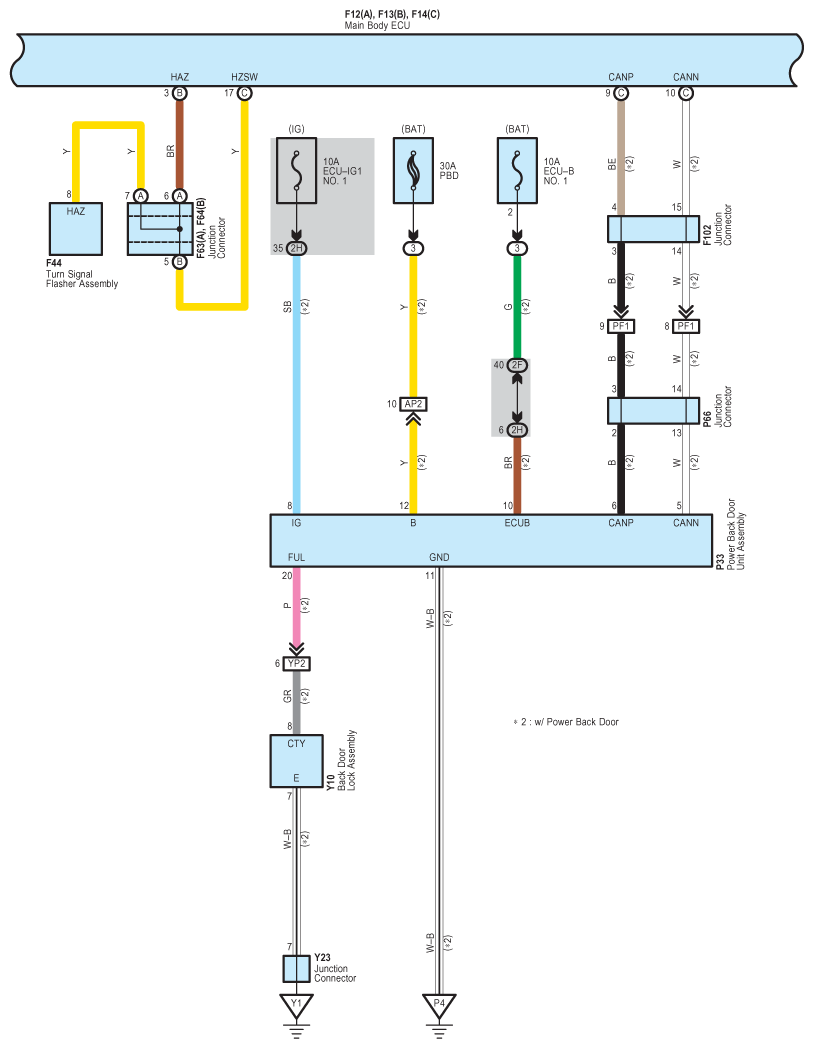

Fig 8: Theft Deterrent - Circuit Diagram (8 Of 9)

G07574423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

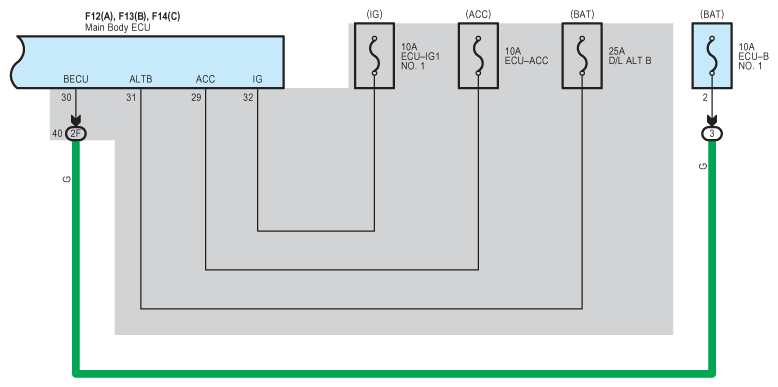

Fig 9: Theft Deterrent - Circuit Diagram (9 Of 9)

G07574424

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
