Cooling Fan: Notes

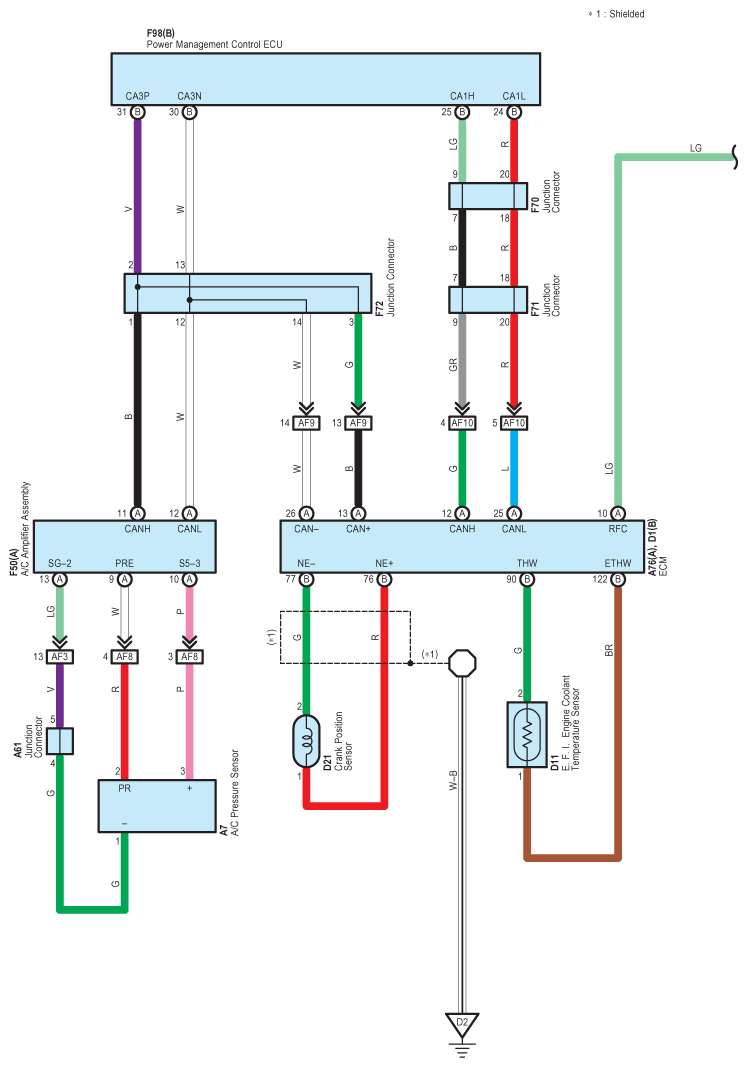

Fig 1: Cooling Fan - Circuit Diagram (1 Of 2)
G07574612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

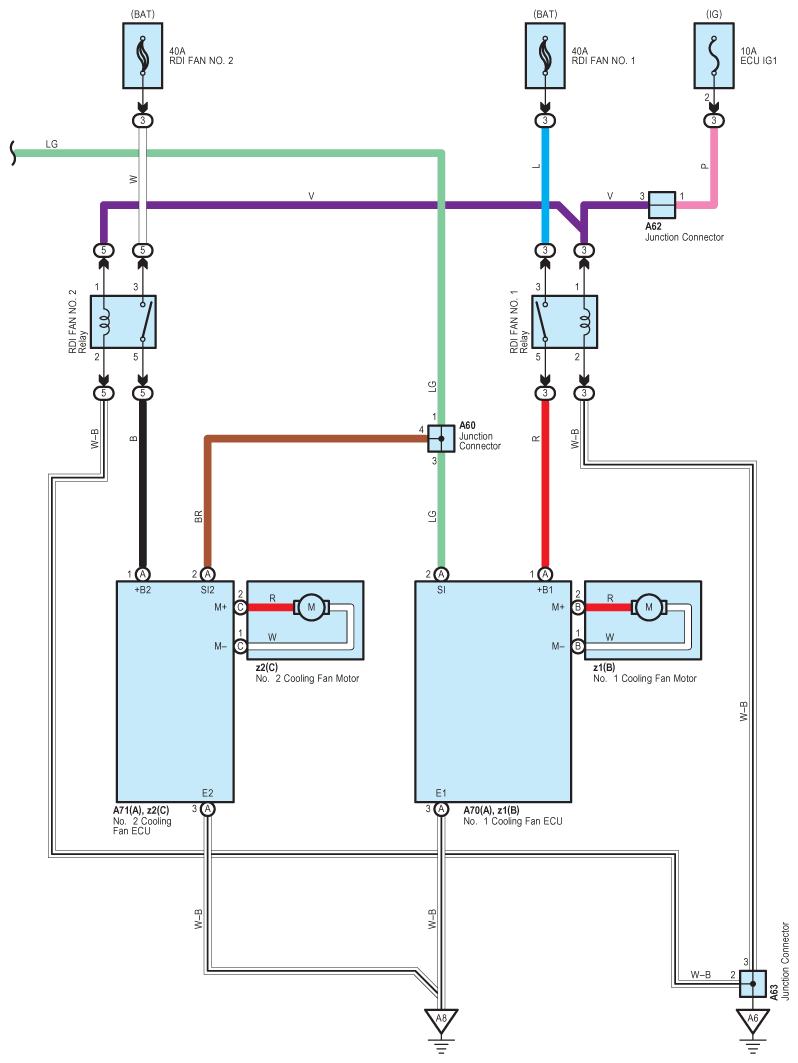

Fig 2: Cooling Fan - Circuit Diagram (2 Of 2)
G07574613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
