Installation (To 08/2009): Installation

INSTALL ENGINE SWITCH

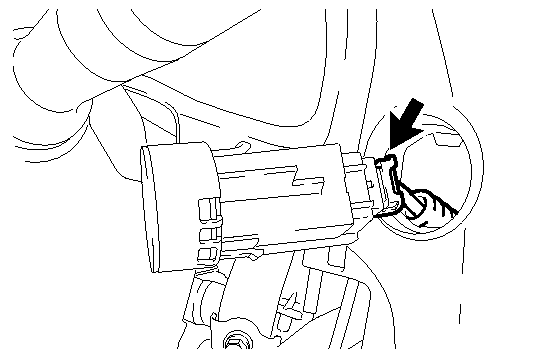

1. Connect the engine switch connector.

  Fig 1: Identifying Engine Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

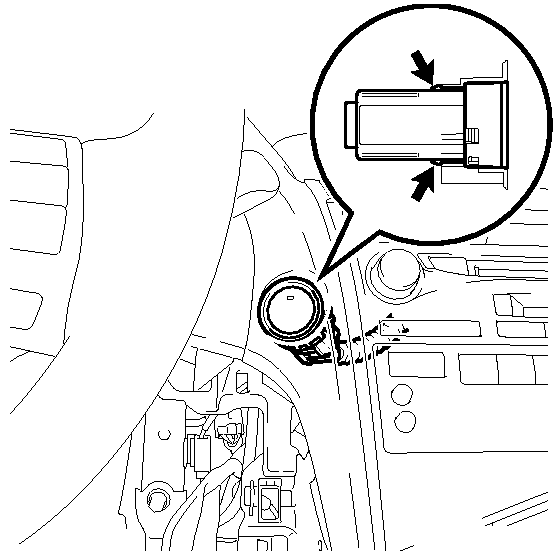

2. Attach the 2 claws to install the engine switch.

  Fig 2: Identifying Engine Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 36
INSTALL NO. 1 SWITCH HOLE BASE . Refer to INSTALLATION - Step 37
INSTALL INSTRUMENT PANEL GARNISH LH . Refer to INSTALLATION - Step 38
INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH . Refer to INSTALLATION - Step 59
INSTALL FRONT DOOR SCUFF PLATE LH . Refer to INSTALLATION - Step 60
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
