Charge Warning Light Comes ON while Driving: Procedure

1. Check the lock function with the pulley installed in the vehicle.
   1. Visually check that the rotor in the generator operates with the engine running.
2. Check the lock function with the pulley removed from the vehicle.
   1. Remove the generator pulley cap.
   2. Hold the generator rotor using SST, and turn the clutch pulley clockwise to check that the outer ring locks. Refer to DISASSEMBLY - Step 5 .

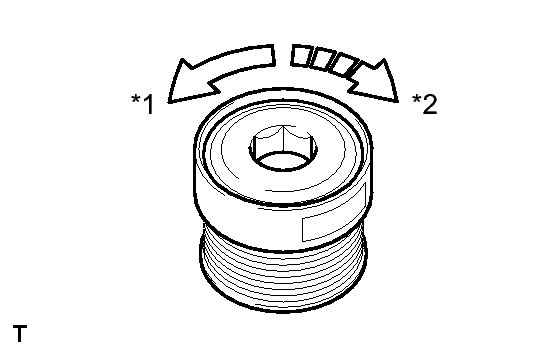

      Fig 1: Checking Lock Function Of Generator Clutch Pulley

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Free
      *2	Lock

      OK

      The outer ring locks.

   • SST: 09820-63021

NG → See step   3

OK: Go to next step

1. Start the engine and visually check the clutch pulley for looseness.

   OK

   The clutch pulley is not loose.

NG → TIGHTEN GENERATOR CLUTCH PULLEY TO THE SPECIFIED TORQUE

OK → See step   4
