All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Procedure

1. When the door control switch on the master switch assembly is operated, check that the doors unlock and lock according to switch operation. Refer to OPERATION CHECK .

   OK

   Door locks operate normally.

NG → See step   15

OK: Go to next step

1. Check if another registered key is available.

   Result

   Result	Proceed to
   Another registered key is not available.	A
   Another registered key is available.	B

B → See step   4

A: Go to next step

1. Register a new key. Refer to REGISTRATION .

NEXT: Go to next step

1. Using the key registered in the previous step or another registered key, check that the entry function operates normally. Refer to OPERATION CHECK .

   OK

   Entry function operates normally.

NG → See step   7

OK: Go to next step

1. Check that the transmitter LED illuminates each time when the switch is pushed 3 times.

   Result

   Result	Proceed to
   Transmitter LED does not illuminate at all when switch is pushed 3 times.	A
   Transmitter LED illuminates each time when switch is pushed 3 times.	B
   Transmitter LED does not illuminate the second or third time.	C

   HINT:

   If the transmitter LED does not illuminate the second or third time, replace the transmitter battery as it is depleted.

B → REPLACE ELECTRICAL KEY TRANSMITTER

C → See step   18

A: Go to next step

1. Remove the battery from the key that does not operate. Attach a lead wire (0.6 mm (0.0236 in.) or less in diameter including wire sheath) with tape or equivalent to the negative (-) terminal. Refer to REPLACEMENT .

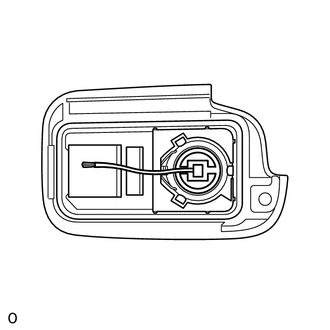

   Fig 1: Identifying Electrical Key Transmitter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   Do not wrap the wire around the terminal, wedge it between the terminals, or solder it. A terminal may be deformed or damaged, and the battery will not be able to be installed correctly.

2. Carefully pull the lead wire out from the position shown in the illustration and install the previously removed transmitter battery.
3. Using an oscilloscope, check the transmitter battery voltage waveform.

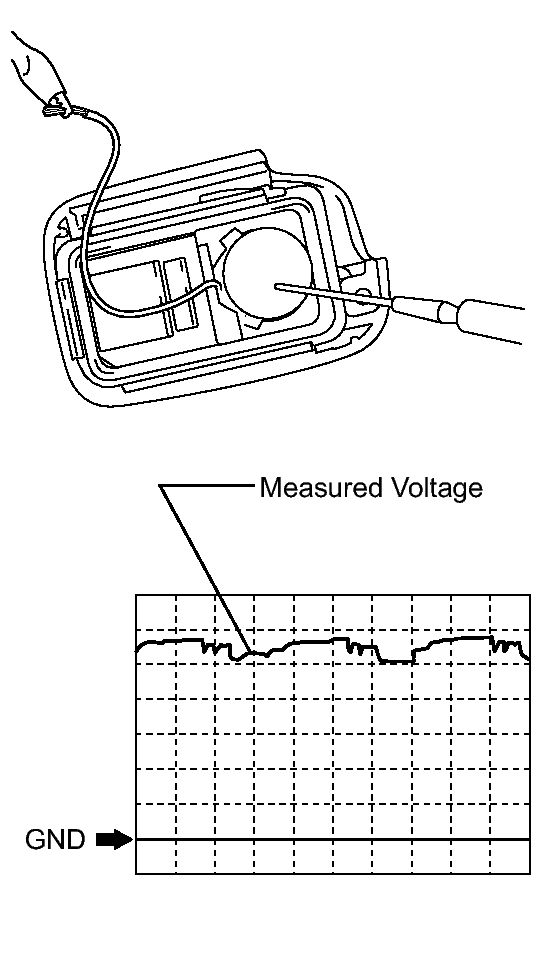

   Fig 2: Lead Wire & Transmitter Battery Voltage Waveform

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   When measuring the battery voltage, while operating the lock switch of a door outside handle assembly, bring the key within the entry operating range to perform the measurement. For the entry operating range, refer to System Description. Refer to SYSTEM DESCRIPTION .

   Standard Voltage

   Item	Content
   Tester Connection	Battery positive (+) - Battery negative (-)
   Tool Setting	0.5 V/DIV., 100 ms/DIV.
   Condition	Engine switch off, all doors closed and lock switch pushed
   Specified Condition	2.2 to 3.2 V (Refer to the waveform)

NG → See step   18

OK → REPLACE ELECTRICAL KEY TRANSMITTER

1. Bring the key near the door control receiver, and check the wireless function.

   HINT:

   • When the key is brought near the door control receiver, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result indicates that the problem only occurs in certain locations or times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   OK

   Wireless function operates normally.

NG → See step   8

OK → AFFECTED BY WAVE INTERFERENCE

1. Check if functions other than the entry function operate when the engine switch is off.

   Result

   Result	Proceed to
   Other functions do not operate.	A
   Other functions operate.	B

   HINT:

   Perform this check using functions that do not require the engine switch to be on (ACC or IG) in order to operate.

B → See step   19

A: Go to next step

1. Remove the IMMOBI and ECU-B NO. 1 fuses from the engine room relay block and junction block.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   IMMOBI fuse	Always	Below 1 Ω
   ECU-B NO. 1 fuse	Always	Below 1 Ω

NG → REPLACE FUSE (IMMOBI, ECU-B NO. 1)

OK: Go to next step

1. Install the IMMOBI and ECU-B NO. 1 fuses to the engine room relay block and junction block.
2. Disconnect the certification ECU (smart key ECU assembly) connector.

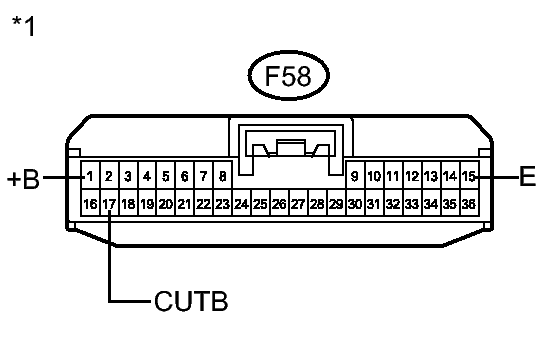

   Fig 3: Certification ECU (Smart Key ECU Assembly) Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F58-1 (+B) - Body ground	Always	11 to 14 V
   F58-17 (CUTB) - Body ground	Always	11 to 14 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F58-15 (E) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the door control receiver assembly connector.

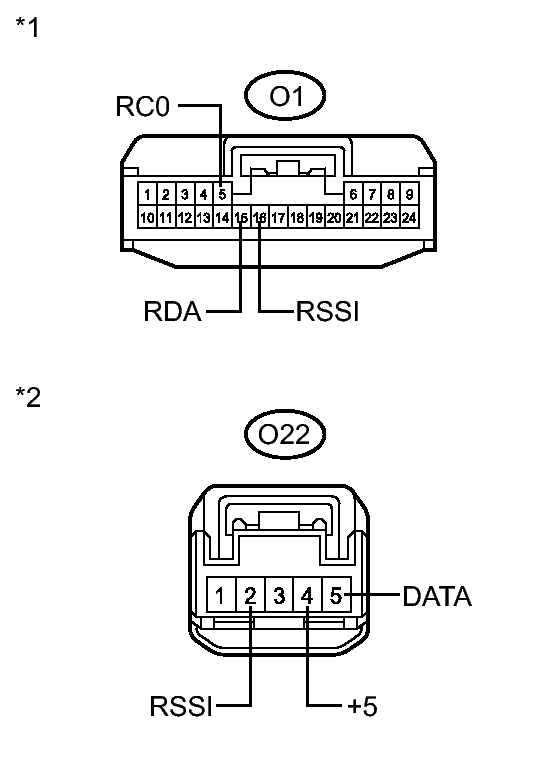

   Fig 4: Door Control Receiver Assembly Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O1-5 (RC0) - O22-4 (+5)	Always	Below 1 Ω
   O1-15 (RDA) - O22-5 (DATA)	Always	Below 1 Ω
   O1-16 (RSSI) - O22-2 (RSSI)	Always	Below 1 Ω
   O1-5 (RC0) - Body ground	Always	10 kΩ or higher
   O1-15 (RDA) - Body ground	Always	10 kΩ or higher
   O1-16 (RSSI) - Body ground	Always	10 kΩ or higher
   O22-4 (+5) - Body ground	Always	10 kΩ or higher
   O22-5 (DATA) - Body ground	Always	10 kΩ or higher
   O22-2 (RSSI) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))
   *2	Front view of wire harness connector (to Door Control Receiver Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

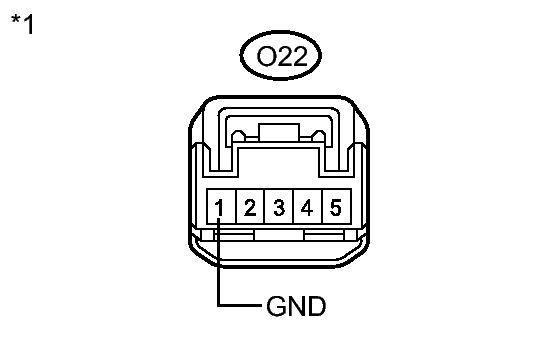

   Fig 5: O22 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O22-1 (GND) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Door Control Receiver Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the certification ECU (smart key ECU assembly) connector.
2. Reconnect the door control receiver assembly connector.
3. Measure the voltage according to the value(s) in the table below.

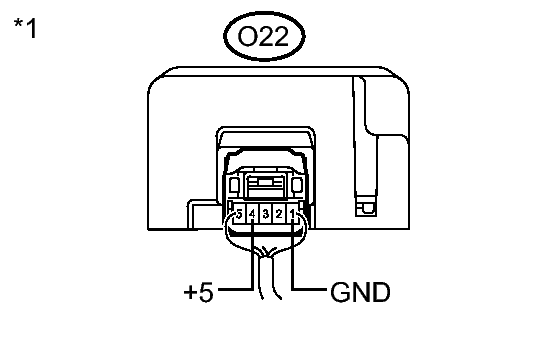

   Fig 6: O22 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   O22-4 (+5) - O22-1 (GND)	Engine switch off Lock or unlock switch on key not pushed	Below 1 V
   O22-4 (+5) - O22-1 (GND)	Engine switch off Lock or unlock switch on key pushed	4.5 to 5.5 V

   TEXT IN ILLUSTRATION



   *1	Component with harness connected (Door Control Receiver Assembly)

NG → See step   16

OK: Go to next step

1. Measure the voltage according to the value(s) in the table below.

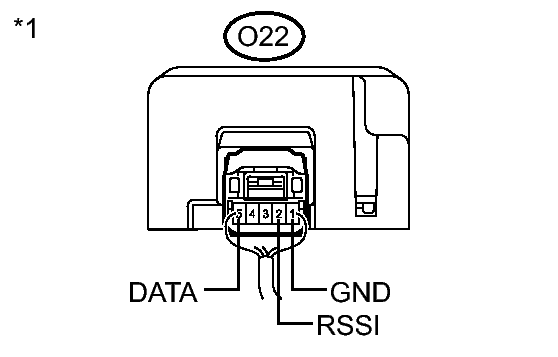

   Fig 7: O22 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   O22-2 (RSSI) - O22-1 (GND)	Engine switch off All doors locked Lock or unlock switch on key not pushed	11 to 14 V
   O22-2 (RSSI) - O22-1 (GND)	Engine switch off All doors locked Lock or unlock switch on key pushed	Below 2 V
   O22-5 (DATA) - O22-1 (GND)	Engine switch off	Pulse between 11 to 14 V occurs regularly

   TEXT IN ILLUSTRATION



   *1	Component with harness connected (Door Control Receiver Assembly)

NG → See step   17

OK → See step   16
