Parts Location: Illustration

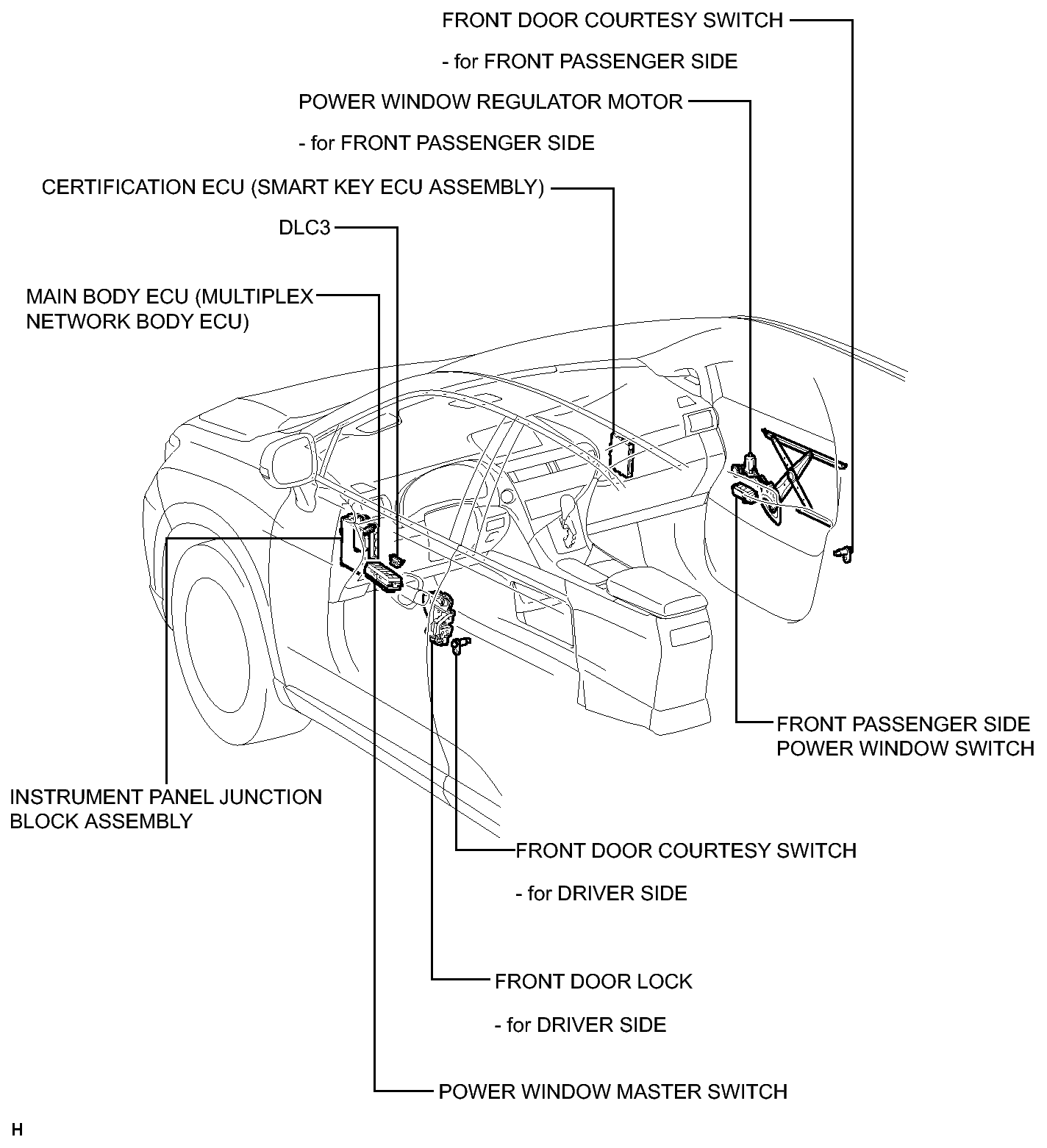

Fig 1: Identifying Power Window Control System Components (1 Of 2)
GTY259592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

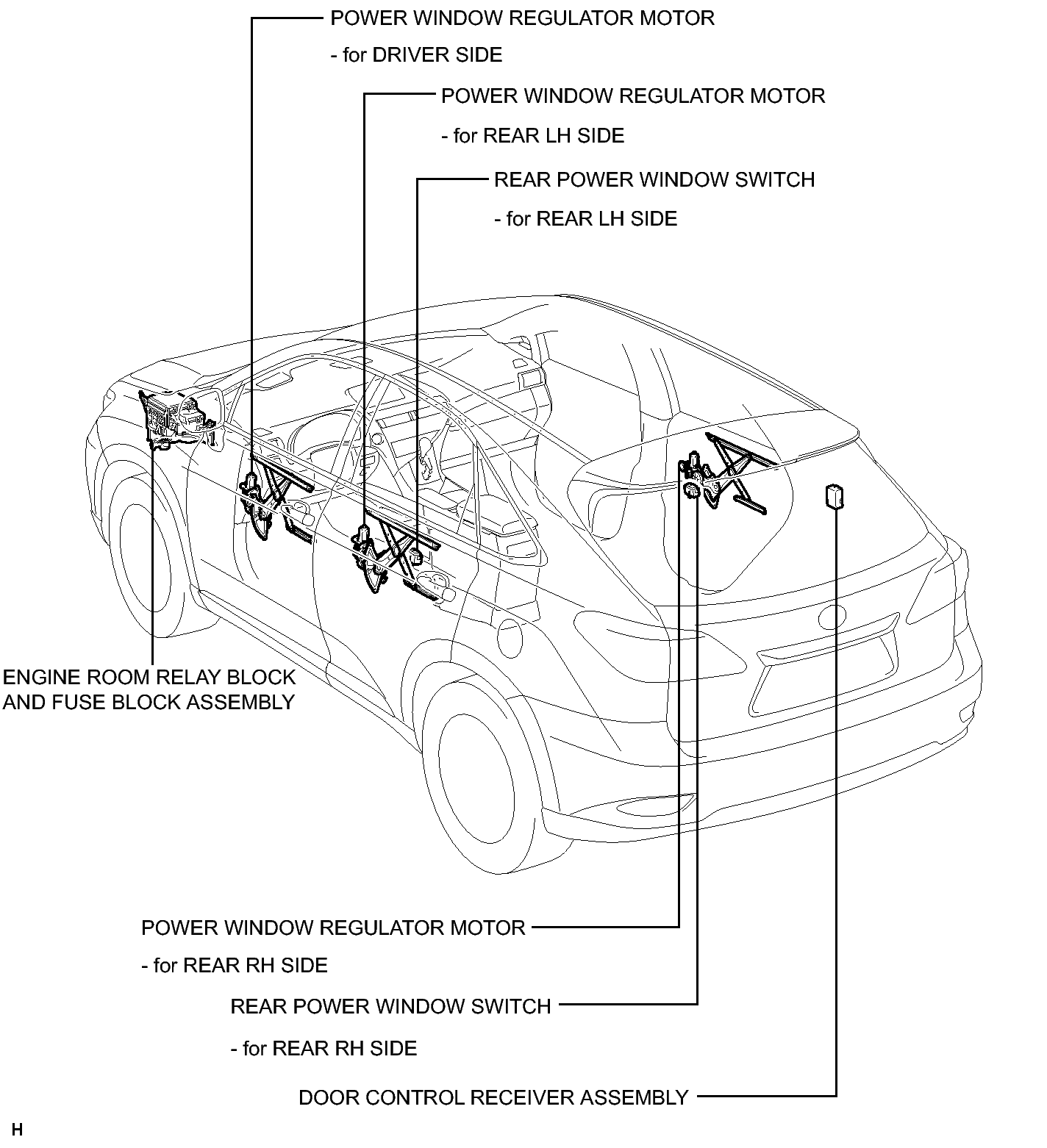

Fig 1: Identifying Power Window Control System Components (2 Of 2)
GTY274423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
