Control Valve Assembly: Components: Illustration

Fig 1: Identifying Control Valve Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY148711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

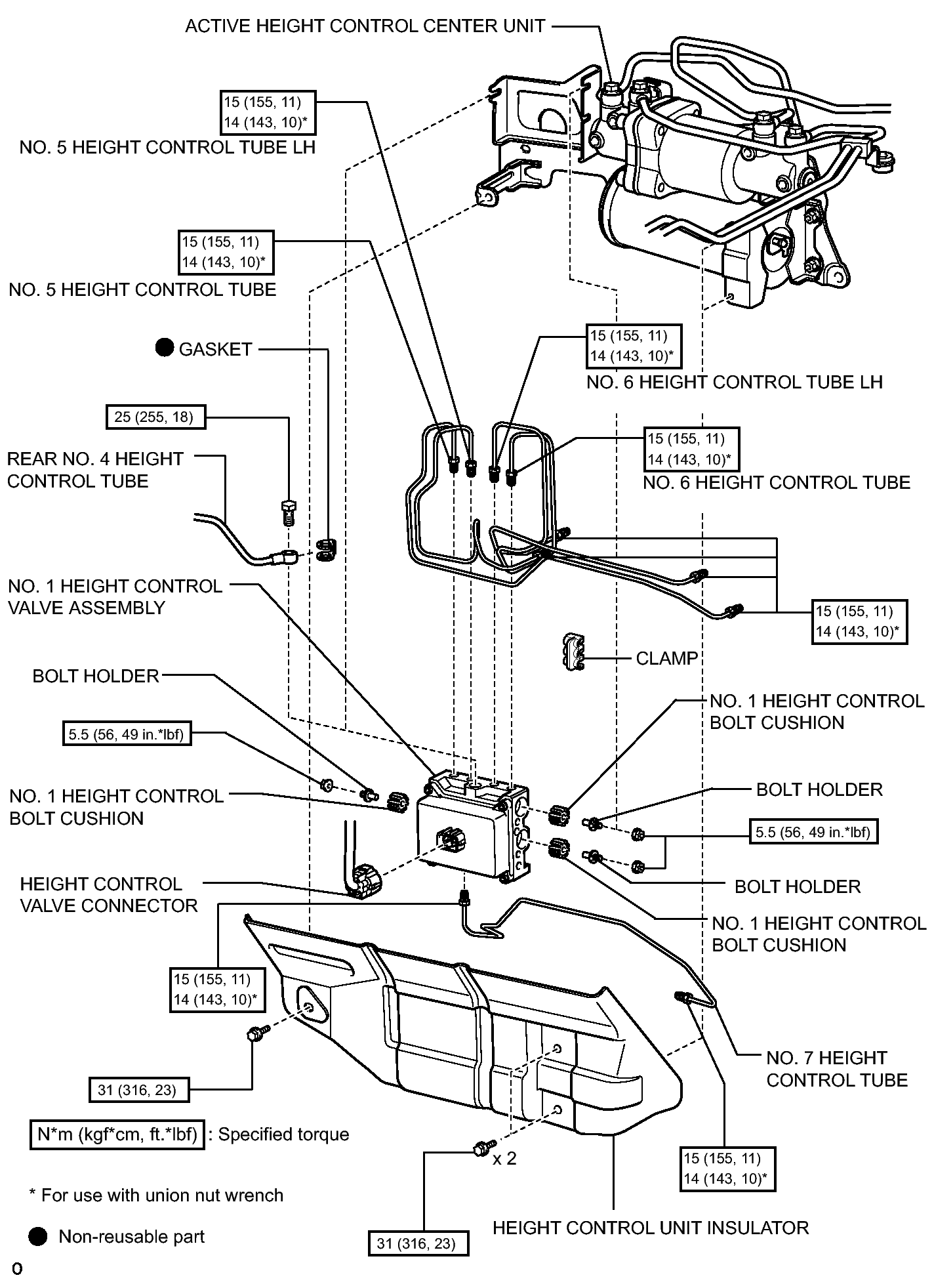

Fig 1: Identifying Control Valve Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY109617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
