Access Mode Switch: Components: Illustration

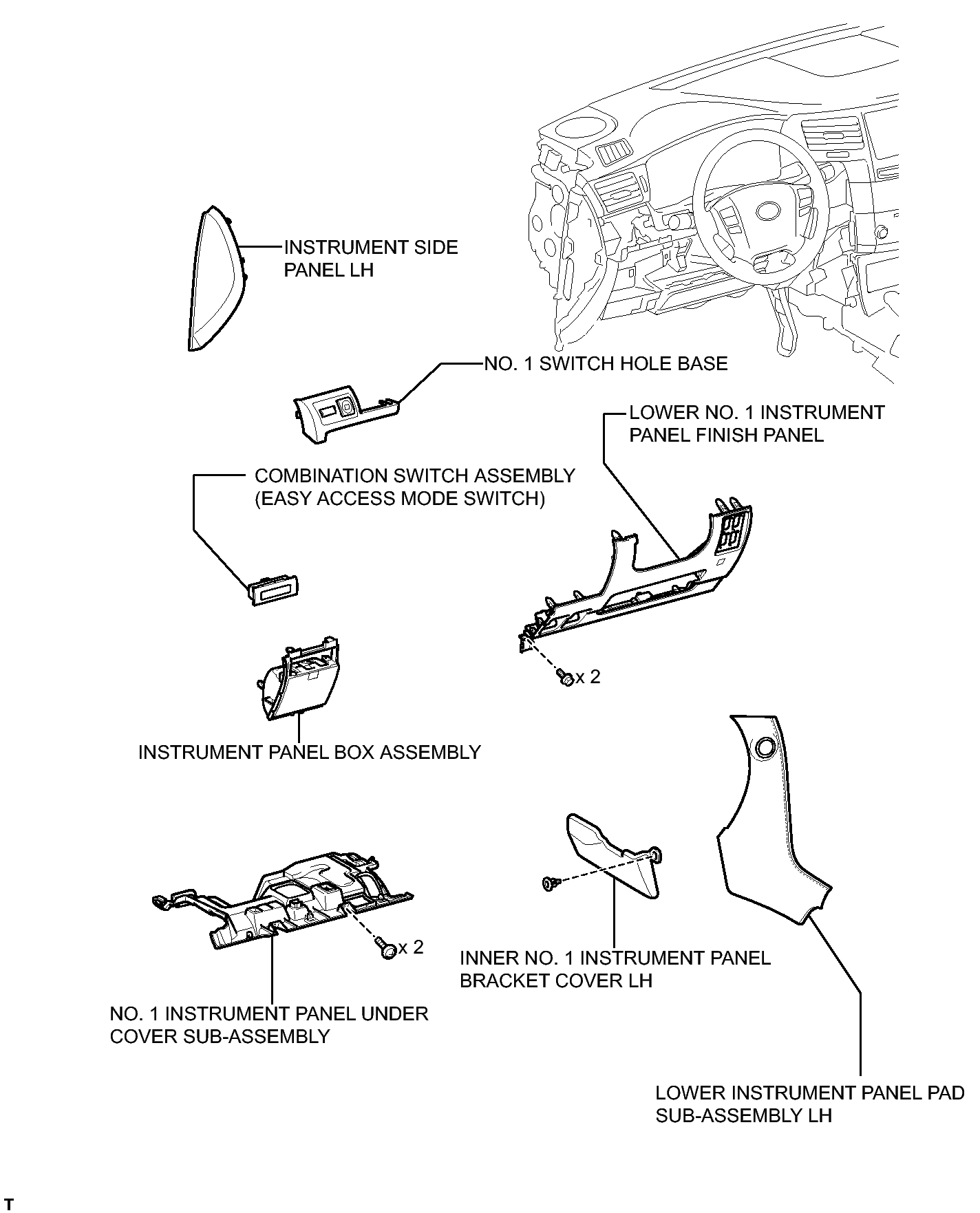

Fig 1: Identifying Access Mode Switch Replacement Components

GTY139547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
