Seat Belt Control Ecu: Components: Illustration

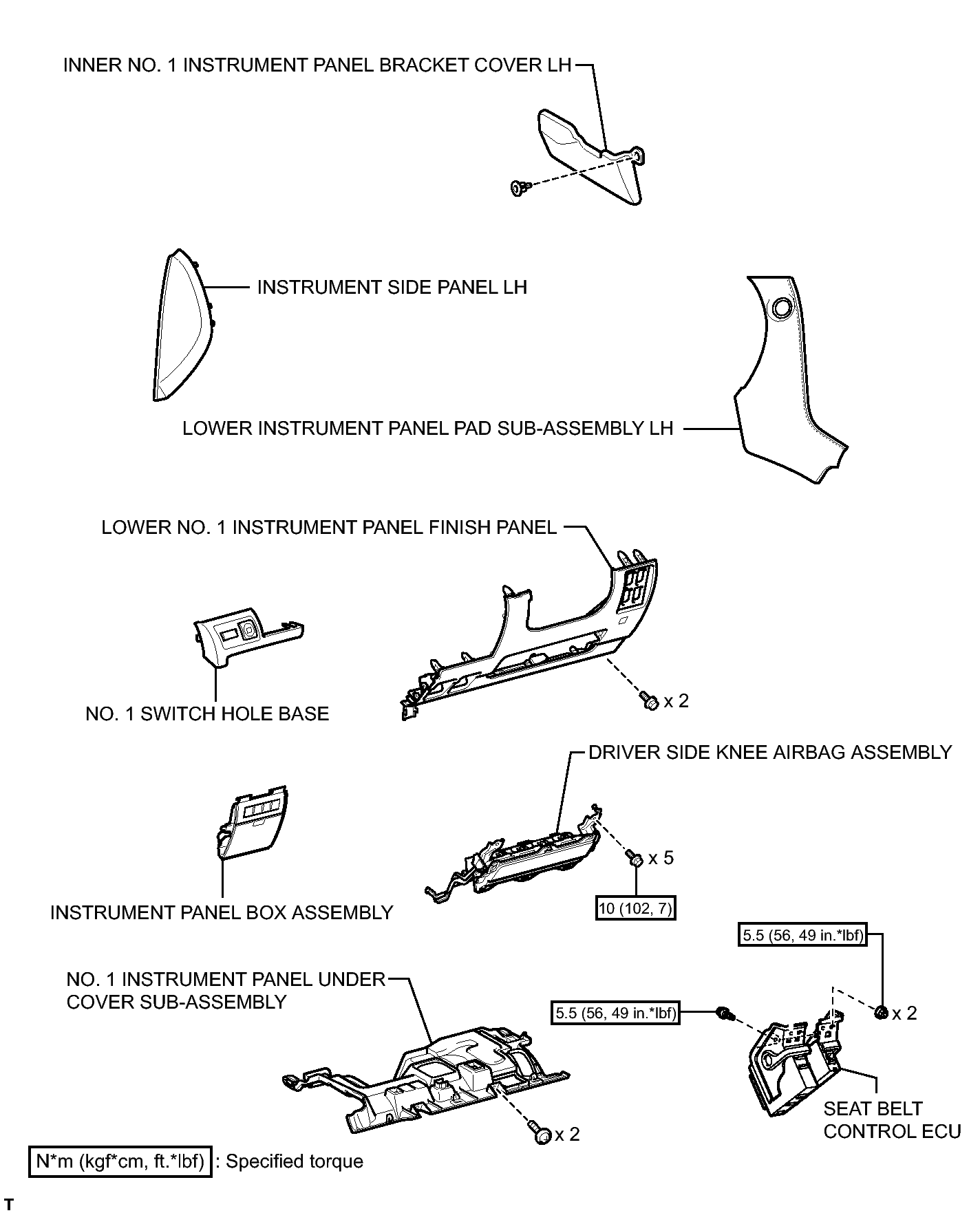

Fig 1: Identifying Seat Belt Control ECU Replacement Components With Torque Specifications

GTY134429

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
