Seat Belt Warning: Notes

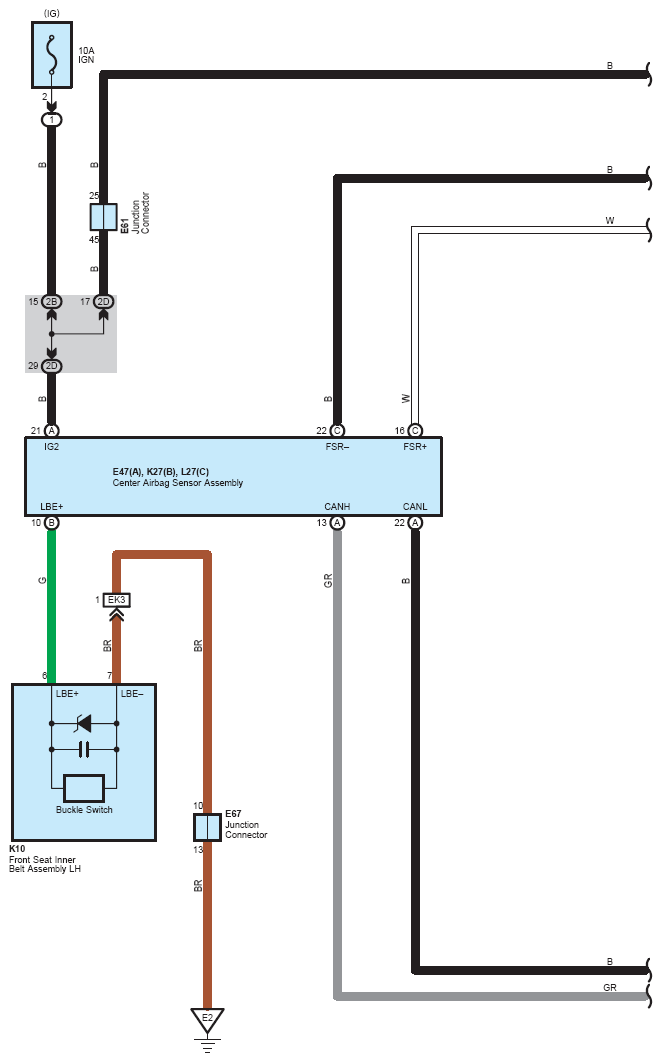

Fig 1: Seat Belt Warning - Circuit Diagram (1 Of 5)
G07562264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

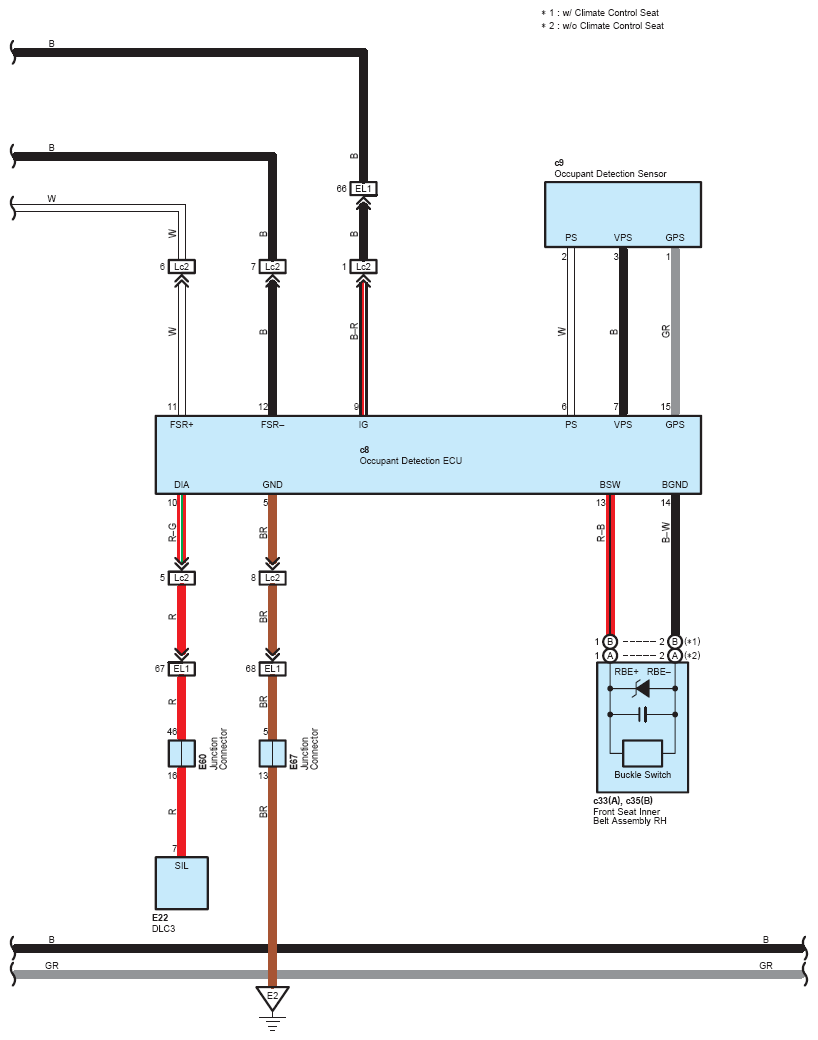

Fig 2: Seat Belt Warning - Circuit Diagram (2 Of 5)
G07562265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

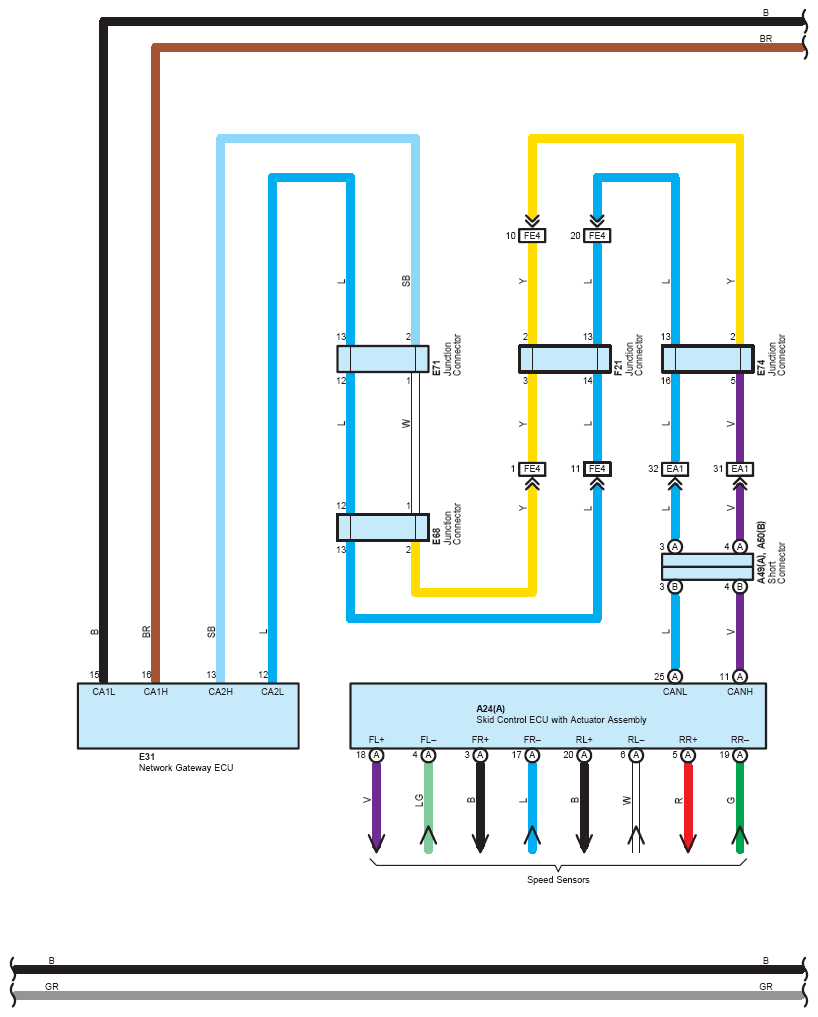

Fig 3: Seat Belt Warning - Circuit Diagram (3 Of 5)
G07562266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

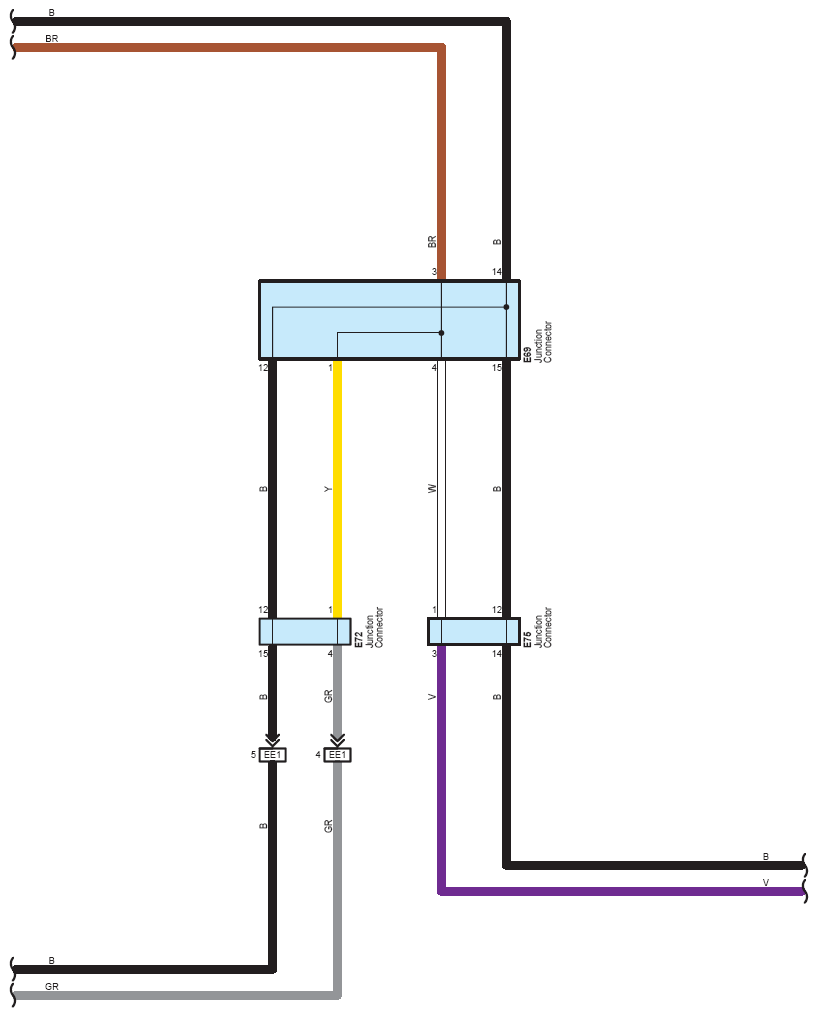

Fig 4: Seat Belt Warning - Circuit Diagram (4 Of 5)
G07562267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

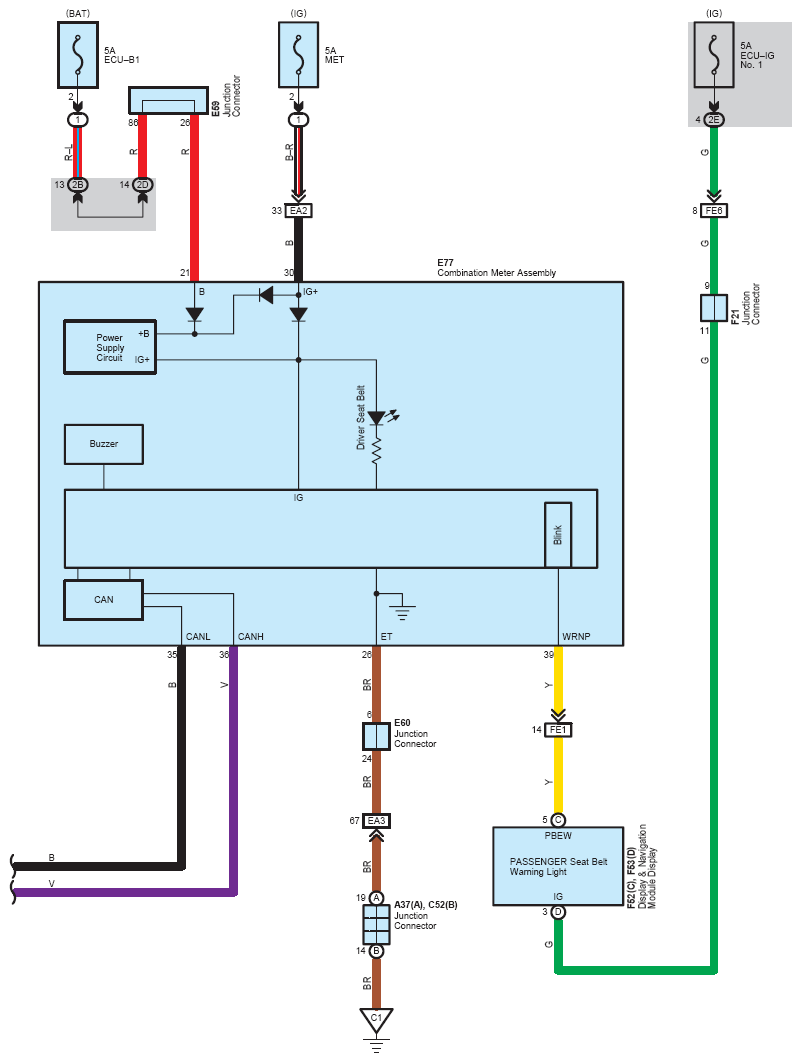

Fig 5: Seat Belt Warning - Circuit Diagram (5 Of 5)
G07562268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
