LEXUS ENFORM System (Diagnostics - Introduction)
>>
LEXUS ENFORM System
>>
System Diagram
>>
System Diagram
System Diagram

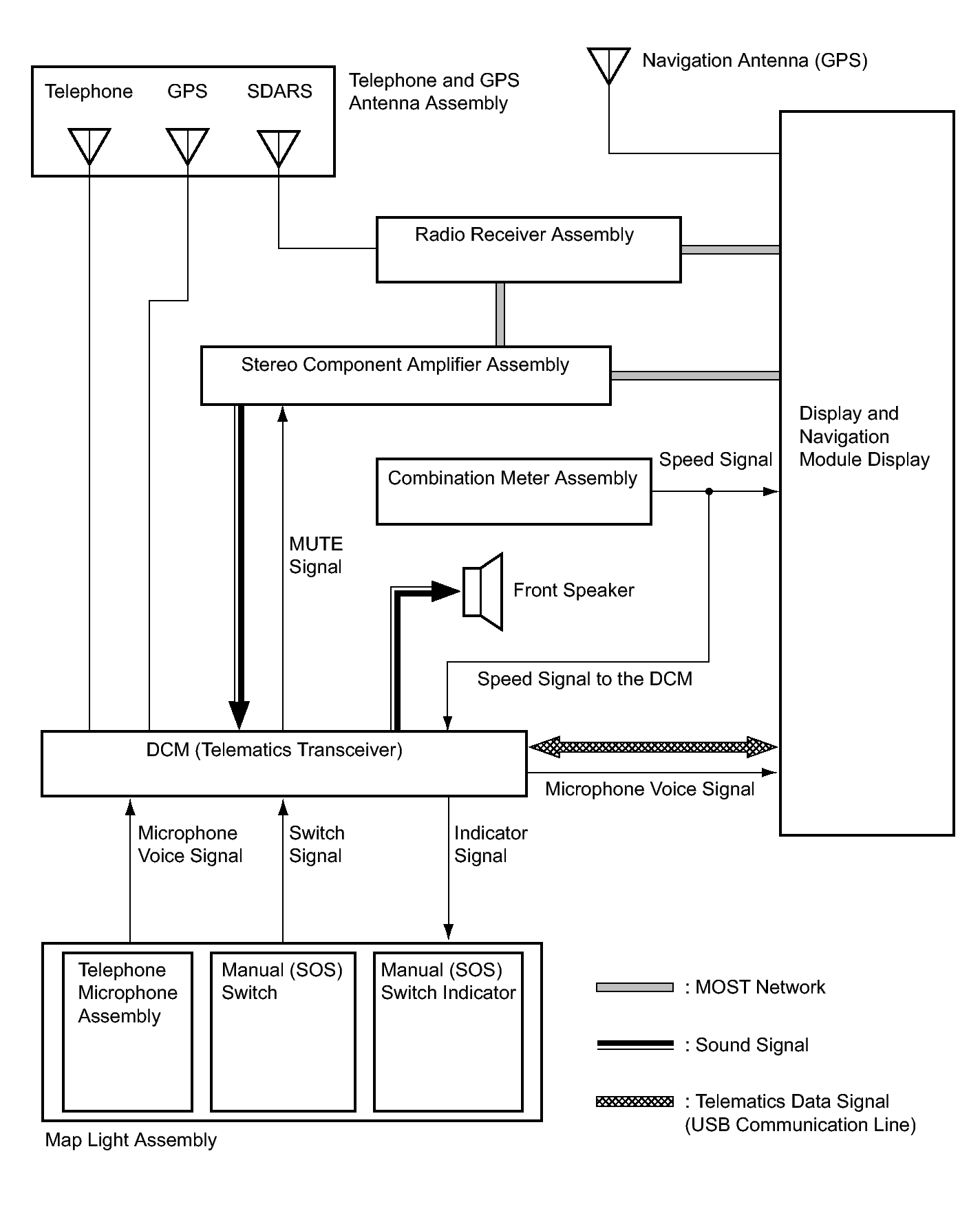

Fig 1: Identifying Lexus Enform System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
