Sound Signal Circuit between Navigation ECU and Multi-media Interface ECU: Wiring Diagram

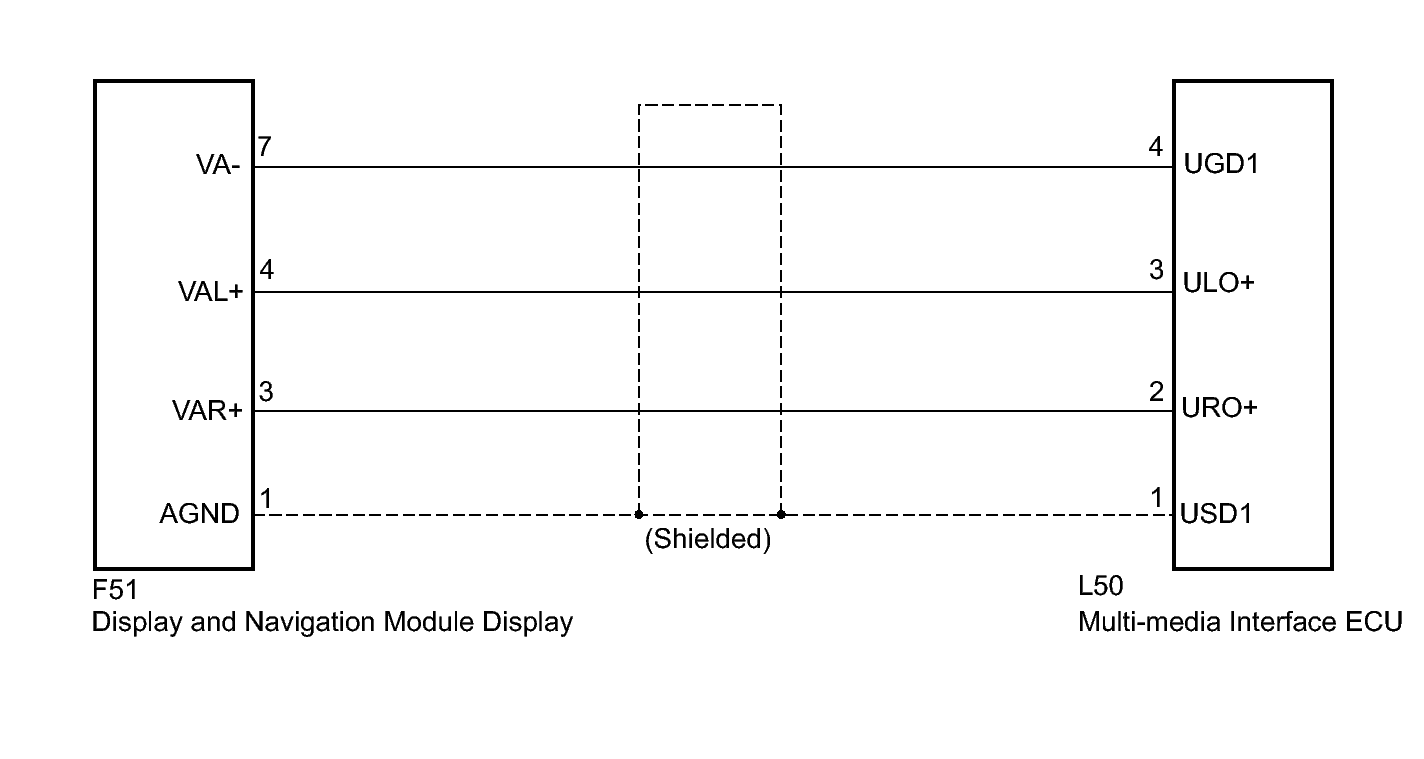

Fig 1: Sound Signal Circuit Between Navigation ECU And Multi-Media Interface ECU - Wiring Diagram
GTY282701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
