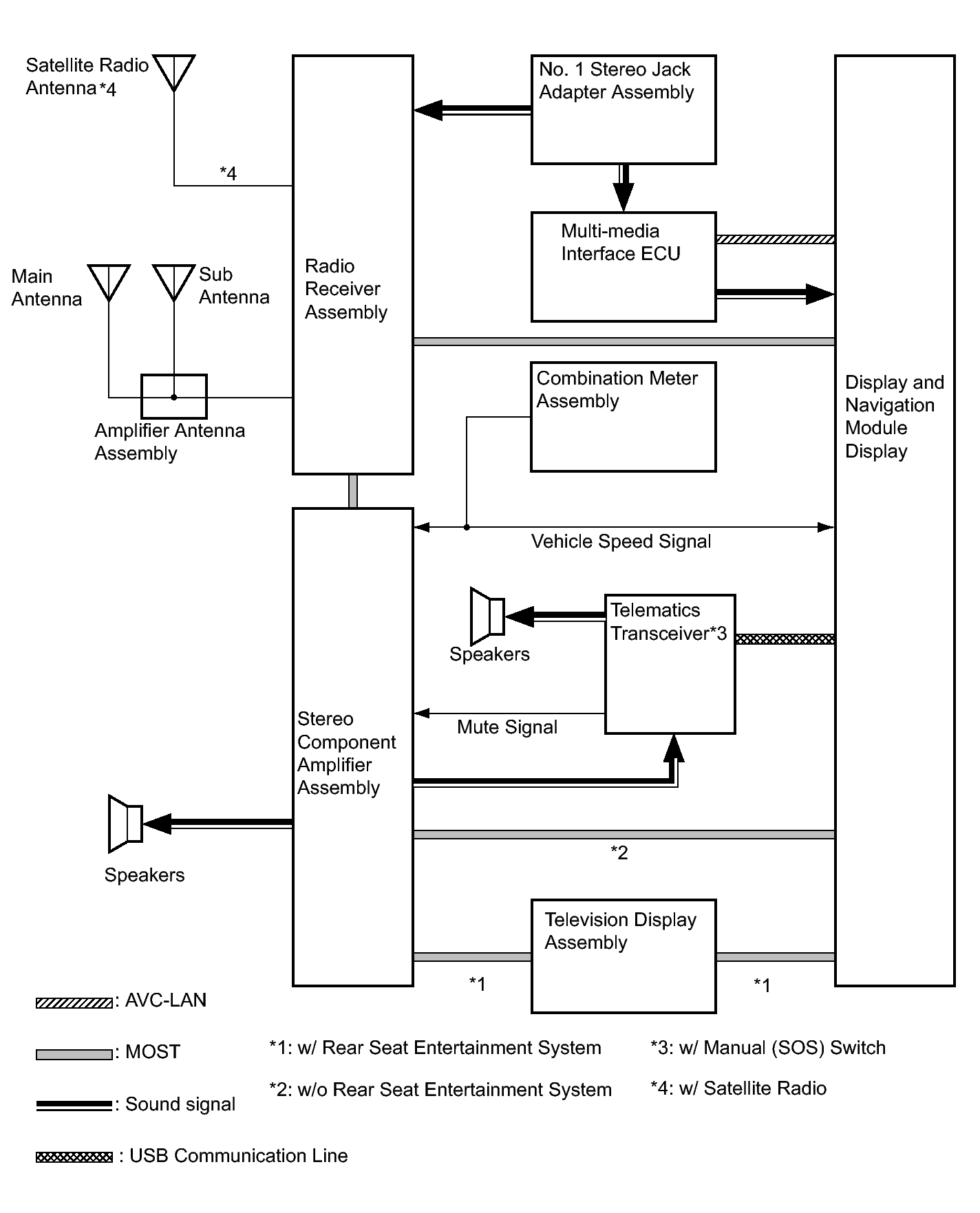

Home >> Lexus >> 2010 >> LX 570 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Audio / Video System (W/ Navigation) (Diagnostics - Introduction) >> AUDIO AND VISUAL SYSTEM (w/ Navigation System) >> System Diagram >> System Diagram
