Section 32 (Air Conditioning (Service Information)): Compressor: Components: Illustration

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

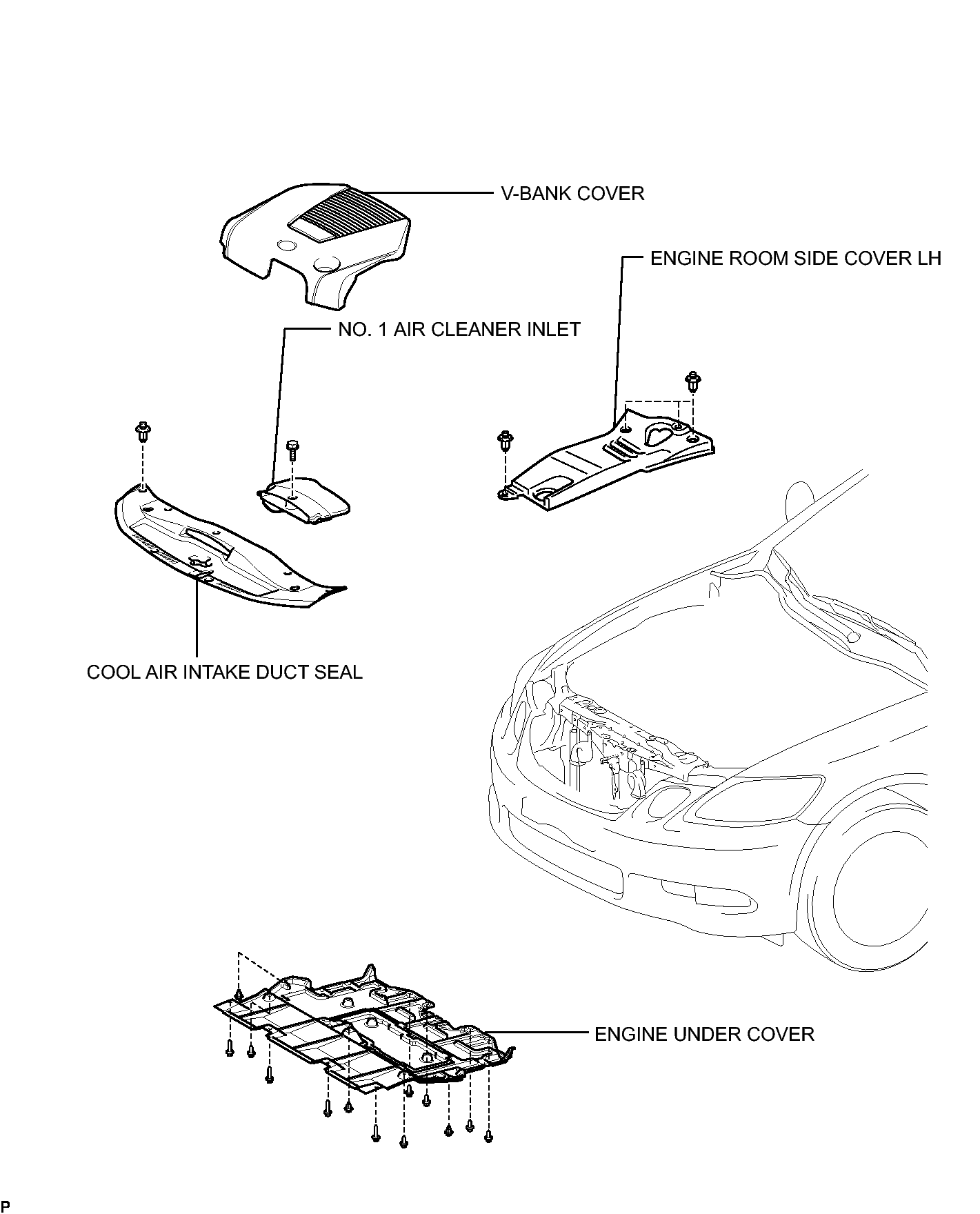

Fig 1: Identifying Electric Inverter Compressor Replacement Components (1 Of 2)
GTY118121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

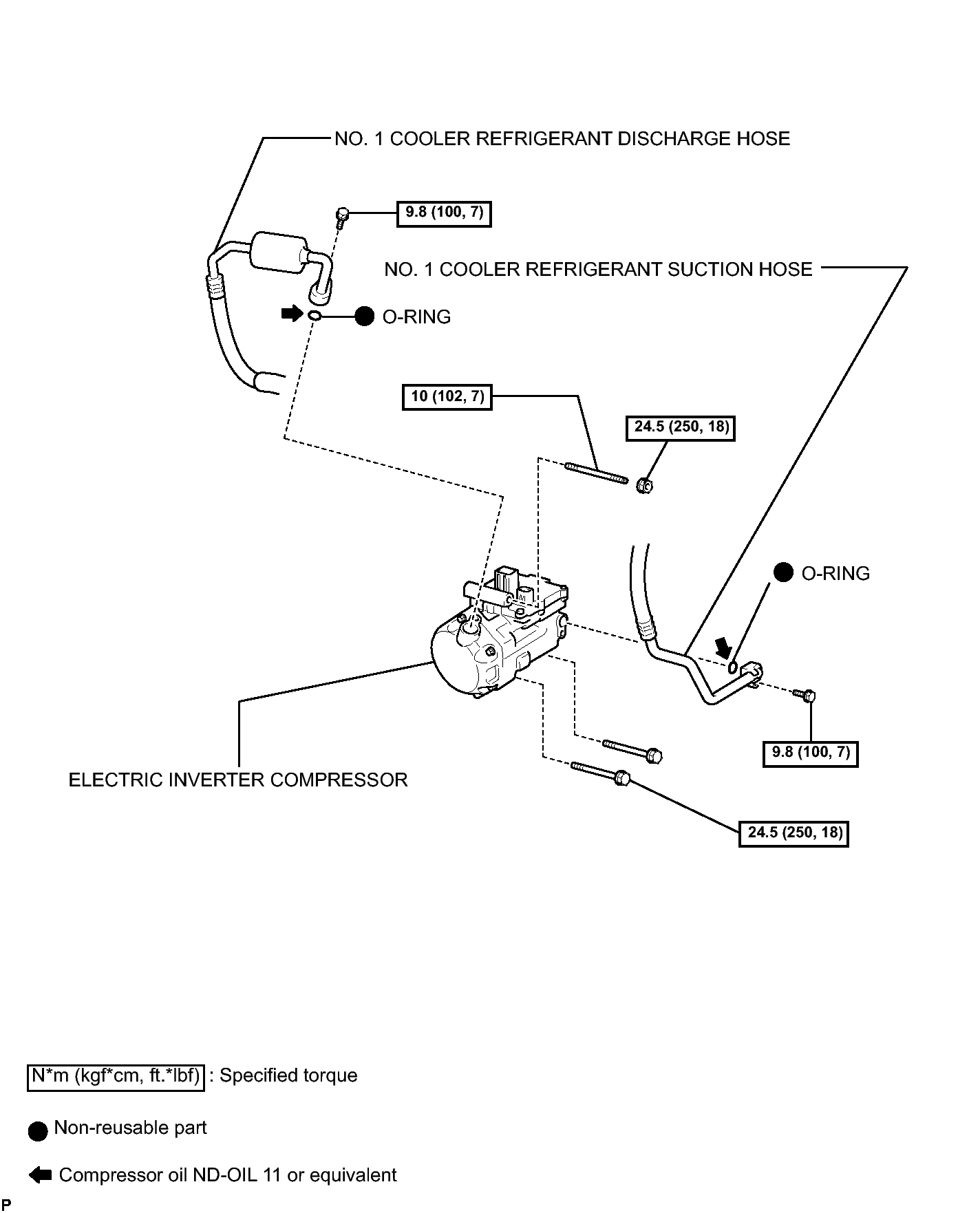

Fig 1: Identifying Electric Inverter Compressor Replacement Components With Torque Specifications (2 Of 2)
GTY151684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
