Sub Radiator: Installation: Installation

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL RADIATOR ASSEMBLY
1. Install the radiator assembly with the 2 bolts (A).

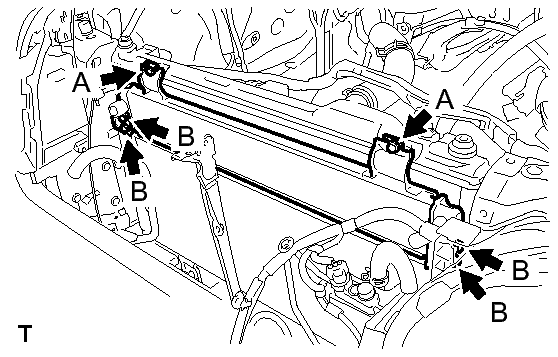

  Fig 1: Locating Radiator Assembly With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Install the radiator assembly with the 4 bolts (B).
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
3. Connect the 2 water hoses with the 2 clips.

  Fig 2: Locating Water Hoses And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY . Refer to INSTALLATION - Step 5
INSTALL HOOD LOCK ASSEMBLY . Refer to INSTALLATION - Step 3
INSTALL HOOD LOCK CONTROL CABLE COVER . Refer to INSTALLATION - Step 5
INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System) . Refer to INSTALLATION - Step 1
ADD COOLANT (for Inverter) See step 7
CHECK FOR COOLANT LEAKS (for Inverter) See step 1
ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System) . Refer to ADJUSTMENT - Step 1
INSTALL FRONT BUMPER ASSEMBLY . Refer to INSTALLATION - Step 8
INSTALL ENGINE ROOM SIDE COVER RH . Refer to INSTALLATION - Step 98
INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 99
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 100
INSTALL NO. 2 ENGINE UNDER COVER
INSTALL ENGINE UNDER COVER
ADJUST FOG LIGHT AIM
1. Perform initialization procedure. Refer to ADJUSTMENT - Step 2 .
  NOTE:
  Some vehicle systems require initialization after reconnecting the cable to the negative battery terminal.
