System Diagram

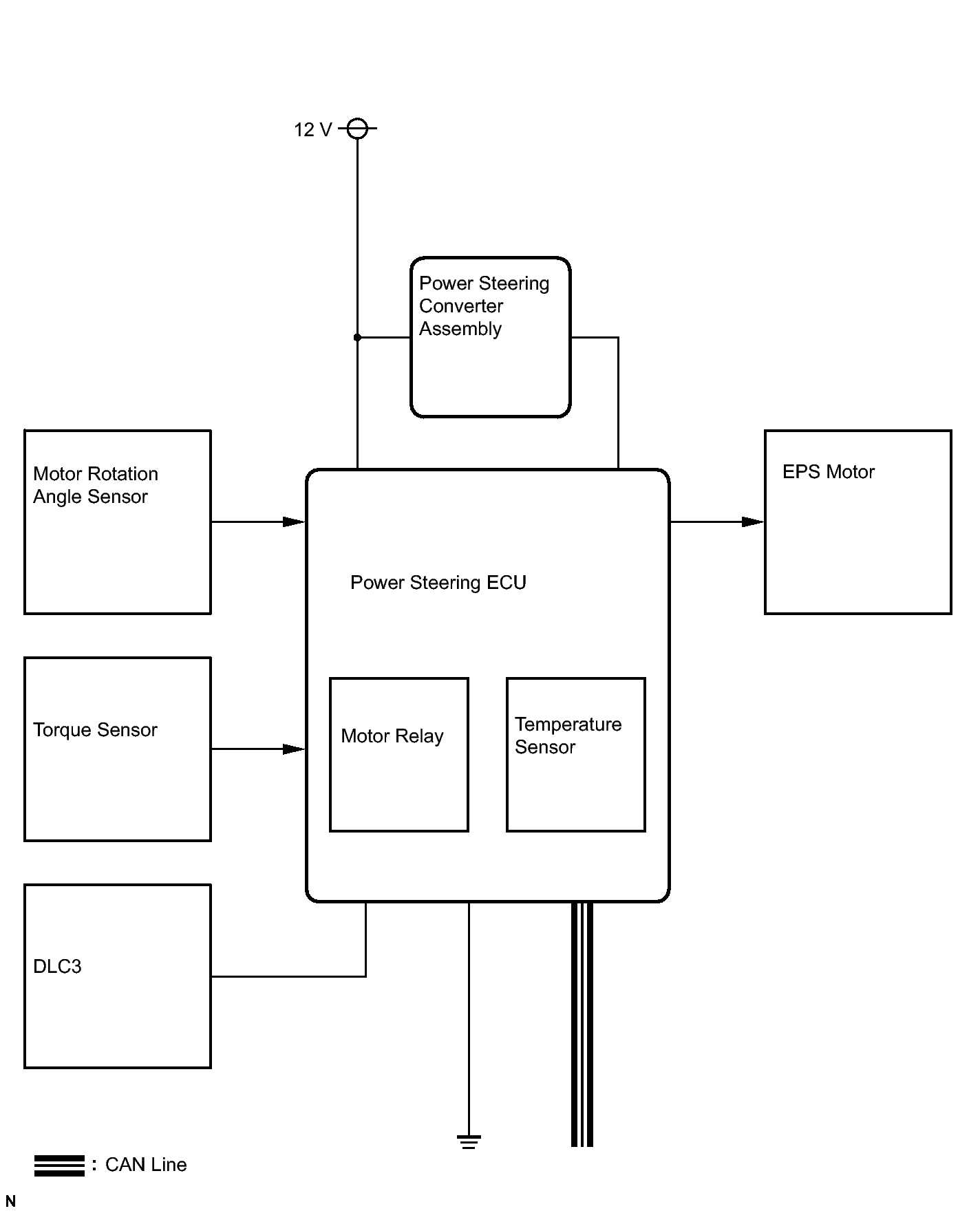

Fig 1: Power Steering System - System Diagram (1 Of 3)
GTY289243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

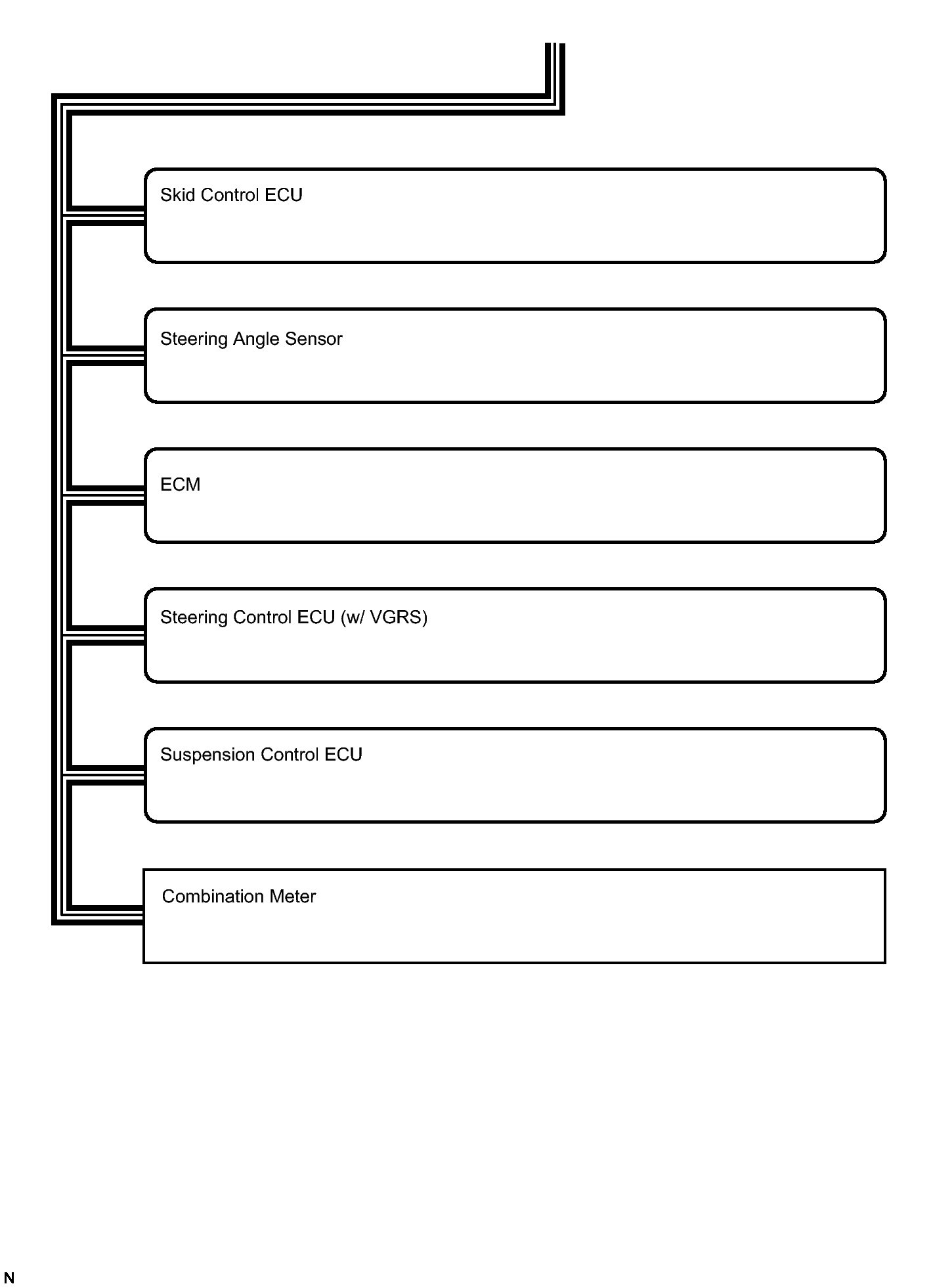

Fig 2: Power Steering System - System Diagram (2 Of 3)
GTY272283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

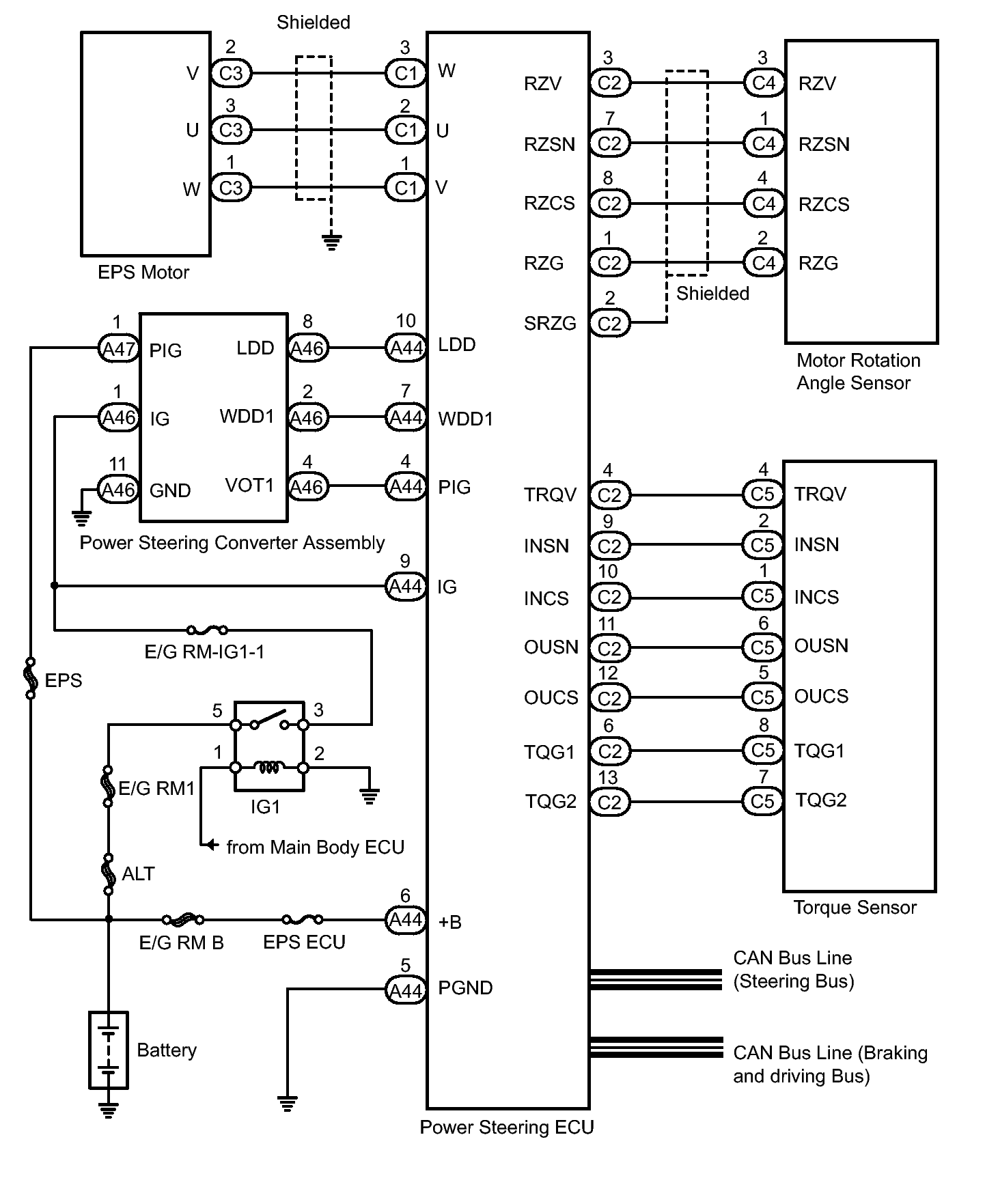

Fig 3: Power Steering System - System Diagram (3 Of 3)
GTY254180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
