Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment: Wiring Diagram

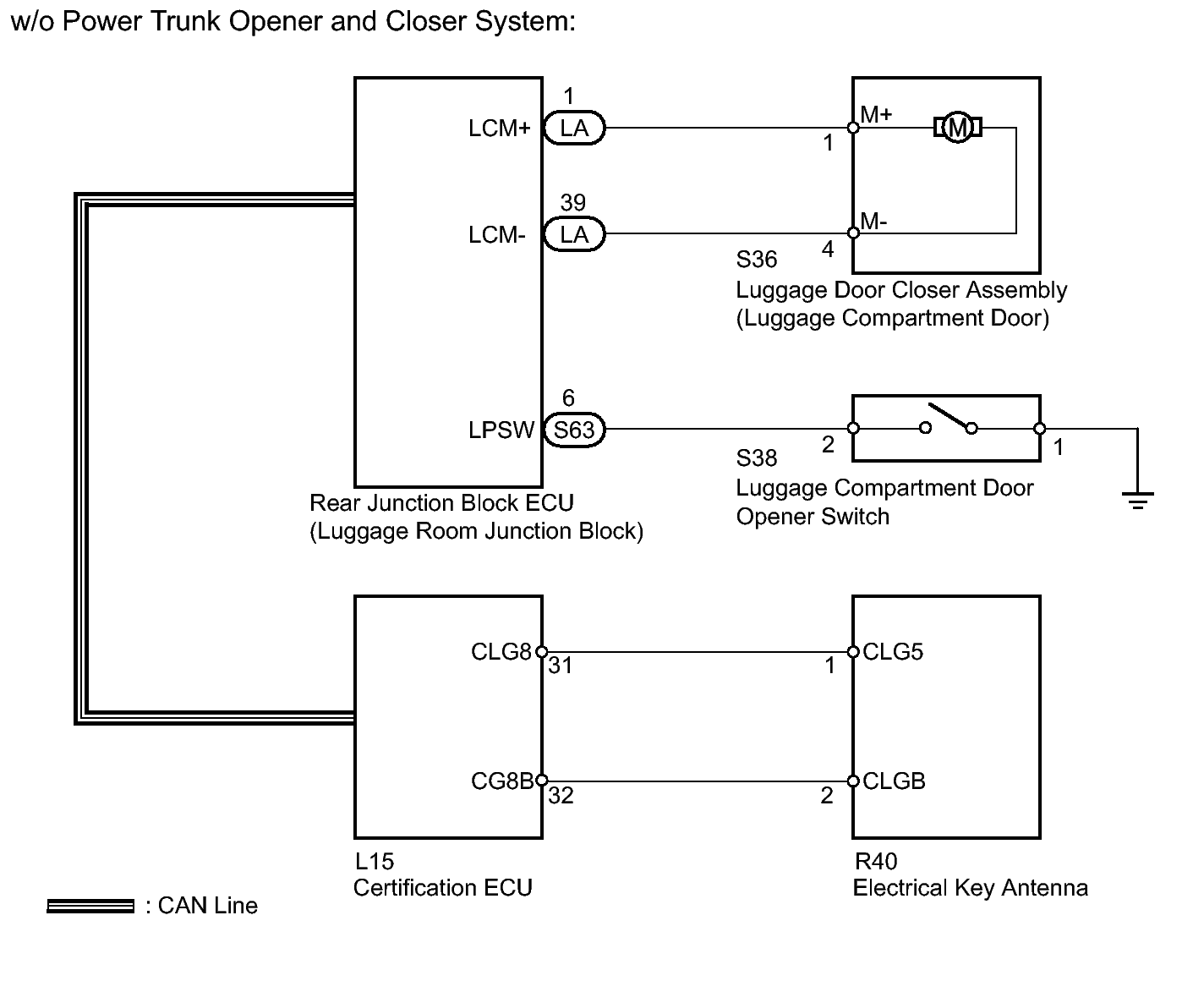

Fig 1: L15 Certfication ECU - Wiring Diagram (1 Of 2)
GTY288899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

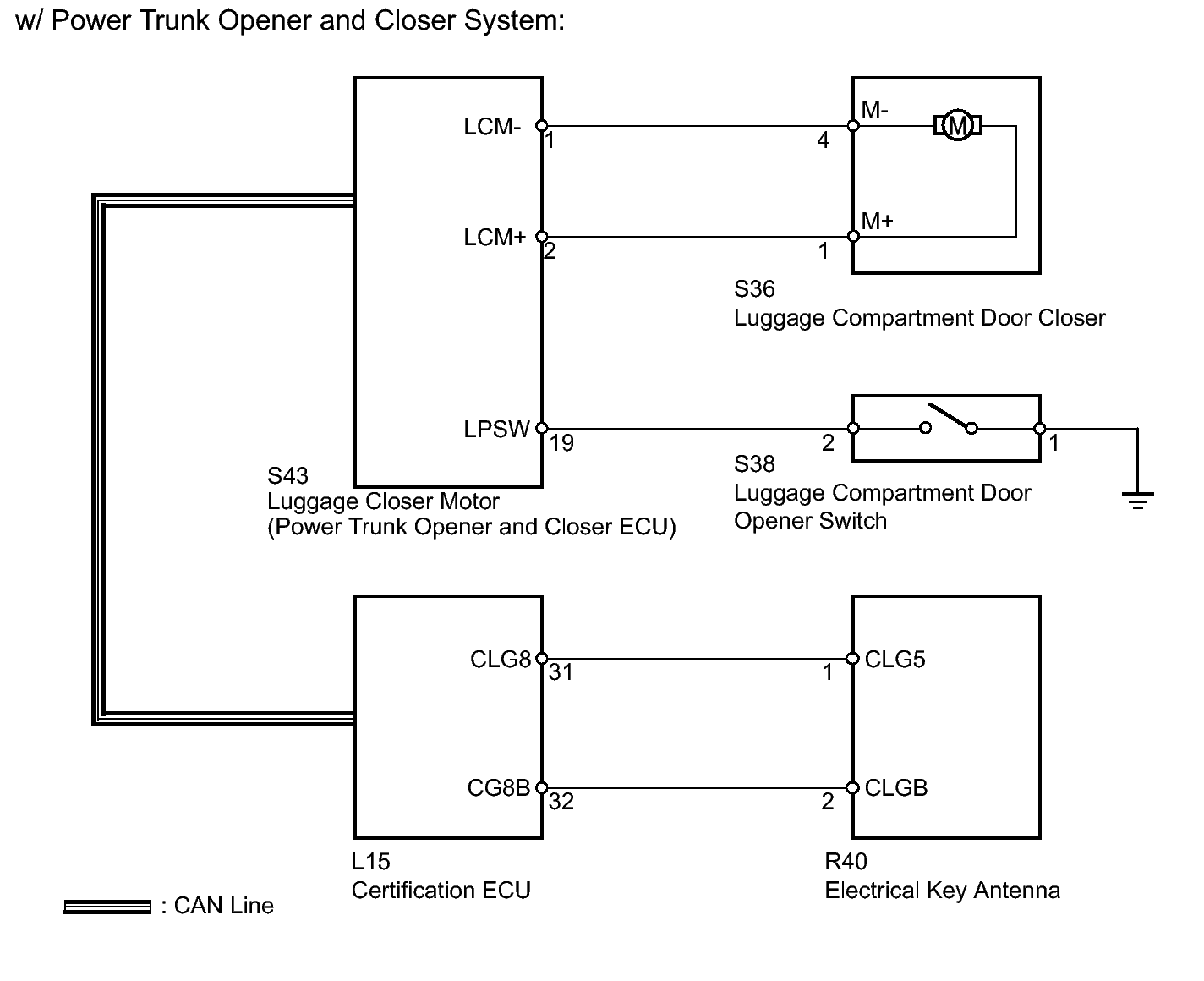

Fig 2: L15 Certfication ECU - Wiring Diagram (2 Of 2)
GTY273909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
