Section 132 (Power Window Control (Diagnostic Codes & Symptom Tests))
>>
Power Window Control System
>>
Driver Side Power Window does not Operate with Power Window Master Switch
>>
Wiring Diagram
Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram
WARNING:
This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

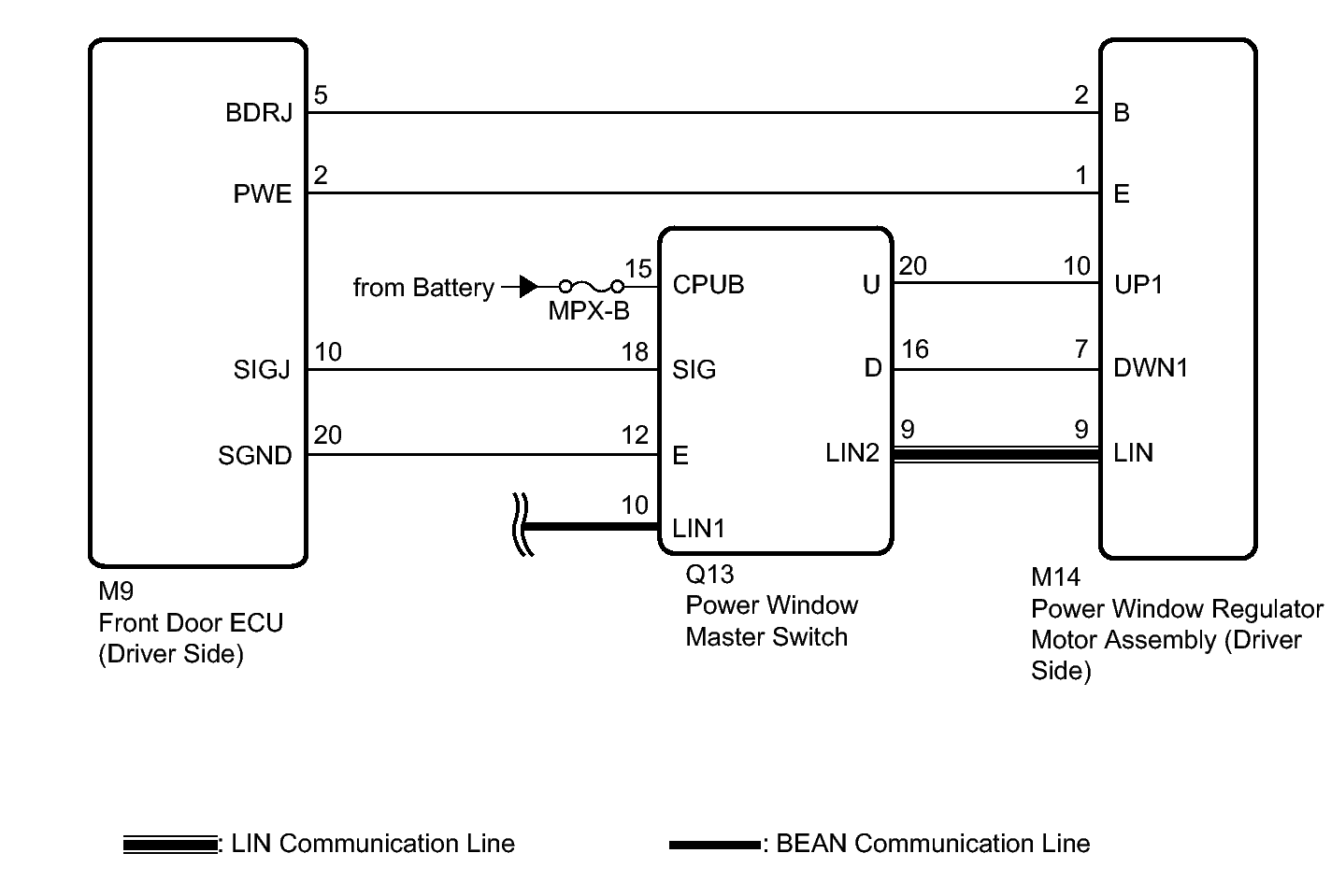

Fig 1: Power Window Master Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
