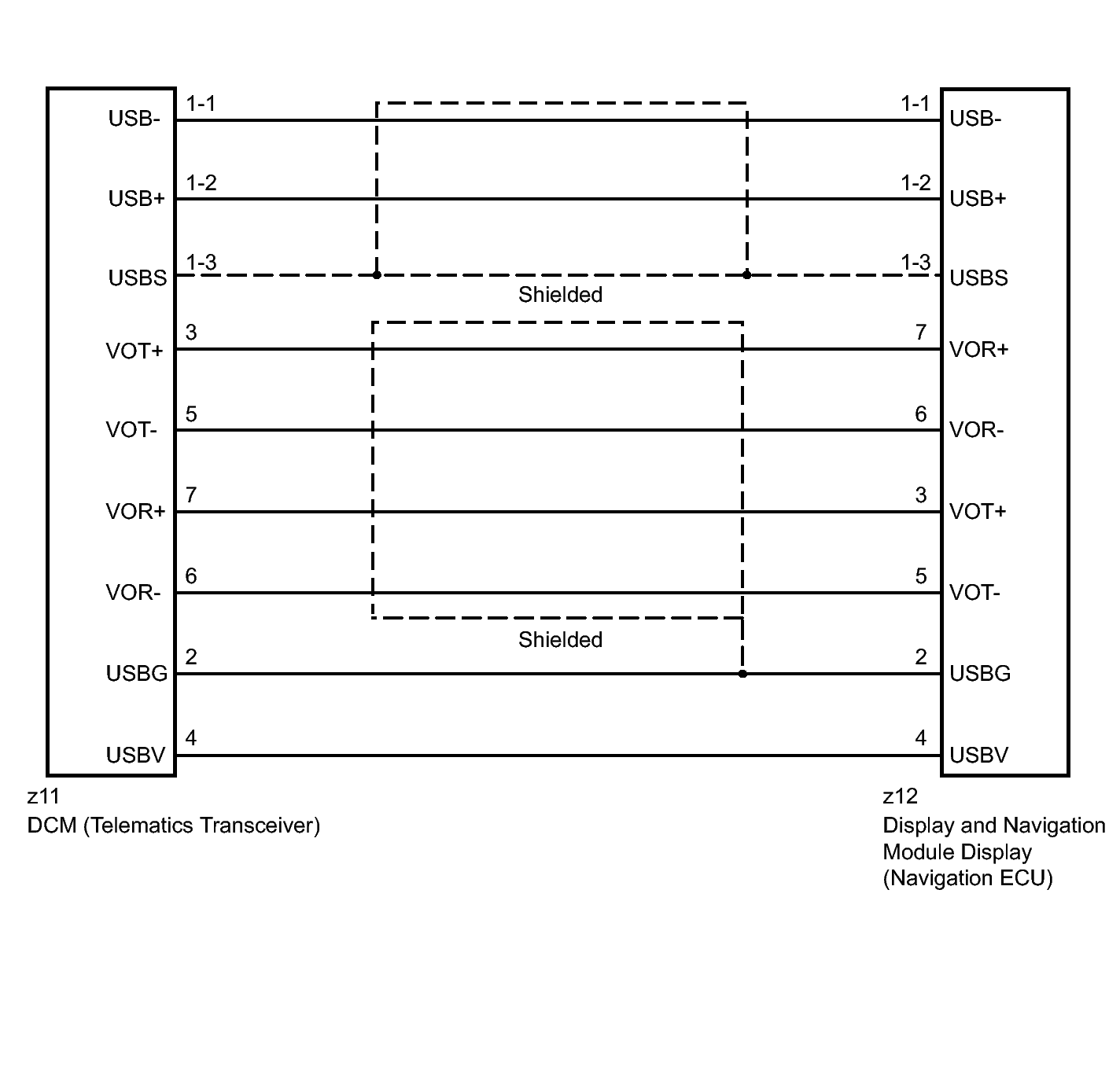

DCM Data Signal Circuit between Navigation ECU and DCM: Wiring Diagram

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.
