Front Passenger Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

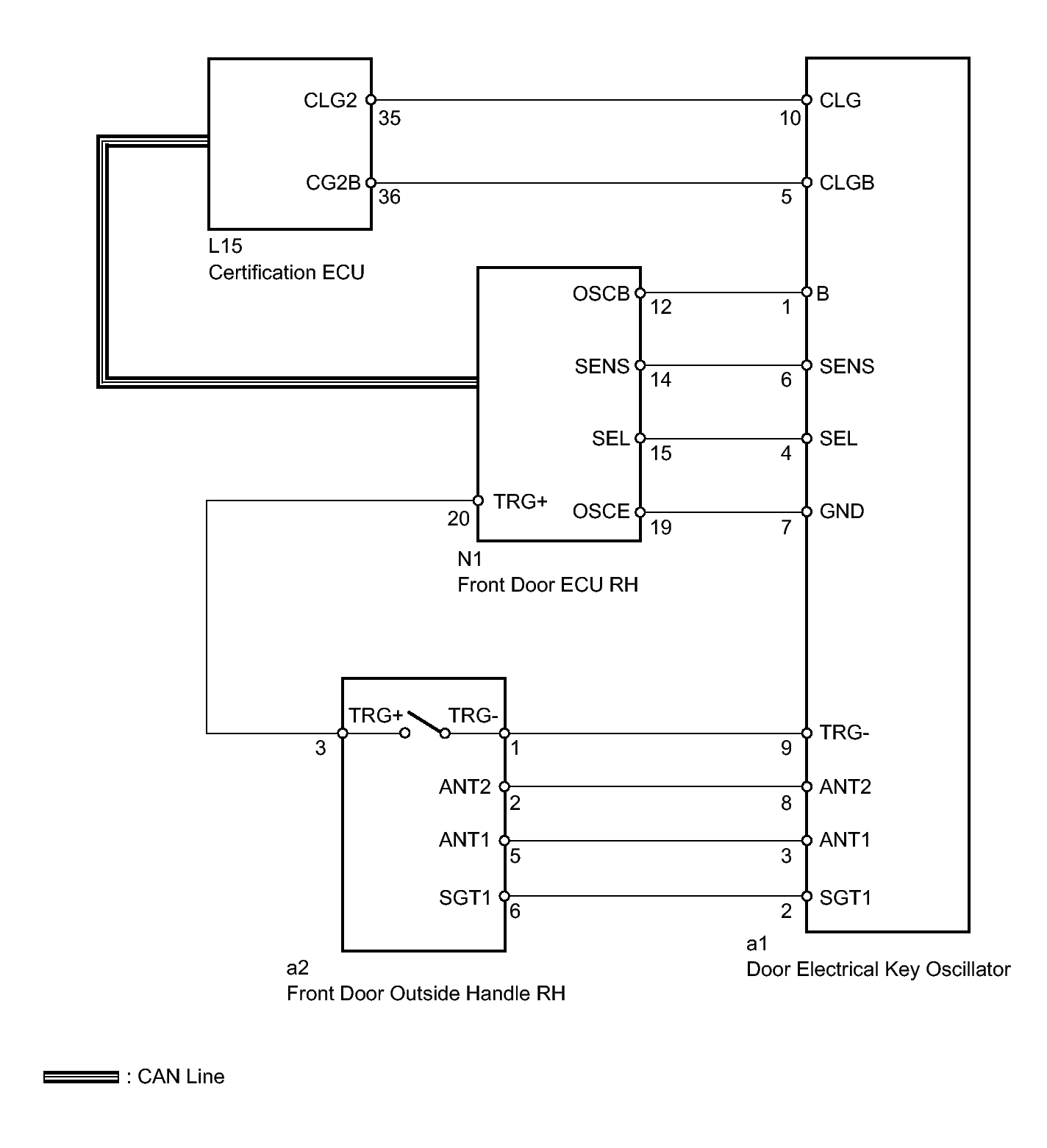

Fig 1: N1 Front Door ECU - Wiring Diagram

GTY288898

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
