Park / Neutral Position Switch: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

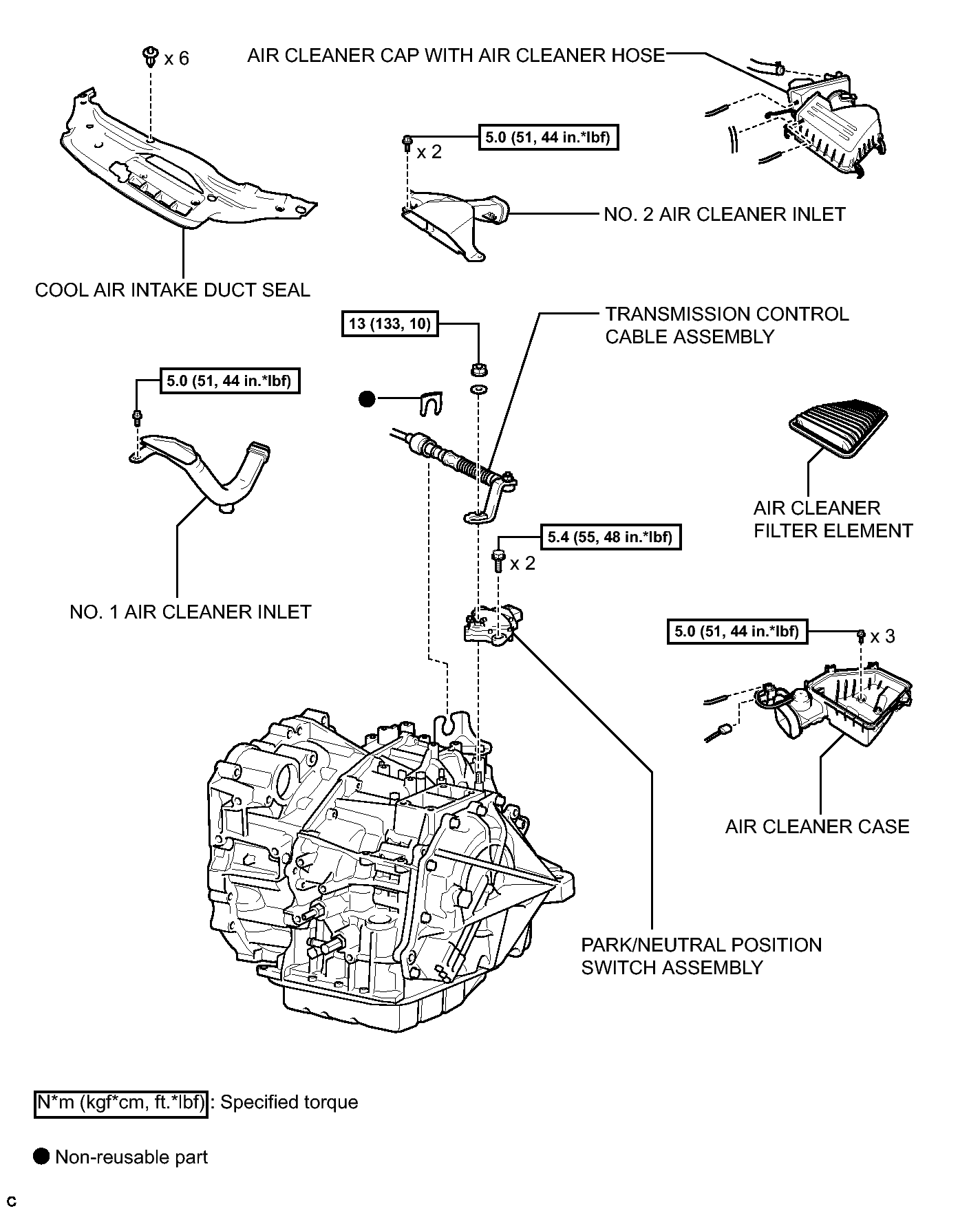

Fig 1: Identifying Park / Neutral Position Switch Replacement Components With Torque Specifications
GTY300371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
