FUEL PRESSURE PULSATION DAMPER (For Direct Injection): Components: Illustration

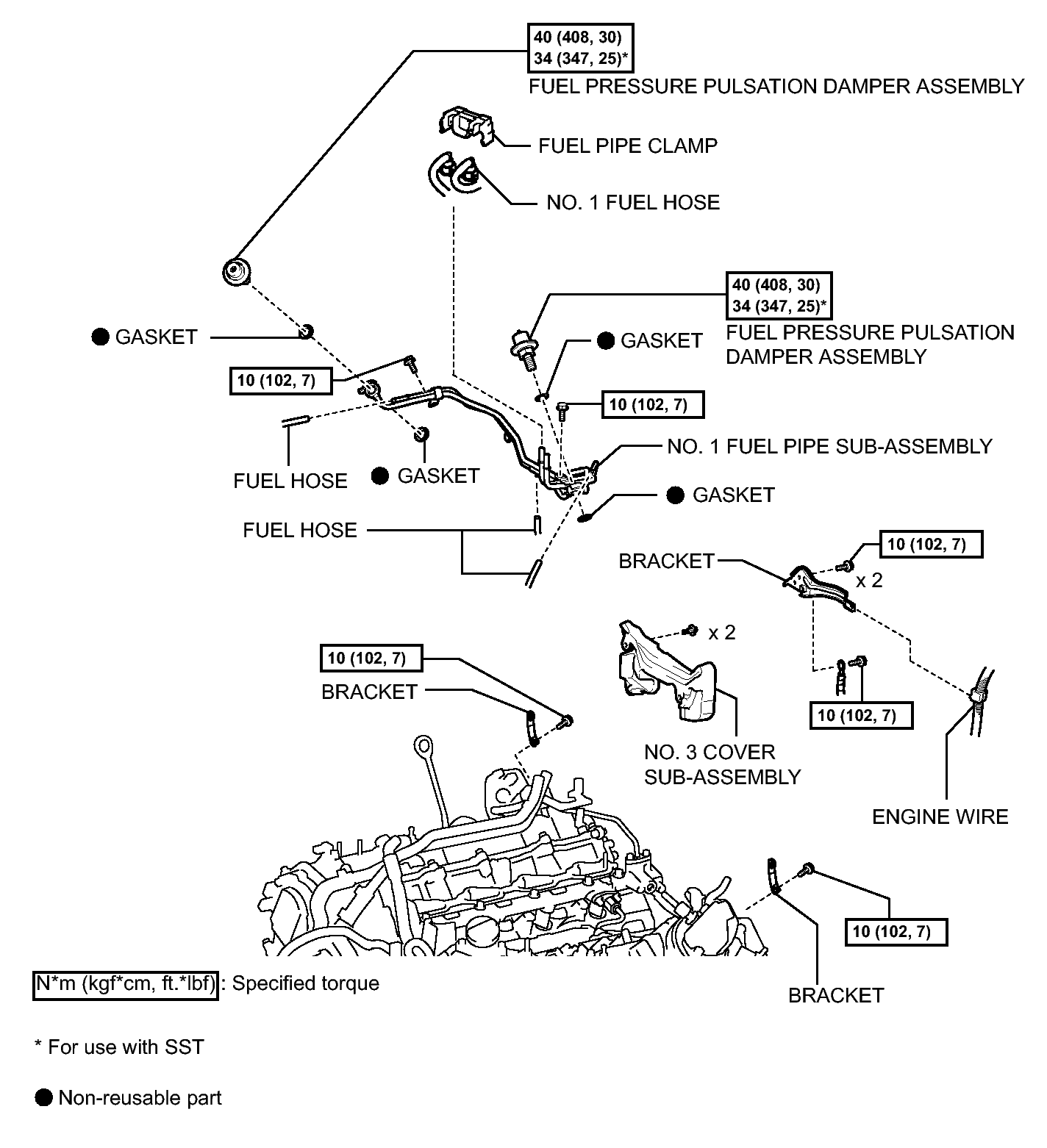

Fig 1: Identifying Fuel Injector Replacement Components (For Direct Injection) With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Injector Replacement Components (For Direct Injection) With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
