Occupant Classification System (Diagnostic Codes & Circuit Tests)
>>
Occupant Classification System
>>
DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction
>>
Wiring Diagram
DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction: Wiring Diagram

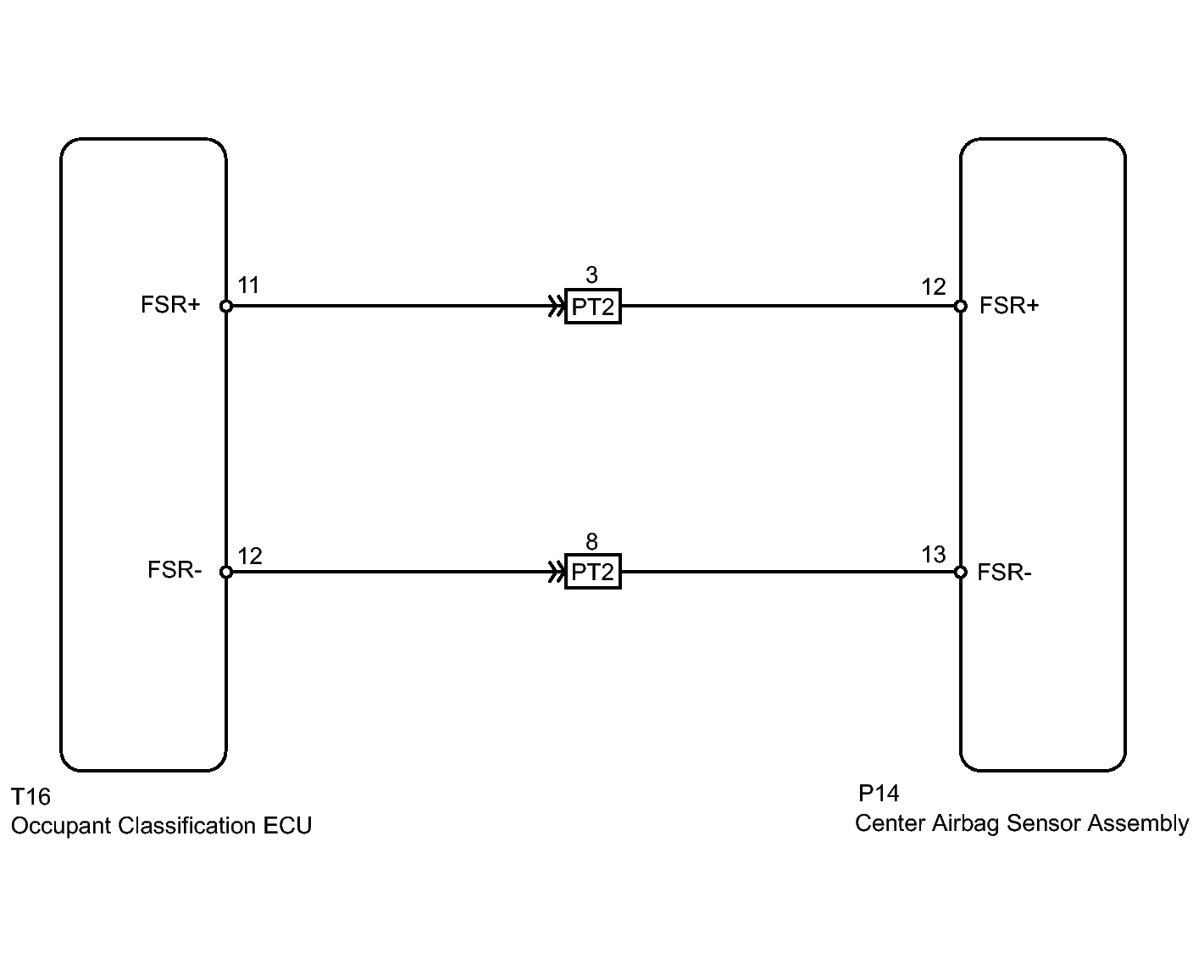

Fig 1: Occupant Classification ECU And Center Airbag Sensor Assembly Communication Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
