DTC B1774: Pressure Sensor Circuit Malfunction; DTC B1775: Pressure Sensor Power Source Circuit Malfunction: Wiring Diagram

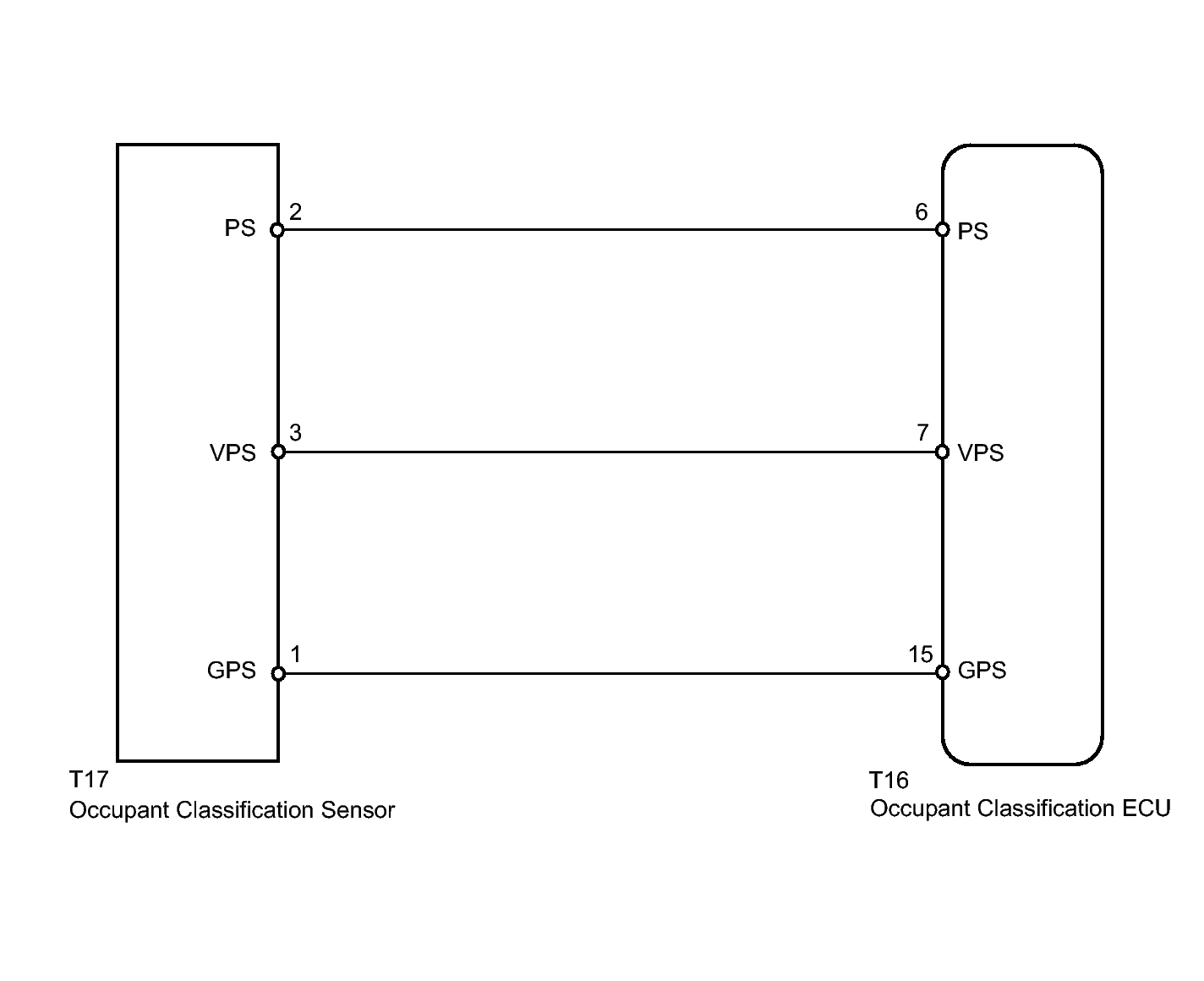

Fig 1: Pressure Sensor Wiring Diagram
GTY122746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
