Engine Room Relay Block No. 1 Assembly And Engine Room Junction Block No. 1 Assembly Inner Circuit

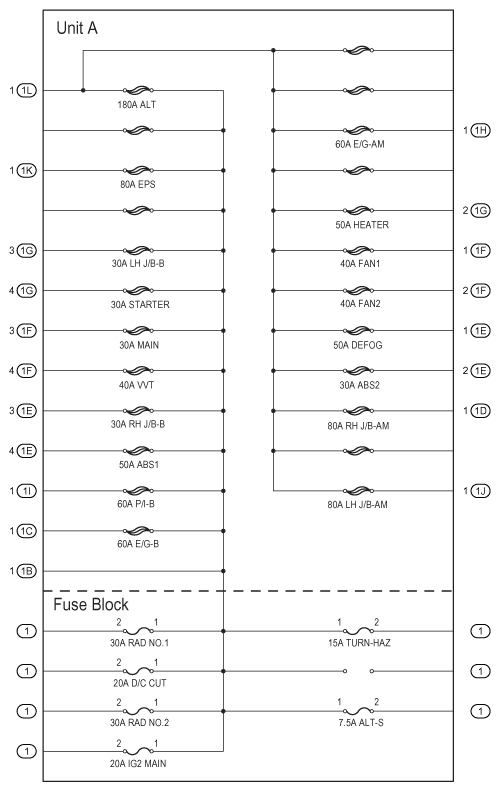

Fig 1: Engine Room R/B No. 1 And J/B No. 1 Assembly Inner Circuit Diagram
G07561070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
