Remote Up / Down Function does not Operate: Wiring Diagram

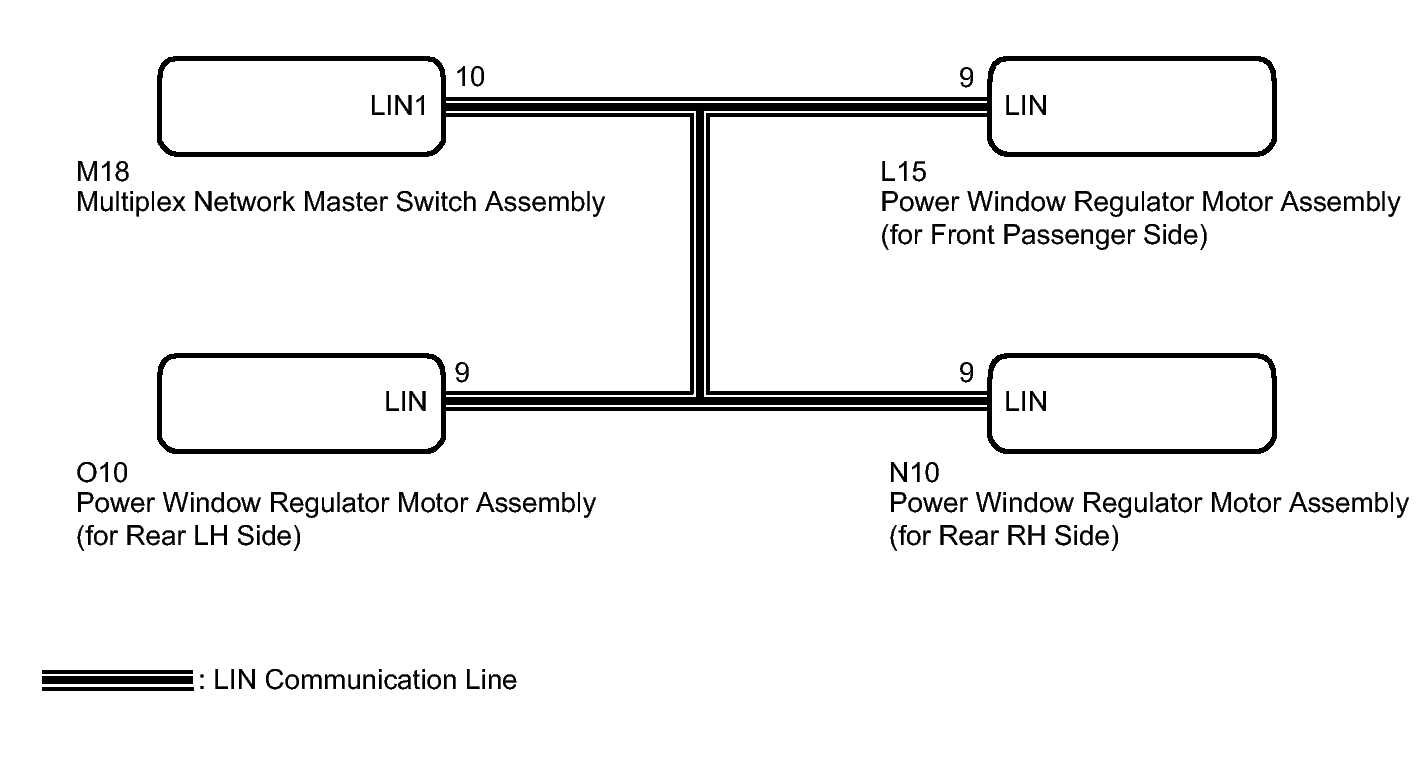

Fig 1: Multiplex Network Master Switch & Power Window Regulator Motors - Wiring Diagram

GTY125030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
