Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch: Wiring Diagram

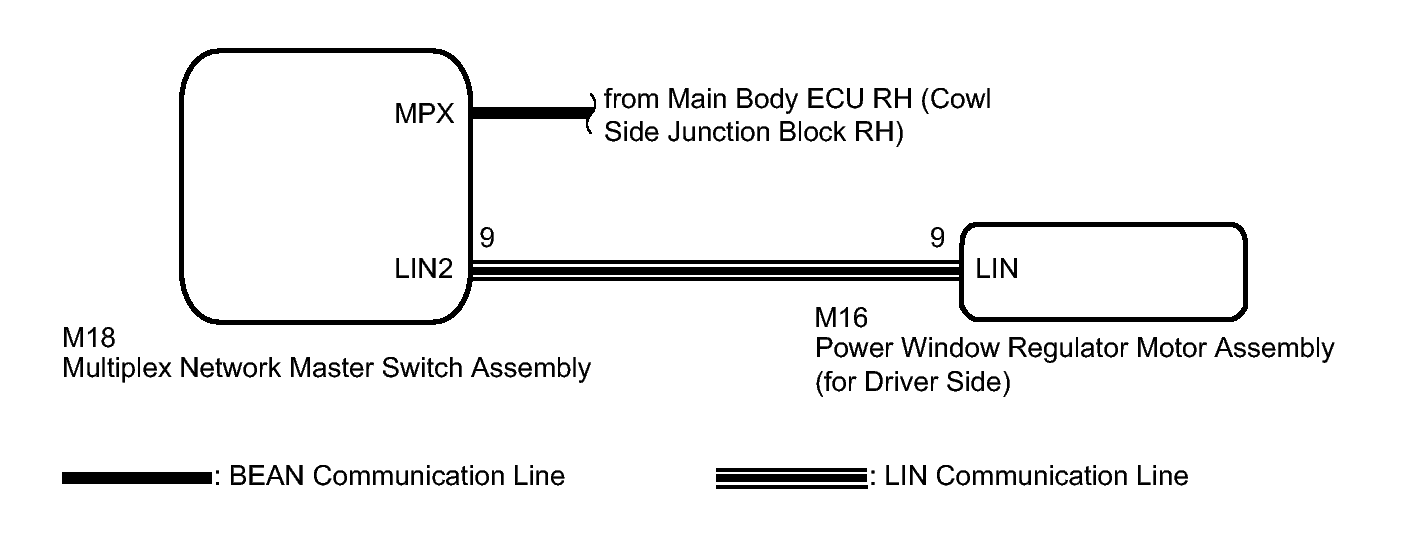

Fig 1: Driver Side Power Window Regulator Motor & Multiplex Network Master Switch - Wiring Diagram
GTY129172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
