DCM Data Signal Circuit between Navigation ECU and DCM: Wiring Diagram

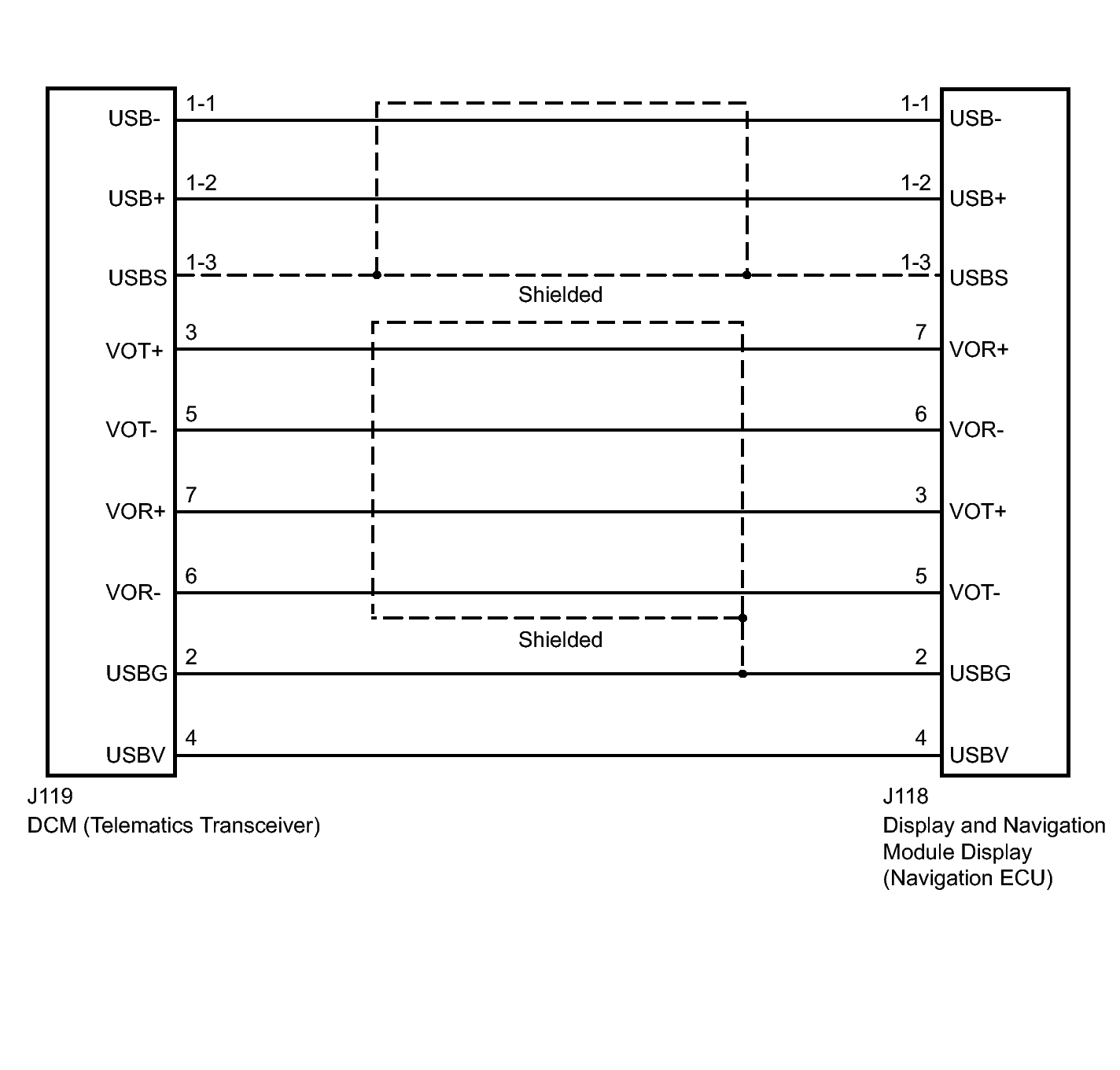

Fig 1: Navigation ECU To DCM Wiring Diagram

GTY277411

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
