Steering Angle Sensor Communication Stop Mode: Wiring Diagram

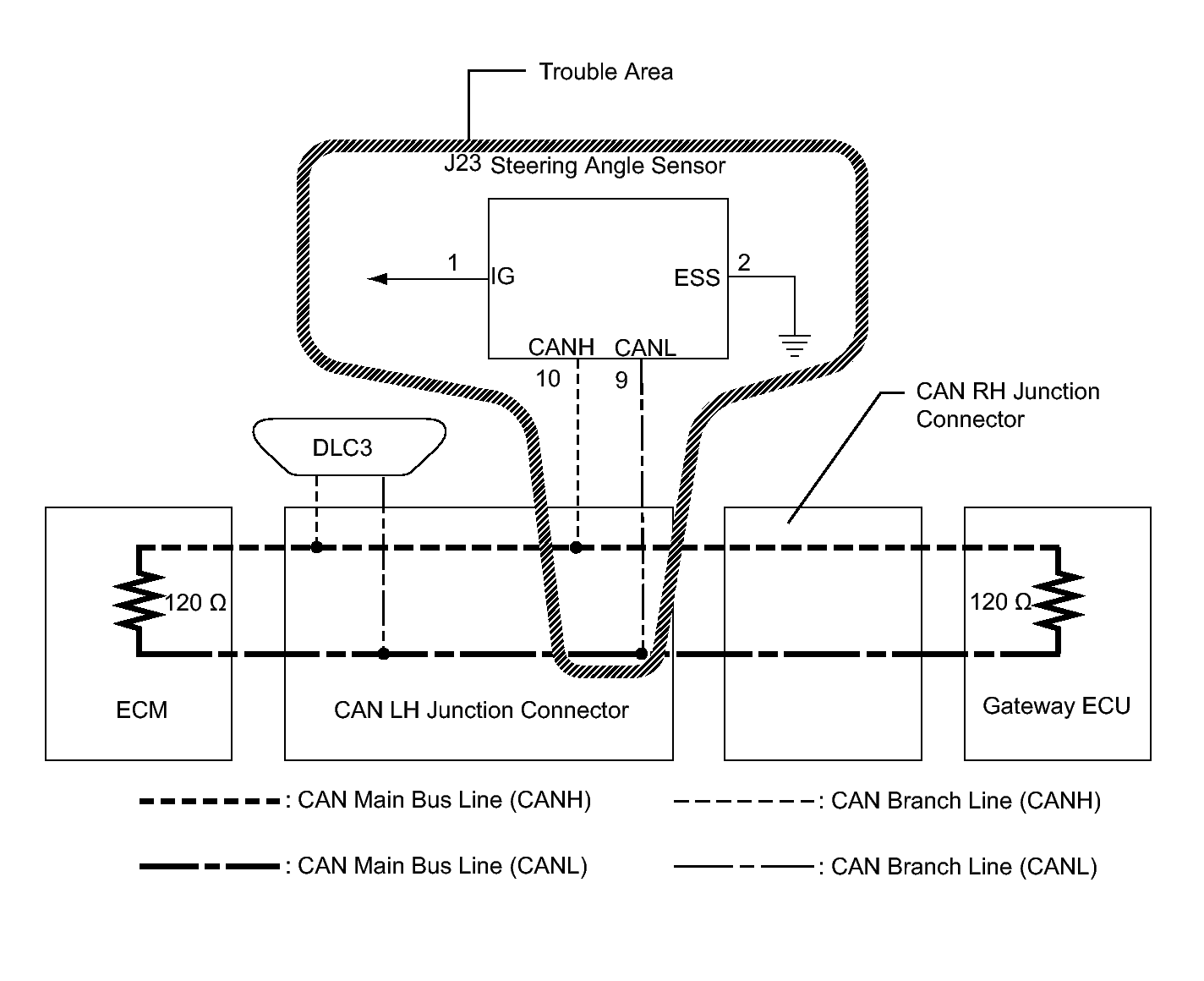

Fig 1: Steering Angle Sensor CAN Communication Lines
GTY267696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
