Navigation ECU Communication Stop Mode: Wiring Diagram

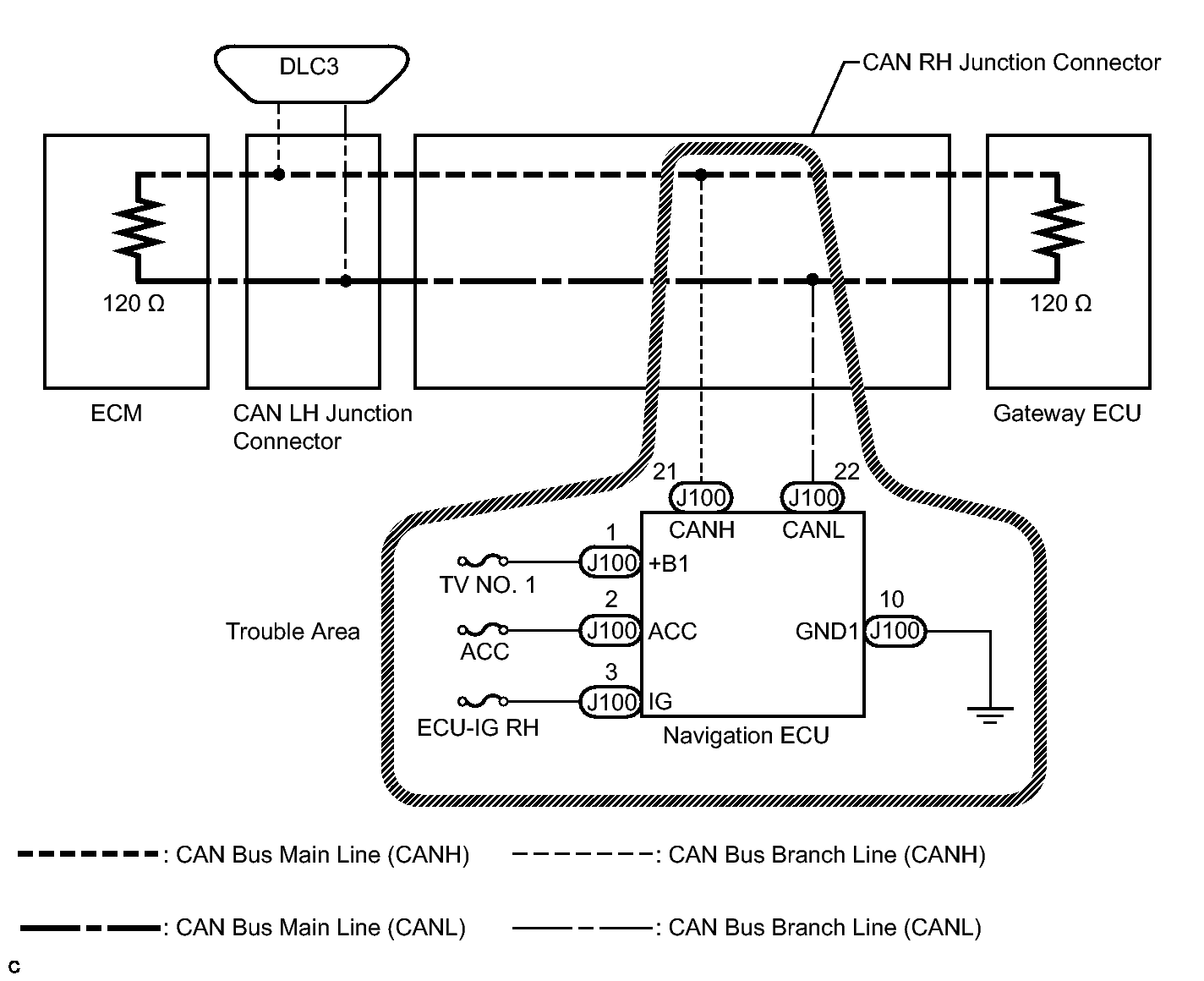

Fig 1: Navigation ECU CAN Communication Lines
GTY285984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
