Distance Control ECU Communication Stop Mode: Wiring Diagram

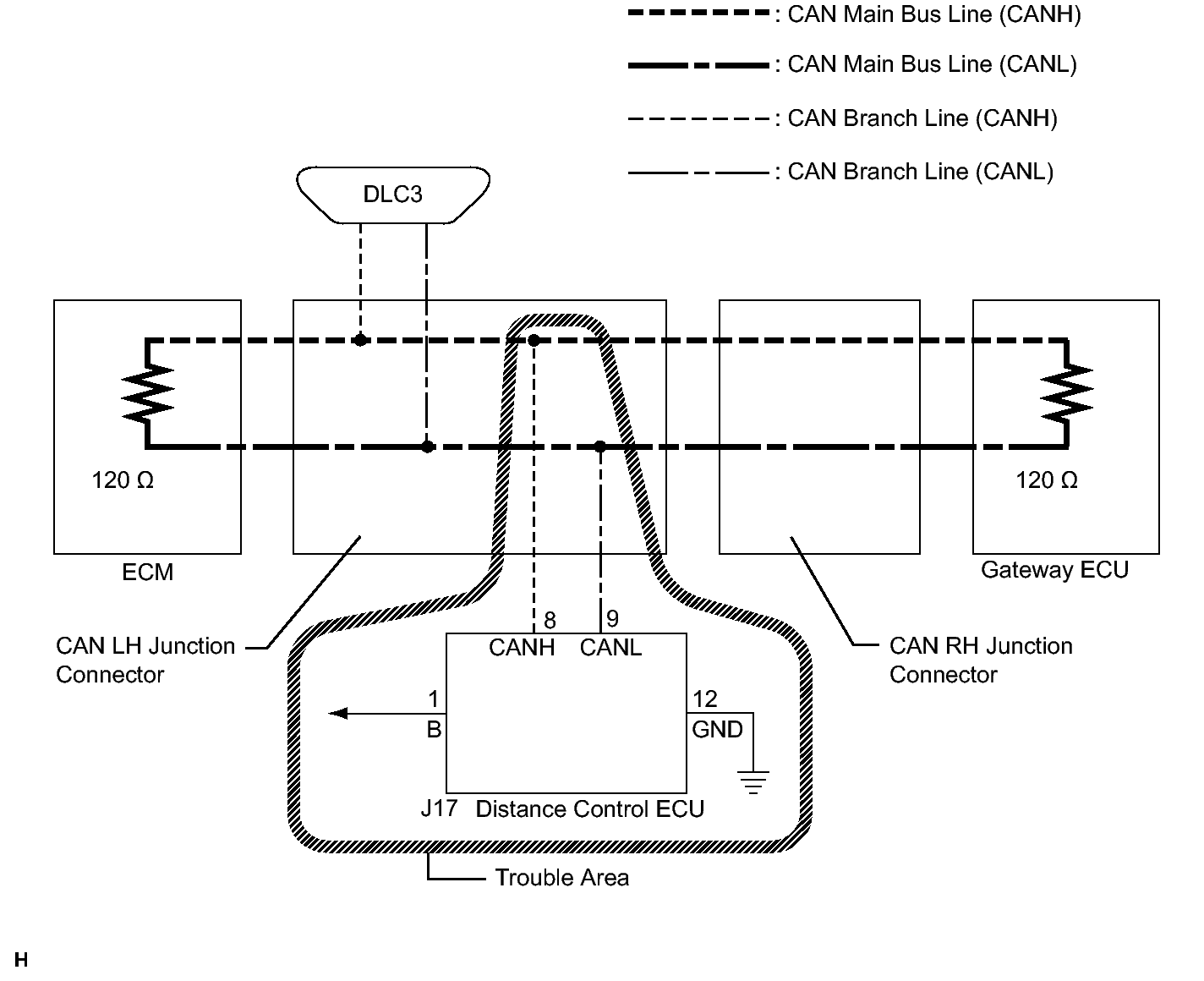

Fig 1: Distance Control ECU CAN Communication Lines
GTY253850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
