Customize Parameters

CUSTOMIZING FUNCTION WITH TECHSTREAM

HINT:

The items in the table below can be customized.

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current setting before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

HINT:

The following functions default settings are ON. Parts of these functions can be customized.

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menu: Customize Setting.

Select the setting by referring to the table below.

SMART KEY / ACCESS

Tester Display	Default	Content	Setting
Ignition Available Area	ALL	Function that switches the entry ignition detection area.	FRONT or ALL
Park Wait Time	2.5 s	Function that sets waiting time to permit opening the door after the door is locked with the entry lock function.	0.5 s, 1.5 s, 2.5 s or 5 s
Trunk Open Mode	ON	Function to permit opening the luggage compartment door.	ON or OFF
Key Low Battery Warning	ON	Function that warns the driver that the key battery is low.	ON or OFF

ENTRY UNLOCK MODE SWITCHING
NOTE:
Because the key (for card type) does not have a wireless transmitter function, it cannot be used to change the entry unlock mode.
1. To change the vehicle entry unlock mode, make sure that the vehicle power is off and simultaneously press and hold the key LOCK switch and another key switch for 5 seconds.
  - Driver door unlock default setting:
    When the switches are pressed and held for 5 seconds, the entry door unlock mode changes to the mode that is not currently selected.
  NOTE:
  After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
  - Driver door unlock mode:
    When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
  - All door unlock mode:
    When any touch sensor is touched, all doors unlock.
2. The certification ECU (smart key ECU assembly) receives this signal from the entry door control receiver and changes the smart access system with push-button start to the entry unlock mode.
3. The certification ECU (smart key ECU assembly) sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been changed.

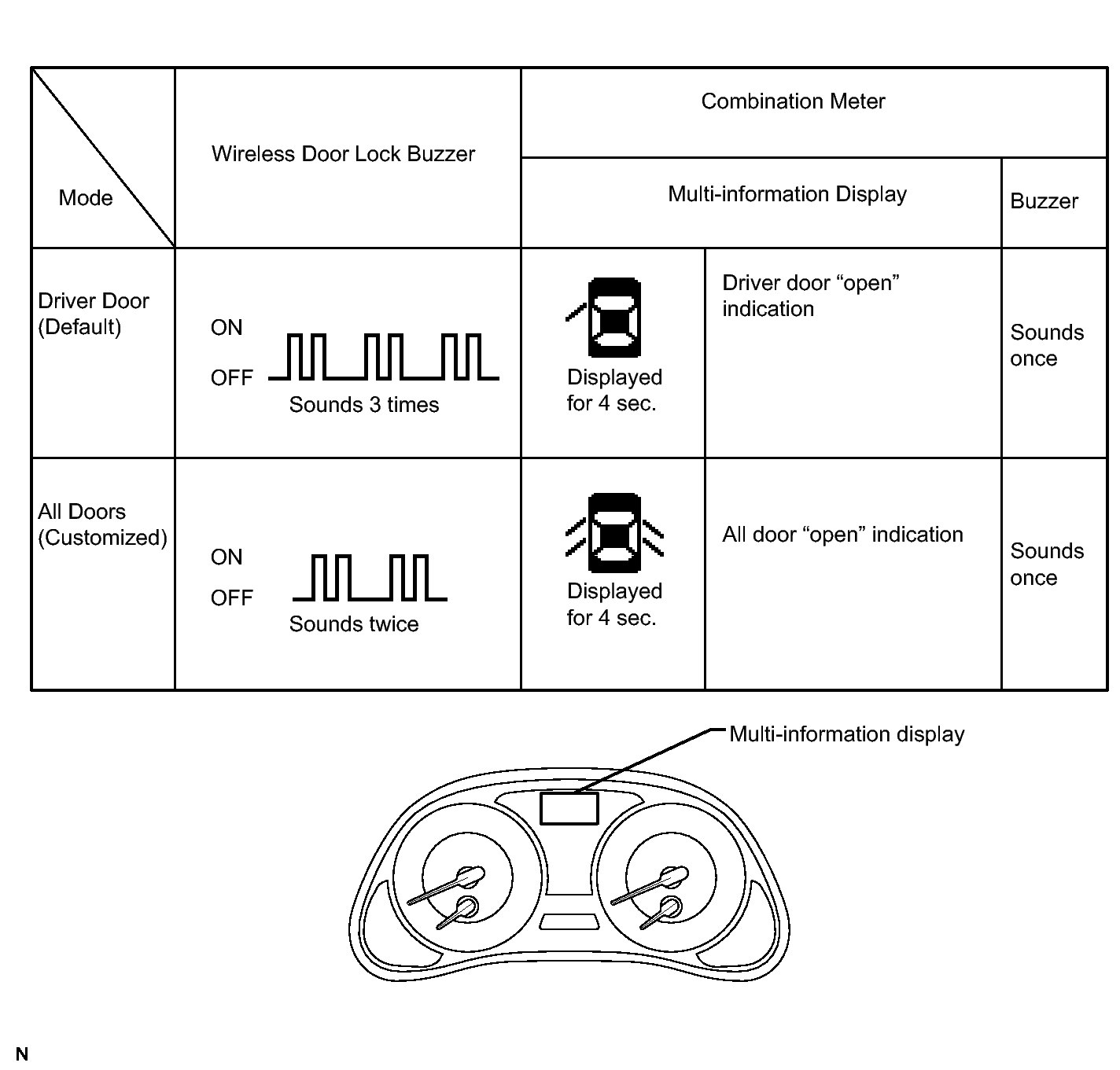

  Fig 1: Combination Meter Information Diagram
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The procedure only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control.
KEY CANCEL
NOTE:
Because the key (for card type) does not have a wireless transmitter function, it cannot be used to perform the key cancel operation.

The key cancel operation disables the following functions:
- Entry Unlock/Lock
- Entry Luggage Compartment Open
- Key Lock-in Prevention
- Warning
- Memory Call
1. The operation procedure is as follows:
  Precondition:

  Engine switch off, driver side door closed and unlocked
  1. Unlock the driver side door once with the UNLOCK switch of the key.
  2. Open the driver door within 5 seconds.
  3. Unlock the driver side door twice with the UNLOCK switch of the key within 5 seconds.
  4. Close and open the driver door twice within 30 seconds.
    (Driver door: Close → Open → Close → Open)
  5. Unlock the driver side door twice with the UNLOCK switch of the key within 5 seconds.
  6. Close and open the driver door within 30 seconds.
    (Driver door: Close → Open)
  7. Close the driver door within 5 seconds.
    When key cancel is activated, the wireless door lock buzzer sounds twice.

    To return to the original condition, perform the procedure again. When the original condition is returned, the wireless door lock buzzer sounds once.
